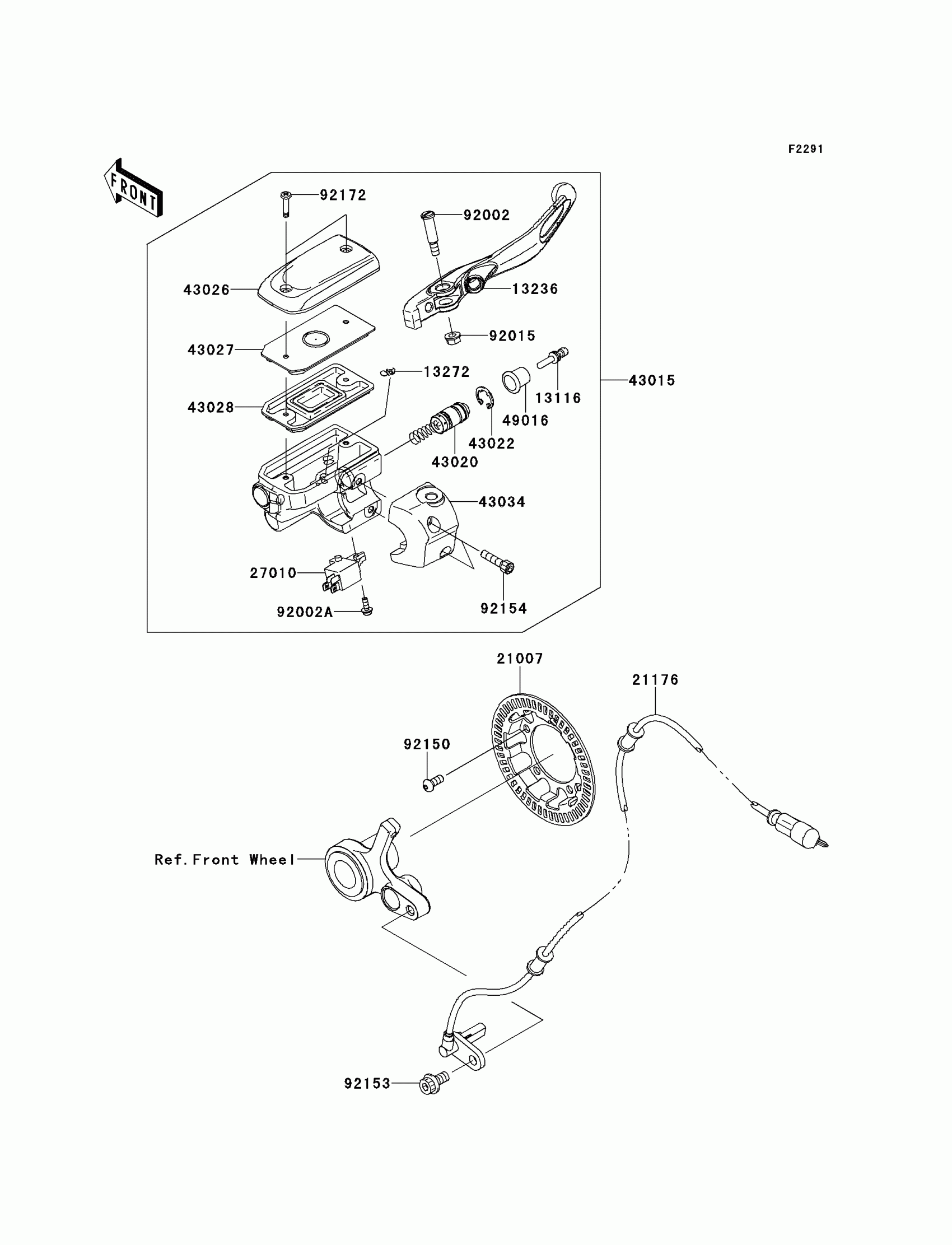

Kawasaki VULCAN® 1700 NOMAD™ ABS Front Master Cylinder Diagram

Description

Price

13116

ROD-PUSH

13116-0039

$23.16

13236

LEVER-COMP,FRONT BRAKE

13236-0166

$52.52

13272

PLATE

13272-0573

$7.60

21007

ROTOR,SPEED SENSOR

21007-0115

$43.39

21176

SENSOR,FR,SPEED

21176-0138

$153.19

27010

SWITCH,CRUISE CONTROL CANCEL

27010-1232

$50.19

43015

CYLINDER-ASSY-MASTER,FR

43015-0566

$410.95

43020

PISTON-COMP-BRAKE

43020-0014

$65.94

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-0053

$66.22

43027

PLATE-DIAPHRAGM

43027-0004

$8.39

43028

DIAPHRAGM

43028-0010

$26.43

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0041

$39.34

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92150

BOLT,SOCKET,6X14

92150-1836

$4.69

92153

BOLT,SOCKET,8X16

92153-0327

$6.28

92154

BOLT,SOCKET

92154-0167

$7.60

92172

SCREW,4MM

92172-0385

$3.71
