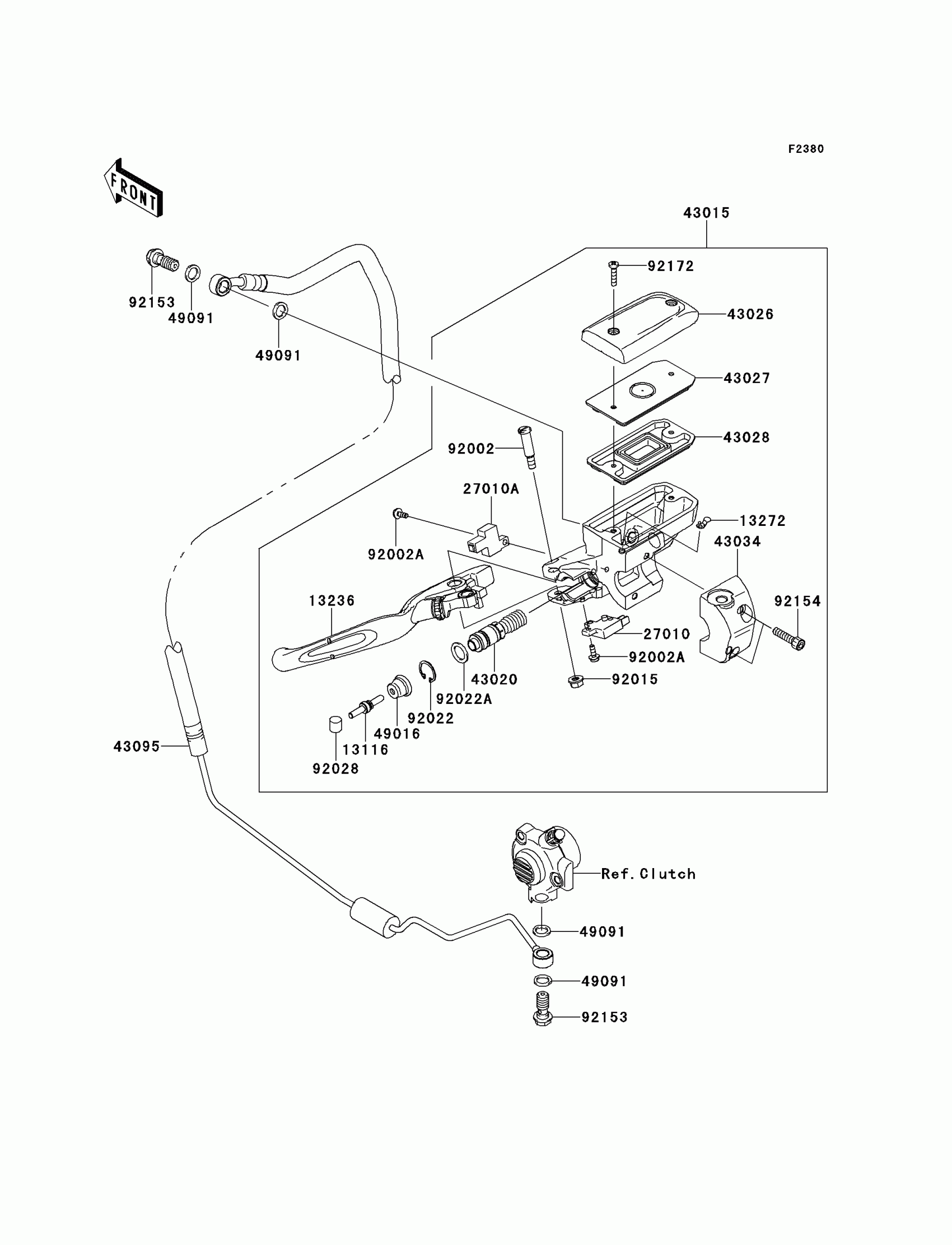

Kawasaki VULCAN® 1700 NOMAD™ ABS Clutch Master Cylinder Diagram

Description

Price

13116

ROD-PUSH

13116-0031

$23.02

13236

LEVER-COMP,CLUTCH

13236-0167

$52.52

13272

PLATE

13272-0573

$7.60

27010

SWITCH,CRUISE

27010-0102

$37.59

27010A

SWITCH,CLUTCH

27010-0103

$37.59

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-0567

$410.95

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

$65.22

43026

CAP-BRAKE

43026-0053

$66.22

43027

PLATE-DIAPHRAGM

43027-0004

$8.39

43028

DIAPHRAGM

43028-0010

$26.43

43034

HOLDER-BRAKE

43034-0040

$39.34

43095

HOSE-BRAKE,CLUTCH

43095-0546

$149.46

49016

COVER-SEAL

49016-0056

$9.74

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92022

CIRCLIP

92022-1605

$5.00

92022A

WASHER,PISTON

92022-1606

$4.69

92028

BUSHING,MASTER CYLINDER

92028-1310

$14.76

92153

BOLT,OIL,L=23

92153-0627

$5.48

92154

BOLT,SOCKET

92154-0167

$7.60

92172

SCREW,4MM

92172-0385

$3.71
