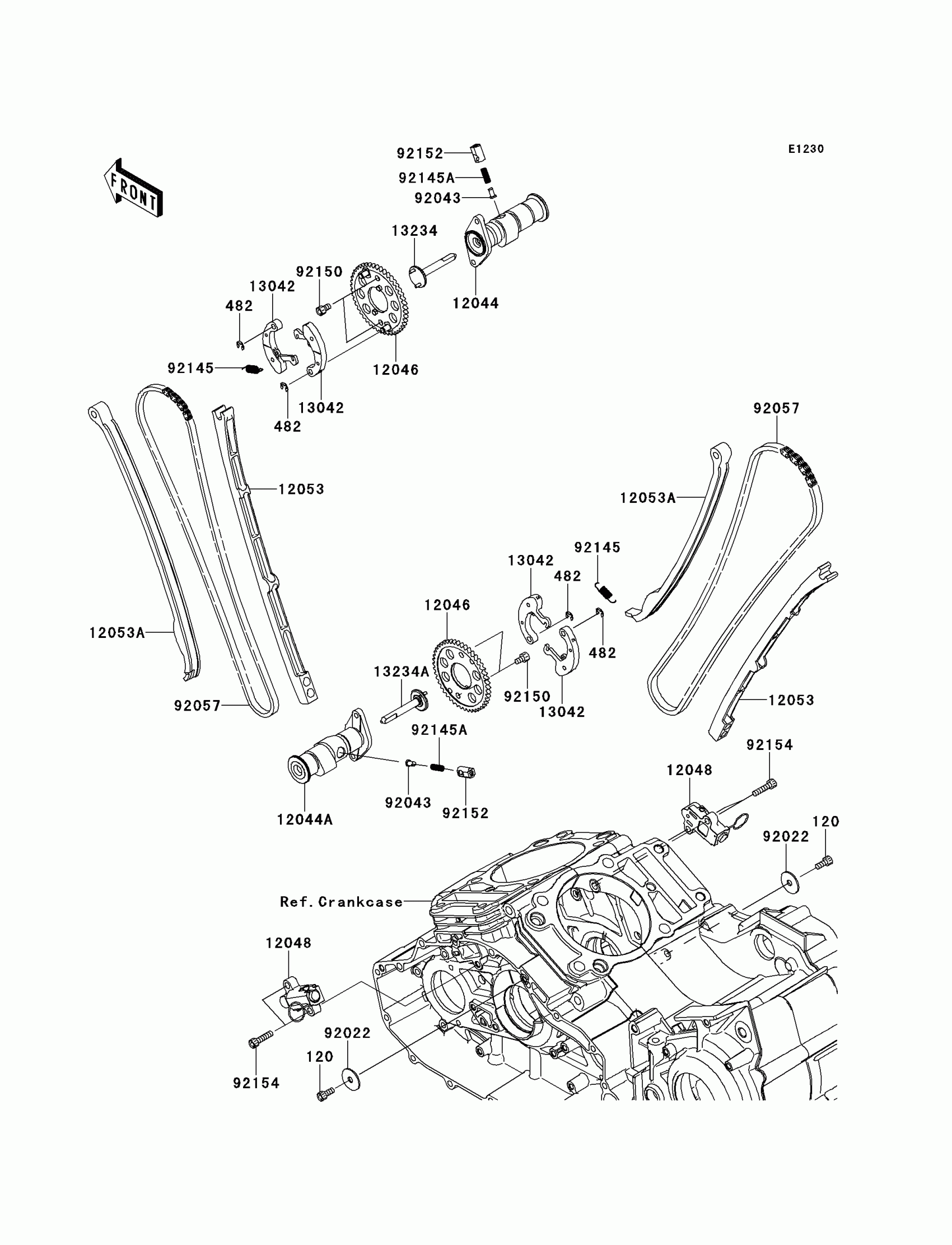

Kawasaki VULCAN® 1700 NOMAD™ ABS Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X14

120CA0614

$4.10

482

CIRCLIP-TYPE-E,5MM

482J5000

$3.41

12044

CAMSHAFT-VALVE,FR

12044-0134

$453.85

12044A

CAMSHAFT-VALVE,RR

12044-0135

$453.85

12046

SPROCKET,CAMSHAFT,46T

12046-0064

$75.42

12048

TENSIONER-ASSY,CAM CHAIN

12048-0053

$166.70

12053

GUIDE-CHAIN,FIXED SIDE

12053-0120

$34.79

12053A

GUIDE-CHAIN,TENSIONER SIDE

12053-0121

$112.03

13042

WEIGHT,DECOMP

13042-0028

$36.79

13234

SHAFT-COMP,FR CAMSHAFT

13234-0040

$45.48

13234A

SHAFT-COMP,RR CAMSHAFT

13234-0041

$45.48

92022

WASHER,7X27X1.6

92022-227

$4.69

92043

92043-0163

$8.44

92057

CHAIN,CAM,98XRH2010-146M

92057-0154

$109.03

92145

SPRING,8X0.4X20

92145-0586

$3.67

92145A

SPRING,5.9X0.4X16.5

92145-0589

$3.26

92150

BOLT,SOCKET,6X10

92150-1650

$4.31

92152

COLLAR

92152-0650
