2011 Kawasaki Vulcan® 1700 Classic Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2011 Kawasaki Vulcan® 1700 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

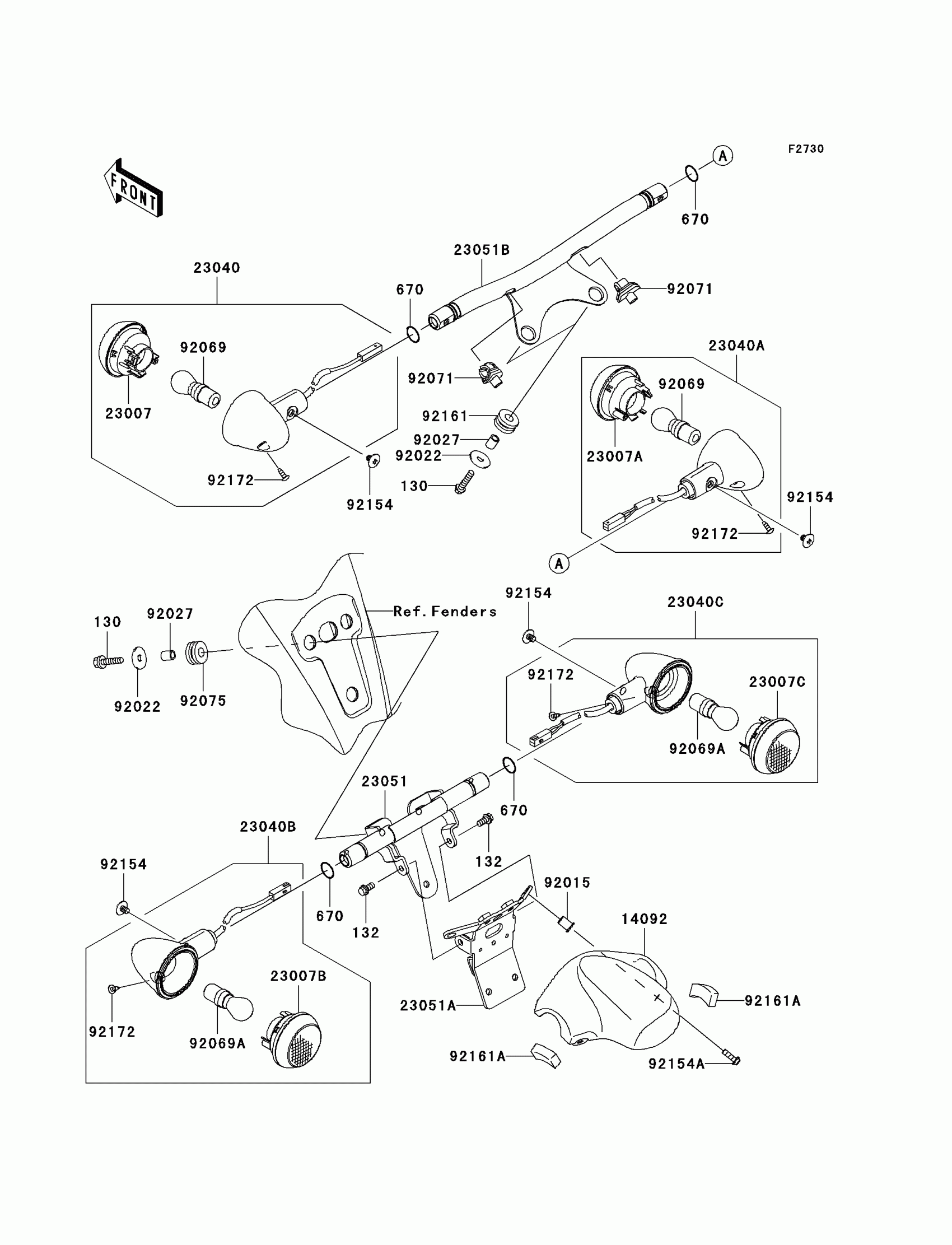

2011 Kawasaki Vulcan® 1700 Classic Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock

132

1

$1.73

In stock

670

O RING,16MM

670B2016

1

$1.20

In stock

14092

COVER,LICENSE LAMP

14092-0090

1

$57.77

In stock

23007

1

$35.12

In stock

23007A

1

$31.58

In stock

23007B

1

$35.12

In stock

23007C

1

$35.12

In stock

23040

LAMP-SIGNAL,FR,LH

23040-0083

1

$102.60

In stock

23040A

LAMP-SIGNAL,FR,RH

23040-0084

1

$102.60

In stock

23040B

LAMP-SIGNAL,RR,LH

23040-0089

1

$91.12

In stock

23040C

LAMP-SIGNAL,RR,RH

23040-0090

1

$102.60

In stock

23051

1

$114.63

In stock

23051A

BRACKET-SIGNAL LAMP

23051-0033

1

$59.97

In stock

23051B

1

$172.07

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92022

WASHER,7X24X1.6

92022-1160

1

$3.12

In stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,12V 21/5W

92069-063

1

$7.39

In stock

92069A

Not Available As Spare Part - Friction Washer

1
Out of stock

92071

GROMMET,SIGNAL LAMP

92071-0043

1

$4.81

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92154

BOLT,6X8

92154-0097

1

$1.71

In stock

92154A

BOLT,SOCKET,5X16

92154-0209

1

$2.25

In stock

92161

DAMPER

92161-0163

1

$4.59

In stock

92161A

DAMPER

92161-0841

1

$4.92

In stock

92172

SCREW,TAPPING,4X12

92172-0389

1

$3.12

In stock
