2012 Kawasaki Vulcan® 1700 Classic Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2012 Kawasaki Vulcan® 1700 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

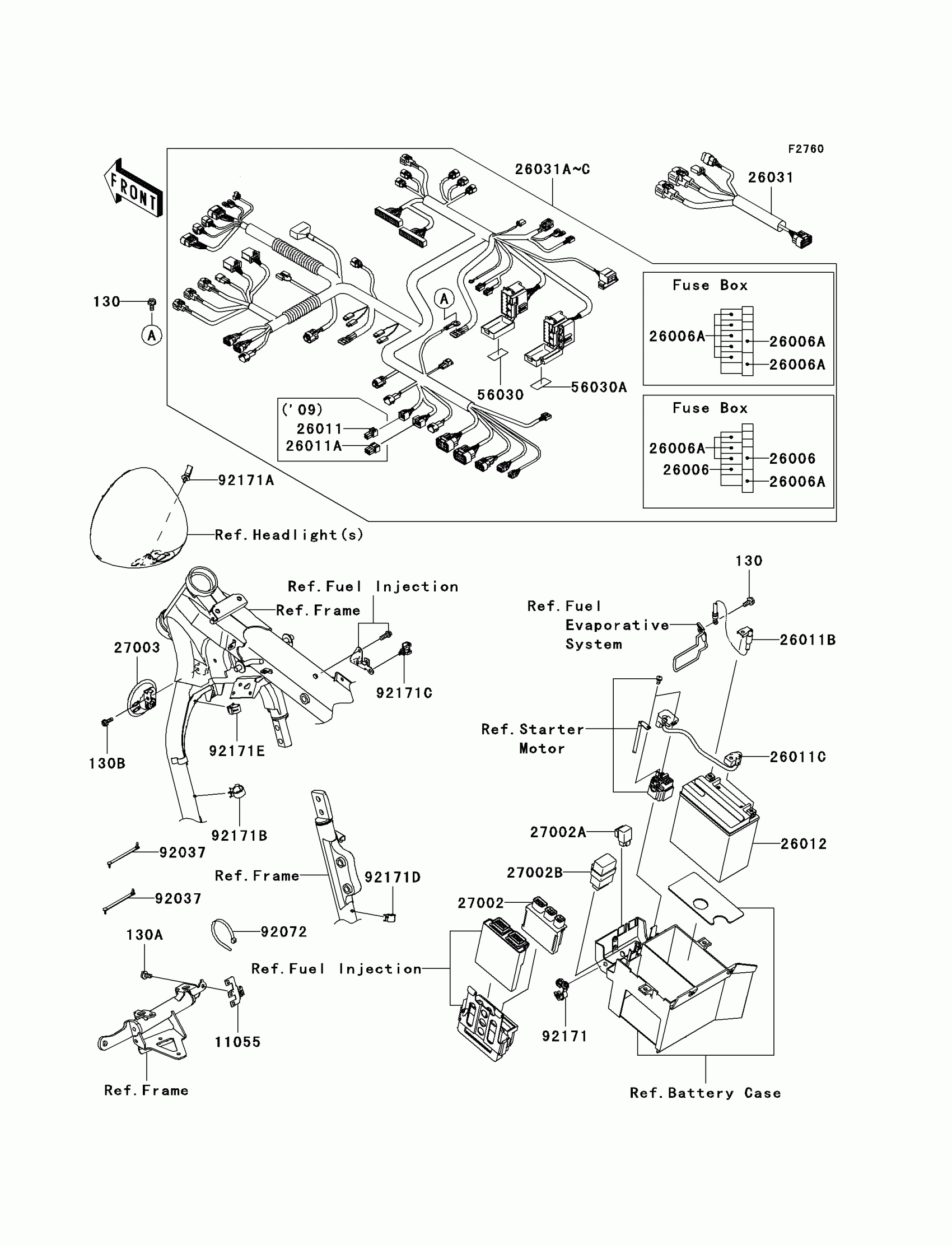

2012 Kawasaki Vulcan® 1700 Classic Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

130A

BOLT-FLANGED,6X12

130BB0612

1
Out of stock

130B

BOLT-FLANGED,6X18

130BB0618

1
Out of stock

11055

BRACKET,CONNECTOR

11055-0613

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-0180

1
Out of stock

26011C

WIRE-LEAD,BATTERY(+)

26011-0217

1
Out of stock

26012

BATTERY,MF,FTZ16-BS,12V 18AH

26012-1371

1
Out of stock

26031

HARNESS,RR,SUB

26031-0651

1
Out of stock

26031C

HARNESS,MAIN

26031-1157

1
Out of stock

27002

RELAY-ASSY

27002-0007

1
Out of stock

27002A

RELAY-ASSY

27002-1062

1
Out of stock

27002B

RELAY-ASSY,SIGNAL LAMP

27002-1113

1
Out of stock

27003

HORN

27003-0055

1
Out of stock

56030

LABEL,FUSE BOX

56030-0217

1
Out of stock

56030A

LABEL,FUSE BOX

56030-0291

1
Out of stock

92037

CLAMP,SPEED,L=80.5

92037-1903

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92171

CLAMP,CLIP,DIA=20

92171-0068

1
Out of stock

92171A

CLAMP,20MM DIA.

92171-0069

1
Out of stock

92171B

CLAMP,20MM DIA.

92171-0081

1
Out of stock

92171C

CLAMP,13MM DIA.

92171-1415

1
Out of stock

92171D

CLAMP,10MM DIA.

92171-1423

1
Out of stock

92171E

CLAMP,DIA=15

92171-1424

1
Out of stock
