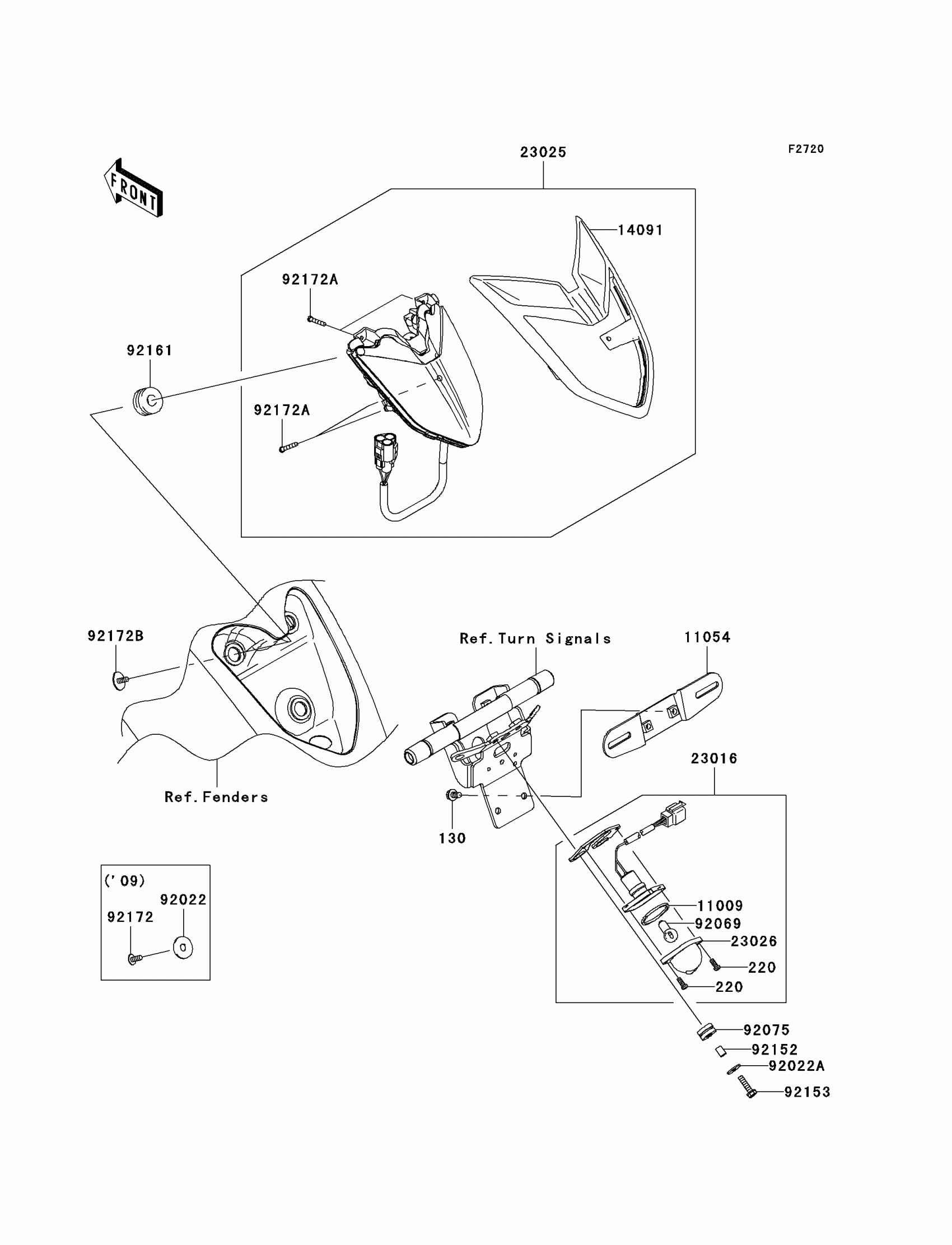

Kawasaki VULCAN® 1700 CLASSIC Taillight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BB0612

$2.34

220

SCREW-PAN-CROS,4X10

220AA0410

$2.46

11009

GASKET,LICENSE PLATE LAMP

11009-1372

$4.65

11054

BRACKET,LICENSE

11054-1761

$19.58

14091

COVER,TAIL LAMP

14091-1592

$159.08

23016

LAMP-ASSY,LICENSE

23016-0032

$83.98

23025

LAMP-TAIL

23025-0052

$479.85

23026

LENS,LAMP

23026-1054

$9.28

92022A

WASHER,6.5X20X1.6

92022-1557

$1.40

92069

BULB,12V 5W

92069-1055

$5.18

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92152

COLLAR,6.8X10X13

92152-0580

$3.90

92153

BOLT,FLANGED,6X25

92153-0514

$2.12

92161

DAMPER

92161-0163

$5.79

92172A

SCREW,TAPPING,4X16

92172-0392

$3.52

92172B

SCREW,TAPPING+PW,5X14

92172-0477

$7.43
