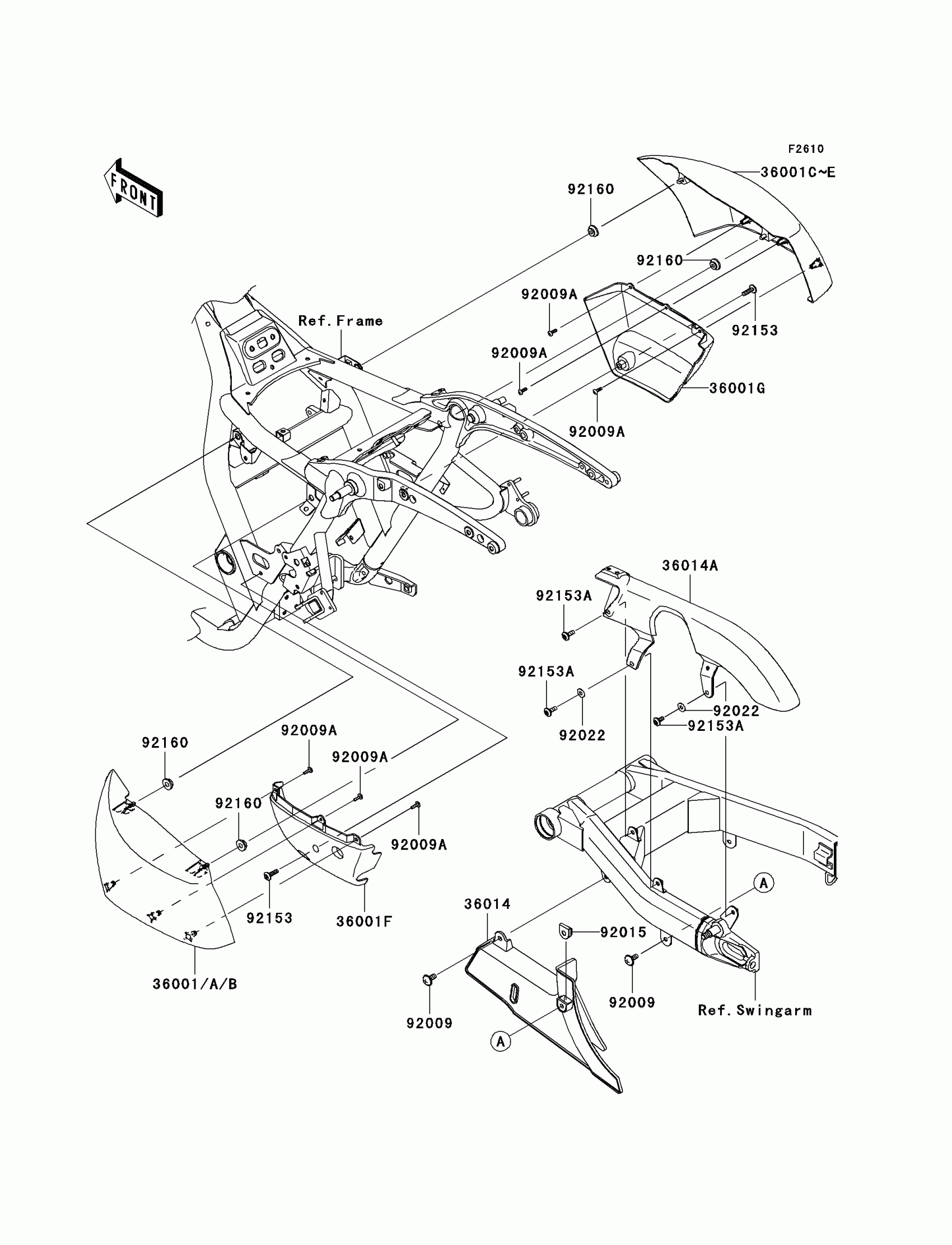

Kawasaki VULCAN® 1700 CLASSIC Side Covers/Chain Cover Diagram

Description

Price

36001

COVER-SIDE,LH,UPP,EBONY

36001-0157-H8

$243.62

36001C

COVER-SIDE,RH,UPP,EBONY

36001-0158-H8

$243.62

36001F

COVER-SIDE,LH,LWR

36001-0202

$91.47

36001G

COVER-SIDE,RH,LWR

36001-0203

$91.47

36014

CASE-CHAIN

36014-0042

$45.93

36014A

CASE-CHAIN,UPP

36014-0061

$145.00

92009

SCREW,6X14

92009-1555

$2.69

92009A

SCREW,TAPPING,4X14

92009-1792

$1.62

92015

NUT,CLIP,6MM

92015-1904

$4.93

92022

WASHER,6.5X16X1.0

92022-1654

$2.76

92153

BOLT,SOCKET,6X22

92153-0574

$1.85

92153A

BOLT,6X18

92153-0816

$1.57

92160

DAMPER

92160-1613

$2.84
