2012 Kawasaki Vulcan® 1700 Classic Chain Cover Diagram

← All diagrams

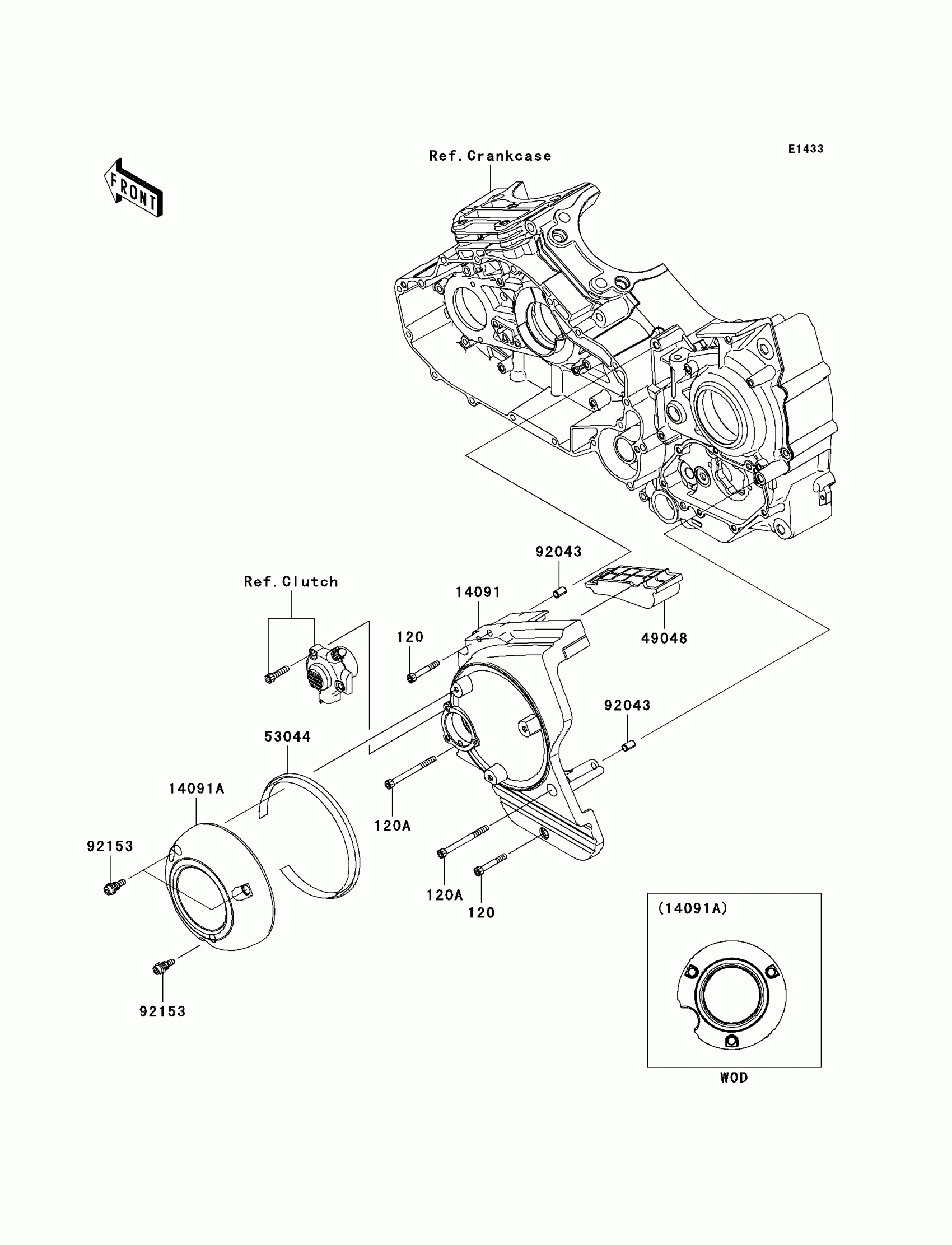

Find the part on the Chain Cover diagram for your 2012 Kawasaki Vulcan® 1700 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Classic Chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X40

120CC0640

1
Out of stock

120A

BOLT-SOCKET,6X70

120CC0670

1
Out of stock

14091

COVER,PULLEY

14091-0970

1
Out of stock

14091A

COVER,PULLEY,OUTER

14091-0994

1
Out of stock

49048

SHOE

49048-0002

1
Out of stock

53044

TRIM,ISOLATOR

53044-0047

1

$21.95

In stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92153

BOLT,SOCKET,6X22

92153-1331

1
Out of stock
