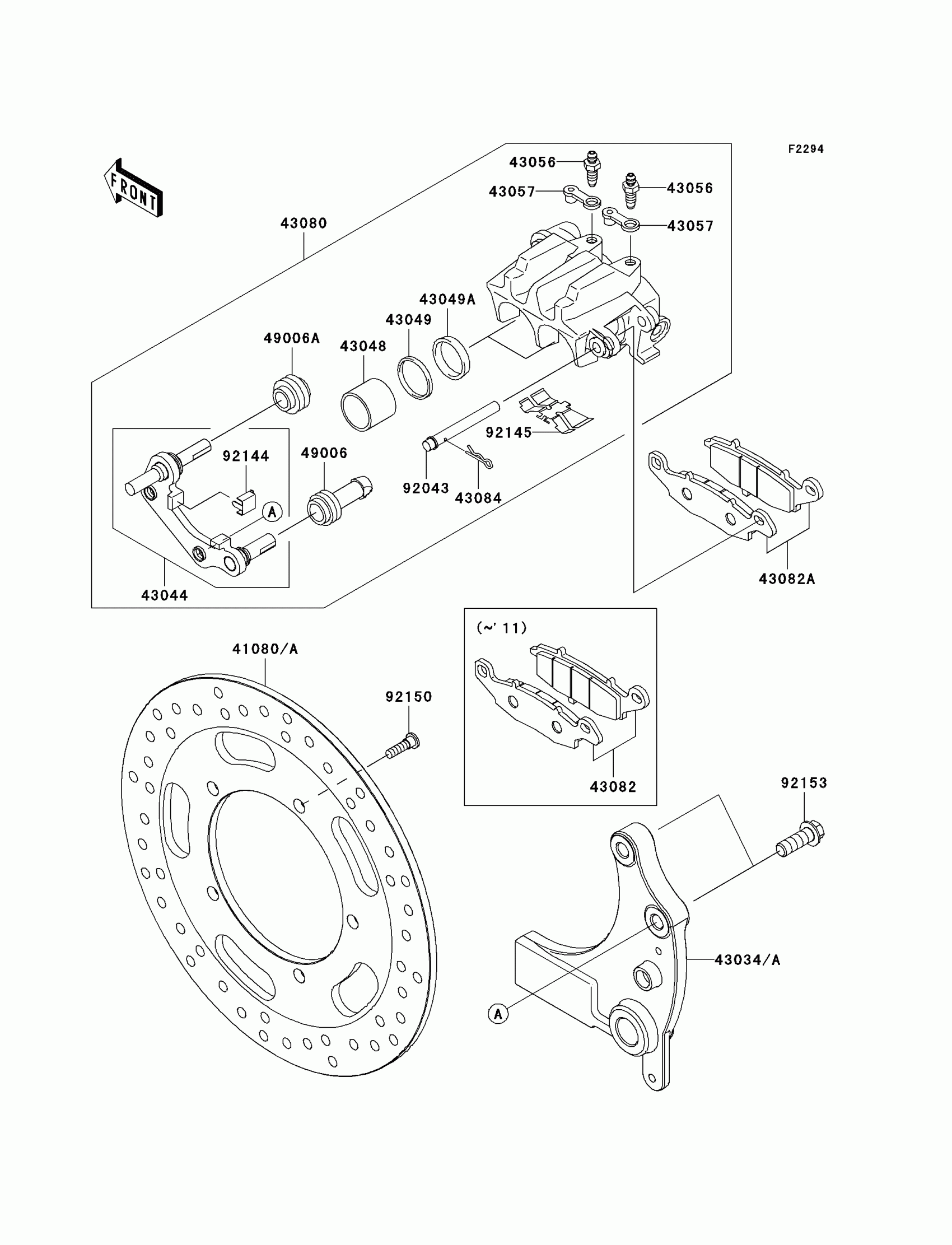

Kawasaki VULCAN® 1700 CLASSIC Rear Brake Diagram

Description

Price

41080A

DISC,RR,BLACK

41080-0157-11H

$379.23

43034A

HOLDER-BRAKE,REAR CALIPER,BLK

43034-0031-499

$189.90

43044

HOLDER-COMP-CALIPER,RR

43044-1134

$179.57

43048

PISTON-CALIPER

43048-1094

$60.55

43049

PACKING

43049-1068

$7.48

43049A

PACKING,PISTON SEAL

43049-1092

$7.91

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43080

CALIPER-SUB-ASSY,RR,SILVER

43080-5098-GN

$417.78

43082A

PAD-ASSY-BRAKE

43082-0124

$69.87

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1094

$9.30

49006A

BOOT,CALIPER

49006-1095

$5.55

92043

PIN,PAD

92043-1640

$4.78

92144

SPRING,STOPPER

92144-1831

$4.14

92145

SPRING,PAD

92145-1382

$12.32

92150

BOLT,SOCKET,8X30

92150-1771

$3.57

92153

BOLT,FLANGED,10X28

92153-1987

$2.28
