2012 Kawasaki Vulcan® 1700 Classic Front Brake Diagram

← All diagrams

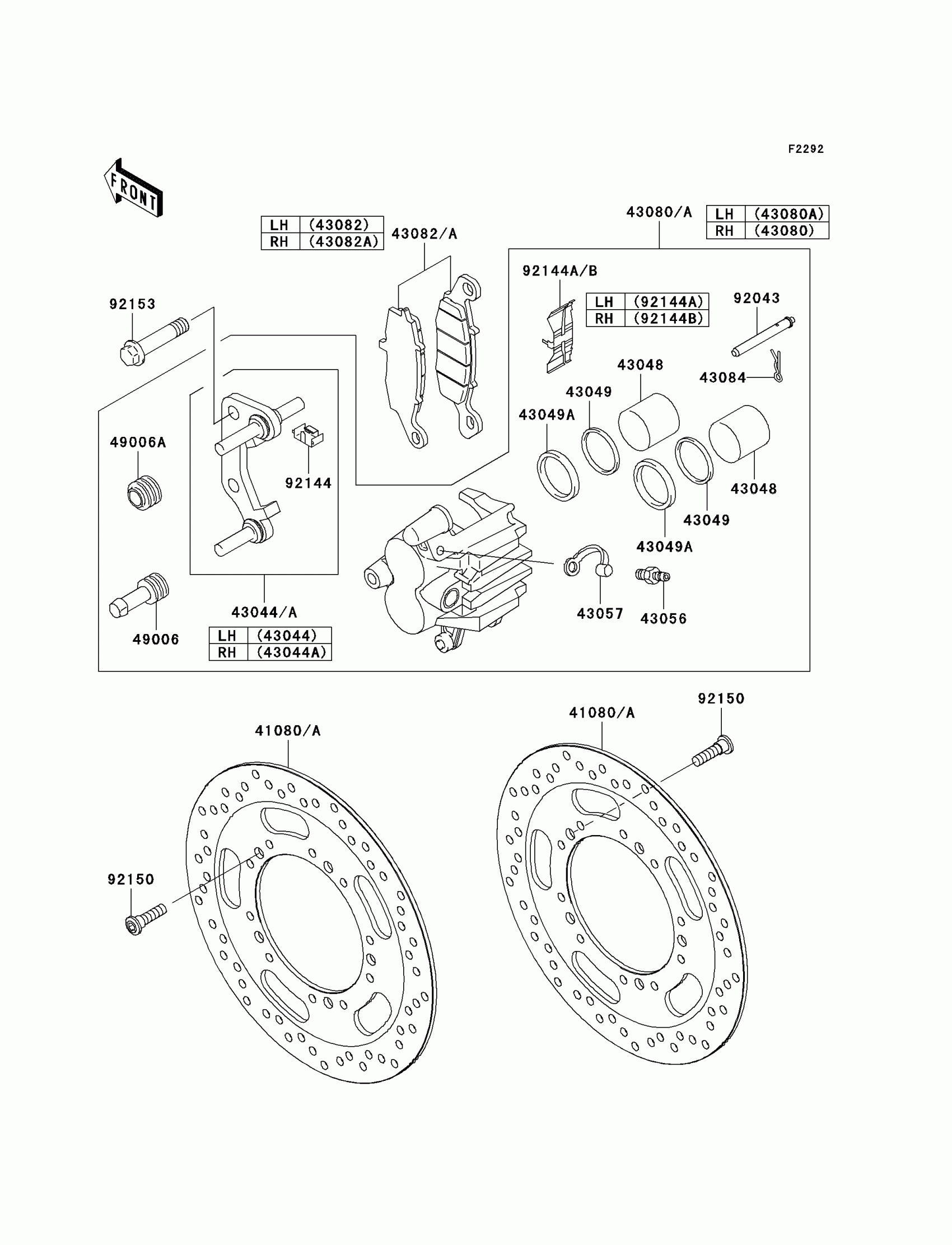

Find the part on the Front Brake diagram for your 2012 Kawasaki Vulcan® 1700 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Classic Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080A

DISC,FR,BLACK

41080-0181-11H

1
Out of stock

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1115

1
Out of stock

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1116

1
Out of stock

43048

PISTON-CALIPER

43048-1073

1
Out of stock

43049

PACKING

43049-1068

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1092

1
Out of stock

43056

BREATHER-BRAKE

43056-1054

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,RH,SILVER

43080-5015-GN

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,LH,SILVER

43080-5017-GN

1
Out of stock

43082

PAD-ASSY-BRAKE,LH

43082-0061

1
Out of stock

43082A

PAD-ASSY-BRAKE,RH

43082-0062

1
Out of stock

43084

CLAMP,PAD

43084-003

1
Out of stock

49006

BOOT,CALIPER

49006-1054

1
Out of stock

49006A

BOOT,CALIPER

49006-1095

1
Out of stock

92043

PIN,PAD

92043-1489

1
Out of stock

92144

SPRING,STOPPER

92144-1831

1
Out of stock

92144A

SPRING,PAD,LH

92144-1832

1
Out of stock

92144B

SPRING,PAD,RH

92144-1844

1
Out of stock

92150

BOLT,SOCKET,8X30

92150-1771

1
Out of stock

92153

BOLT,FLANGED,10X47

92153-0740

1
Out of stock
