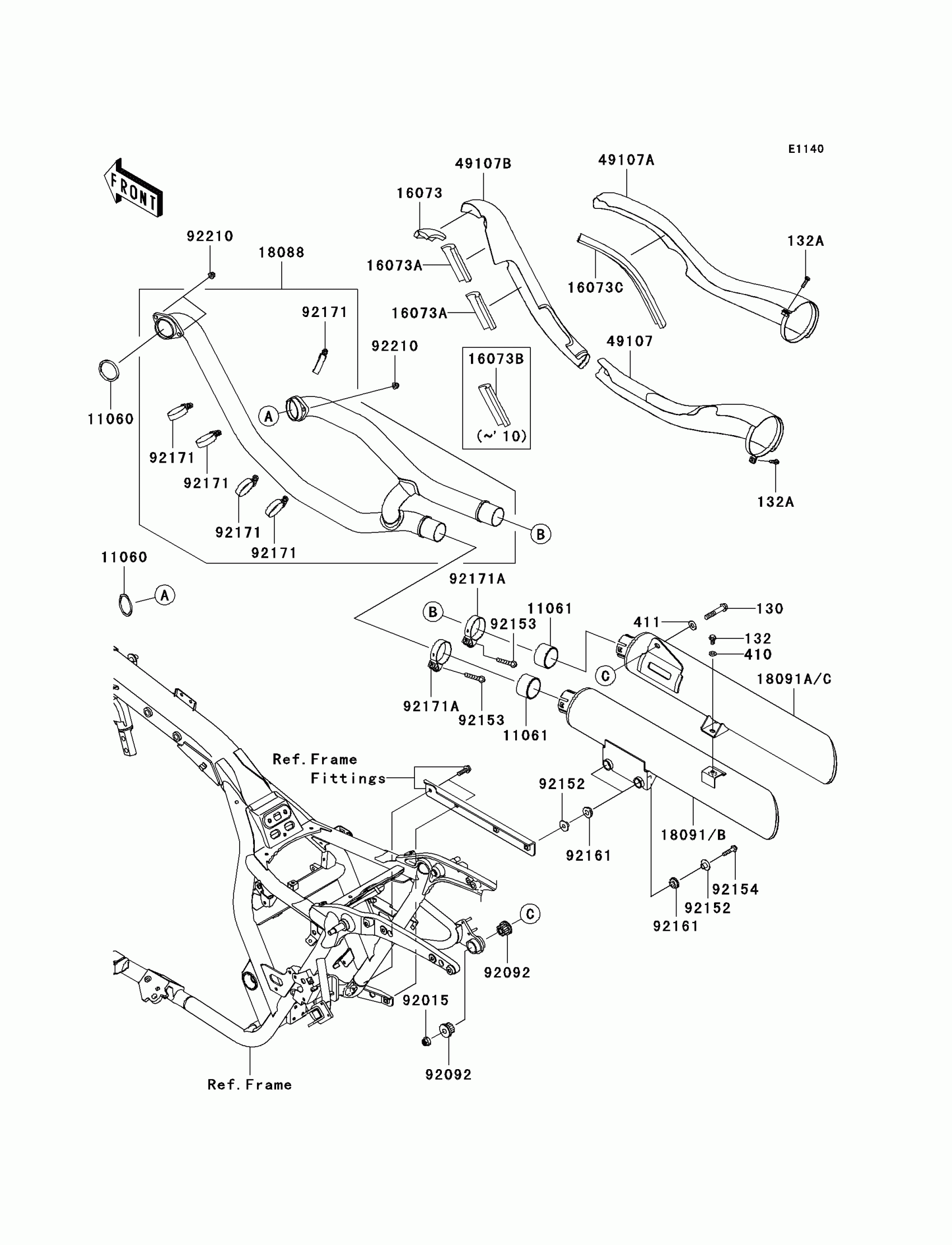

Find the part on the Muffler diagram for your 2012 Kawasaki Vulcan® 1700 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Classic Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,10X55

130BB1055

1

$5.28

In stock

132

1

$2.20

In stock

132A

1

$0.94

In stock

410

WASHER-PLAIN-SMALL,8MM,BLACK

410AB0800

1
Out of stock

411

WASHER-PLAIN,10MM,BLACK

411AB1000

1
Out of stock

11060

GASKET,EXHAUST PIPE

11060-1119

1
Out of stock

11061

GASKET,MUFFLER CONNECTING

11061-0240

1
Out of stock

16073

INSULATOR

16073-0125

1
Out of stock

16073A

INSULATOR

16073-0126

1
Out of stock

16073C

INSULATOR

16073-0128

1
Out of stock

18088

PIPE-EXHAUST

18088-0456

1
Out of stock

18091B

BODY-COMP-MUFFLER,LWR

18091-0837

1
Out of stock

18091C

BODY-COMP-MUFFLER,UPP

18091-0838

1
Out of stock

49107

COVER-EXHAUST PIPE,FR-R

49107-0164

1
Out of stock

49107A

COVER-EXHAUST PIPE,RR

49107-0165

1
Out of stock

49107B

COVER-EXHAUST PIPE,FR-F

49107-0174

1
Out of stock

92015

NUT,FLANGED,10MM

92015-077

1
Out of stock

92092

BUSHING-RUBBER,MUFFLER

92092-1013

1
Out of stock

92152

COLLAR,8.8X12X10.6

92152-0082

1
Out of stock

92153

BOLT,8X45

92153-0702

1
Out of stock

92154

BOLT,FLANGED,8X32

92154-0136

1
Out of stock

92161

DAMPER

92161-0135

1
Out of stock

92171

CLAMP

92171-0072

1

$9.42

In stock

92171A

CLAMP

92171-0358

1

$25.08

In stock

92210

NUT,CAP,8MM

92210-1132

1
Out of stock
