2012 Kawasaki Vulcan® 1700 Classic Left Engine Cover Diagram

← All diagrams

Find the part on the Left Engine Cover diagram for your 2012 Kawasaki Vulcan® 1700 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

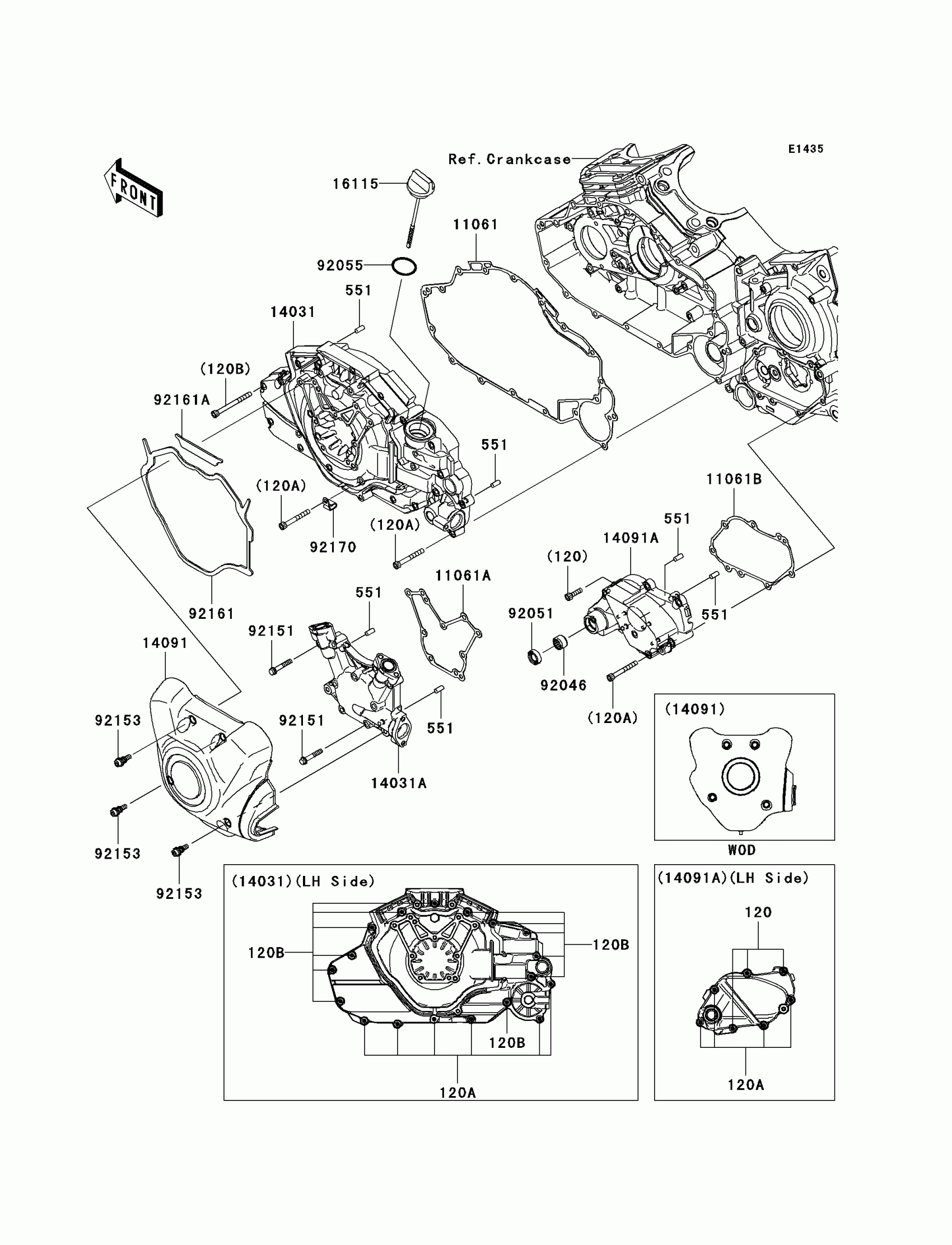

2012 Kawasaki Vulcan® 1700 Classic Left Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X22

120CC0622

1
Out of stock

120A

BOLT-SOCKET,6X50

120CC0650

1
Out of stock

120B

BOLT-SOCKET,6X70

120CC0670

1
Out of stock

551

PIN-DOWEL,6X14

551A0614

1
Out of stock

11061

GASKET,GENERATOR COVER,IN

11061-0338

1
Out of stock

11061A

GASKET,GENERATOR COVER,MID

11061-0339

1
Out of stock

11061B

GASKET,CHANGE COVER

11061-0340

1
Out of stock

14031

1

$322.38

In stock

14031A

1

$120.78

In stock

14091

COVER,GENERATOR,OUTER

14091-1690

1
Out of stock

14091A

COVER,CHANGE

14091-1807

1
Out of stock

16115

CAP-OIL FILLER

16115-0019

1
Out of stock

92046

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92151

BOLT,6X35

92151-1624

1
Out of stock

92153

BOLT,SOCKET,6X22

92153-1331

1
Out of stock

92161

DAMPER

92161-0668

1
Out of stock

92161A

DAMPER

92161-0672

1
Out of stock

92170

CLAMP

92170-1577

1

$3.03

In stock
