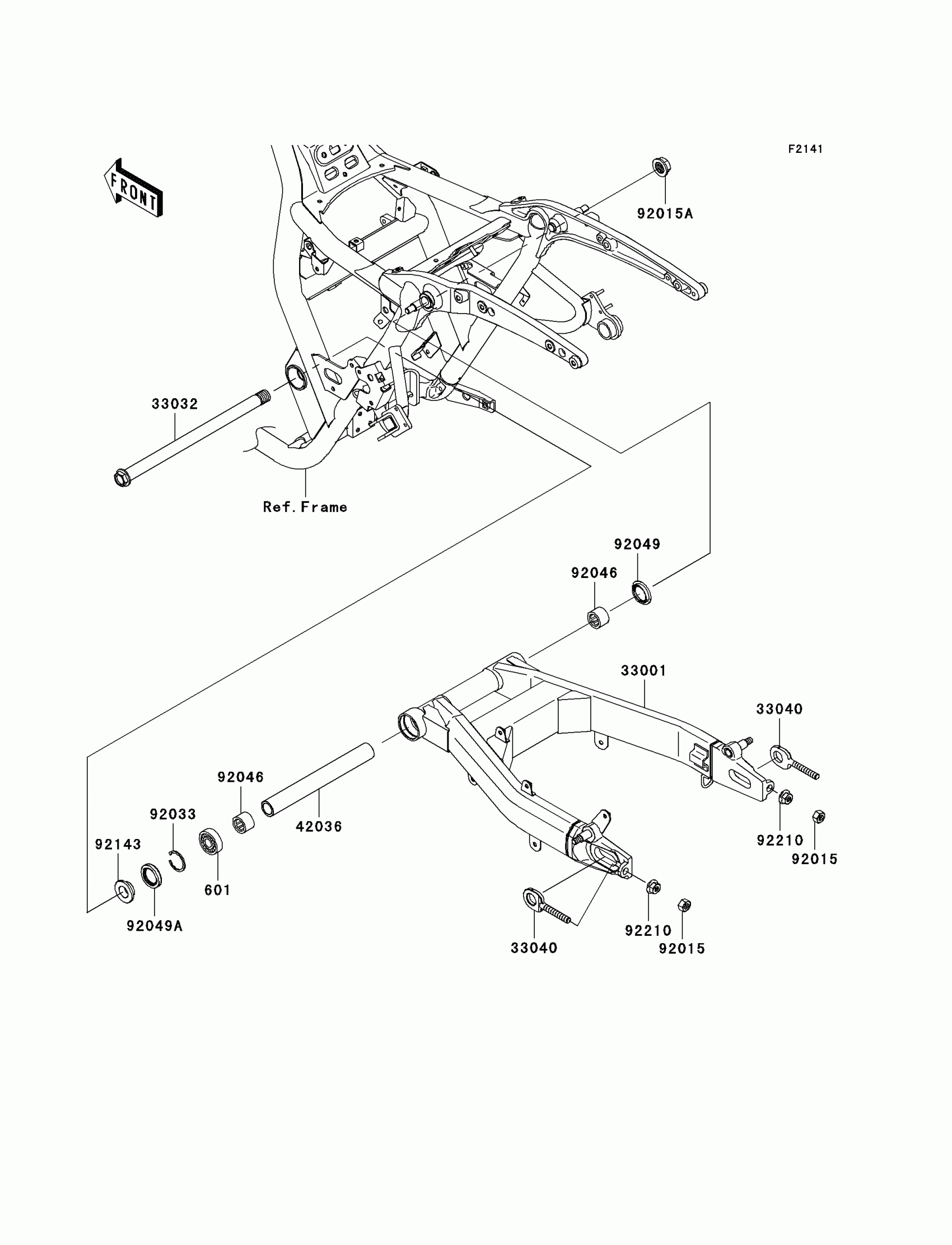

Find the part on the Swingarm diagram for your 2010 Kawasaki Vulcan® 1700 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 1700 Classic LT Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

BEARING-BALL,#6004

601A6004

1
Out of stock

33001

ARM-COMP-SWING,F.S.BLACK

33001-0210-18R

1
Out of stock

33032

SHAFT-SWING ARM

33032-0031

1
Out of stock

33040

ADJUSTER-CHAIN

33040-0005

1
Out of stock

42036

SLEEVE,SWING ARM,L=235.5

42036-0059

1
Out of stock

92015

NUT,LOCK,10MM

92015-1494

1
Out of stock

92015A

NUT,FLANGED,20MM

92015-1724

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92046

BEARING-NEEDLE,BM2824

92046-1202

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,TC28426.5

92049-1185

1
Out of stock

92143

COLLAR,SWING ARM,RH,L=12.5

92143-1727

1
Out of stock

92210

NUT,FLANGED,10MM

92210-0349

1
Out of stock
