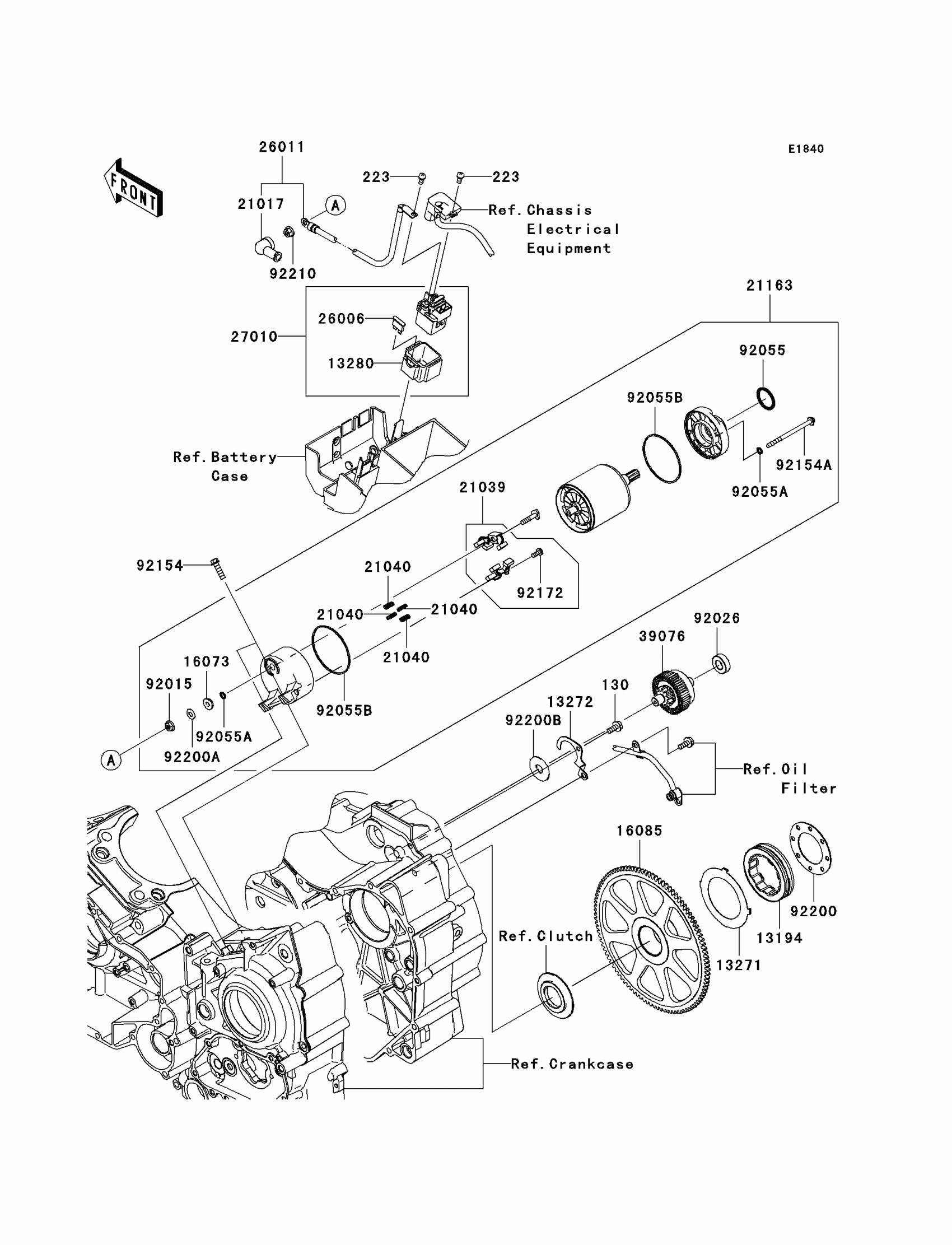

Kawasaki Vulcan® 1700 Classic LT Starter Motor Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BA0614

$0.97

223

SCREW-PAN-WS-CROS,5X10

223AA0510

$0.46

13194

CLUTCH-ONEWAY

13194-0001

$162.23

13271

PLATE

13271-0037

$11.73

13272

PLATE,LIMITER

13272-0673

$4.66

13280

HOLDER

13280-1263

$13.05

16073

INSULATOR

16073-0053

$11.42

16085

GEAR,FREE WHEEL

16085-0121

$179.01

21017

GROMMET,STARTER TERMINAL

21017-017

$7.18

21039

BRUSH

21039-0009

$43.42

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0055

$885.05

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26011

WIRE-LEAD

26011-0239

$57.78

27010

SWITCH,MAGNETIC

27010-1446

$130.78

39076

LIMITER,STARTER IDLE GEAR

39076-0017

$246.89

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92026

SPACER,12.3X25X8.1

92026-0127

$7.47

92055

RING-O

92055-1276

$7.54

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O,STARTER MOTOR

92055-1381

$9.58

92154

BOLT,FLANGED-SMALL,6X22

92154-0198

$1.78

92154A

BOLT

92154-0265

$7.15

92172

SCREW

92172-0334

$4.14

92200

WASHER,44X73.5X1.2

92200-0019

$5.08

92200A

WASHER

92200-0386

$4.14

92200B

WASHER,12X34X1.6

92200-0478

$3.27

92210

NUT,6MM

92210-0188

$1.81
