2010 Kawasaki Vulcan® 1700 Classic LT Reflectors Diagram

← All diagrams

Find the part on the Reflectors diagram for your 2010 Kawasaki Vulcan® 1700 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

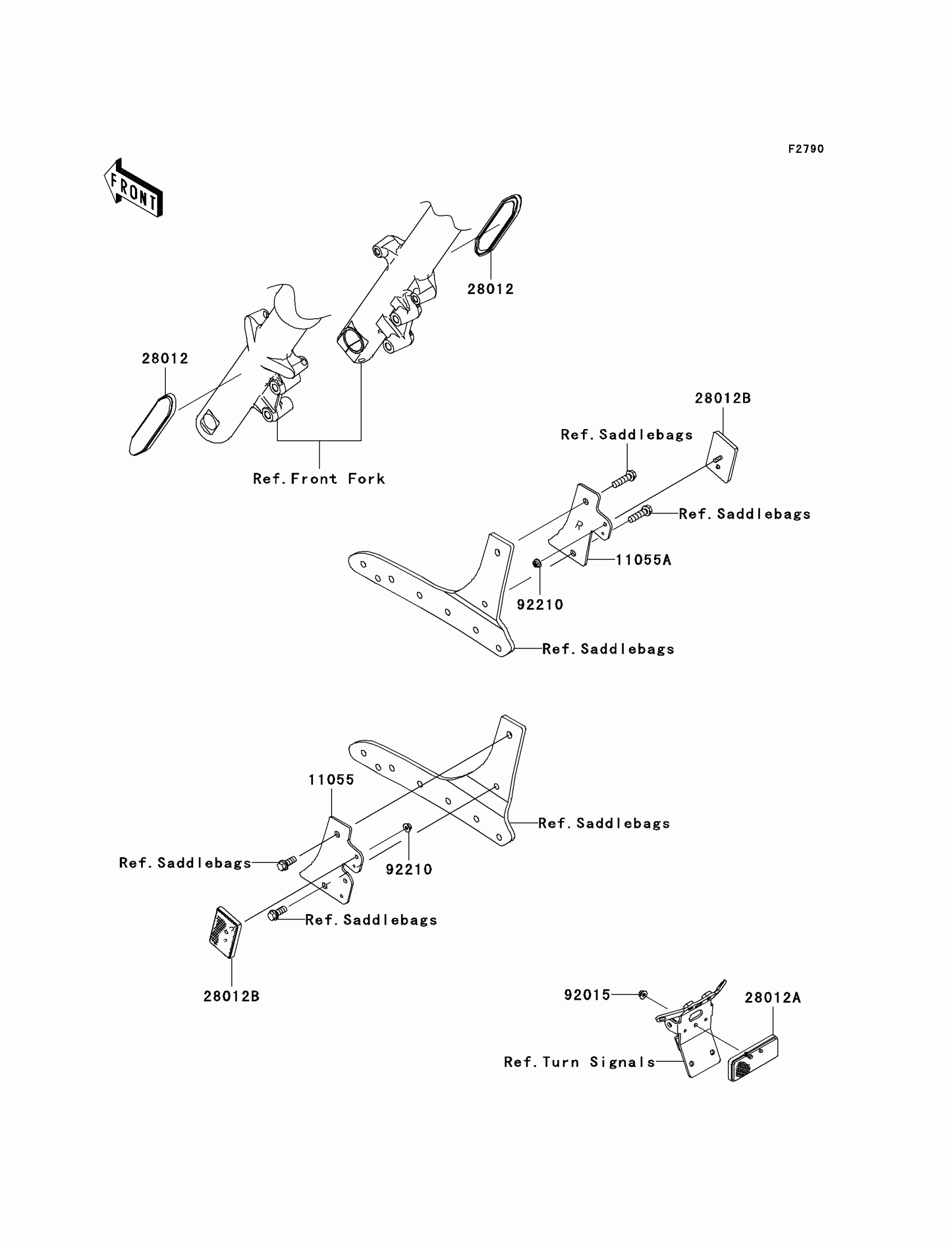

2010 Kawasaki Vulcan® 1700 Classic LT Reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

1

$66.08

In stock

11055A

1

$66.08

In stock

28012

REFLECTOR-REFLEX

28012-0019

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-1077

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1088

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1656

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
