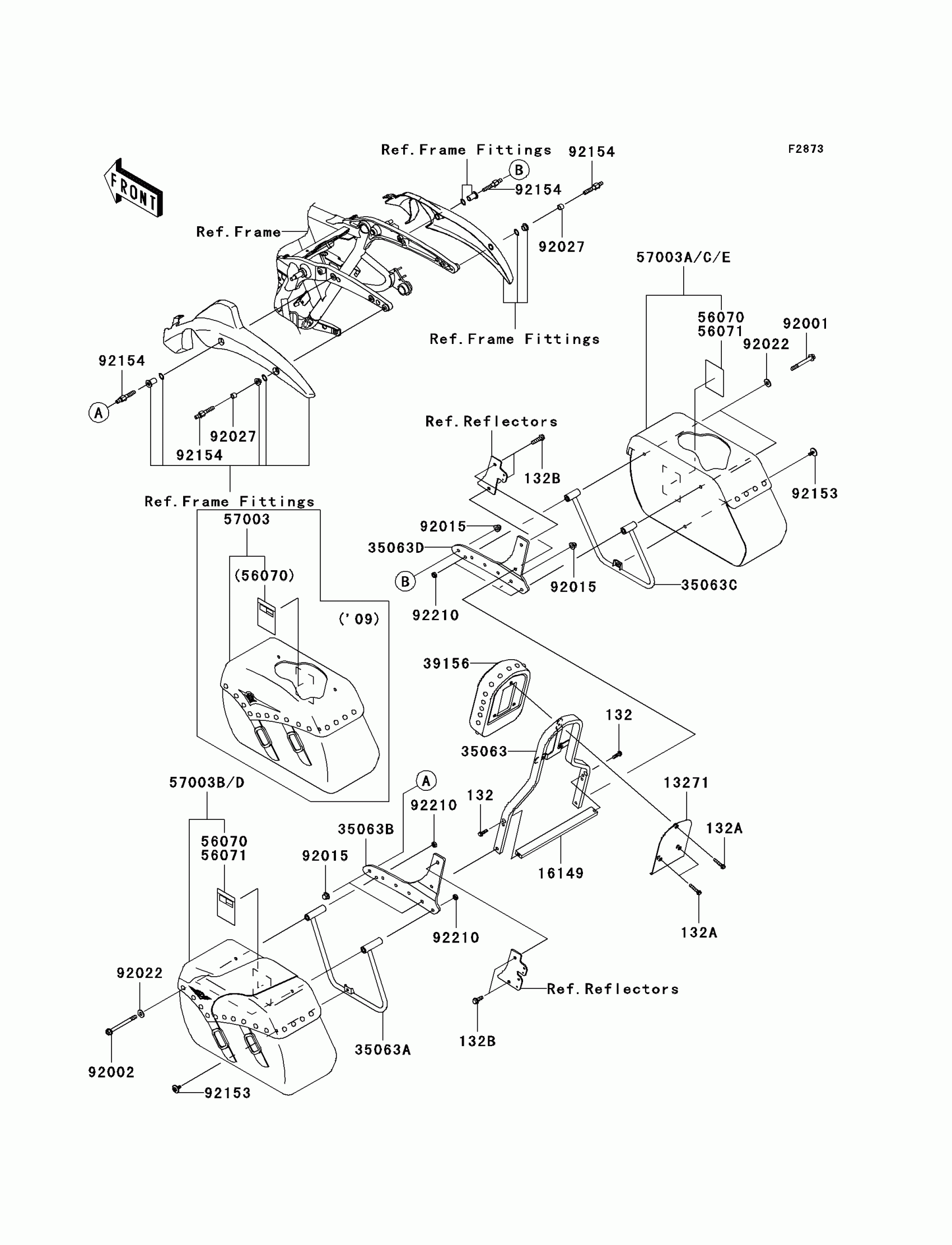

Kawasaki Vulcan® 1700 Classic LT Saddlebags Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.99

132A

BOLT-FLANGED-SMALL,6X30

132E0630

$6.22

132B

BOLT-FLANGED-SMALL,8X20

132E0820

$4.69

13271

PLATE,BACKREST

13271-0728

Unavailable

16149

BAR

16149-0032

$128.28

35063

STAY,BACKREST

35063-0346

$226.44

35063A

STAY,SIDE BAG,LH

35063-0575

$95.30

35063B

STAY,BACKREST,LH

35063-0576

$119.26

35063C

STAY,SIDE BAG,RH

35063-0577

$95.30

35063D

STAY,BACKREST,RH

35063-0578

$119.26

39156

PAD,SISSY BAR,BLACK,W/RIVET

39156-0118-MA

$129.59

56070

LABEL-WARNING,SADDLEBAG

56070-0076

$8.23

92001

BOLT,8X67

92001-1928

$9.87

92002

BOLT,FLANGED,8X90

92002-1849

$7.93

92015

NUT,CAP,8MM

92015-1151

$5.00

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92027

COLLAR,8.8X12X9

92027-1568

$1.66

92153

BOLT,6X16

92153-0684

$4.49

92154

BOLT,8MM

92154-0104

$11.65

92210

NUT,LOCK,8MM

92210-1243

$2.08

56071

LABEL-WARNING,SADDLEBAG

56071-0001

$8.23

57003B

BAG-ASSY,LH

57003-0046

$593.13

57003C

BAG-ASSY,RH

57003-0047

$593.14

57003D

BAG-ASSY,LH

57003-0056

$609.26

57003E

BAG-ASSY,RH

57003-0057

$581.69
