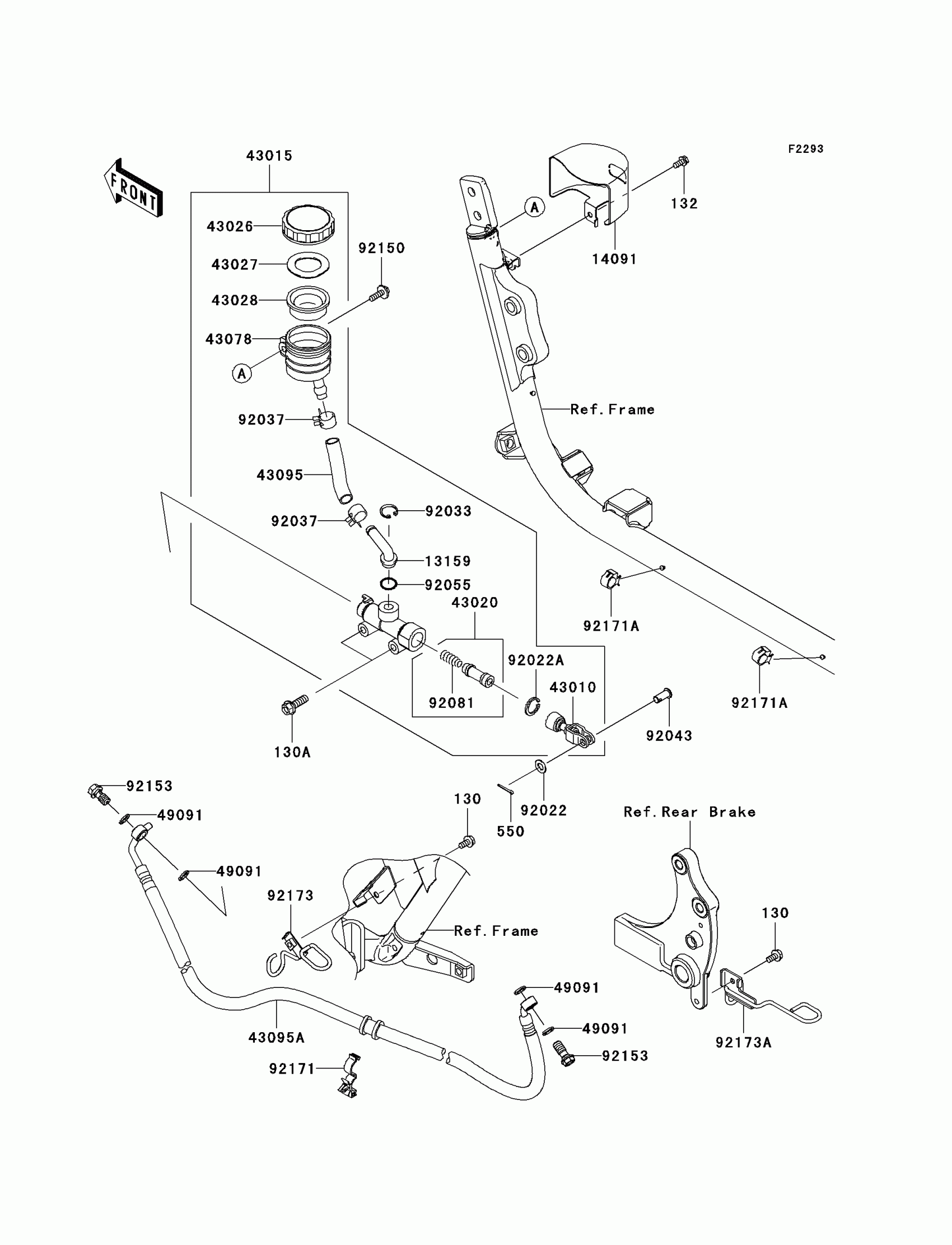

Kawasaki Vulcan® 1700 Classic LT Rear Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BB0612

$1.68

130A

BOLT-FLANGED,8X25

130BB0825

$3.39

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

550

PIN-COTTER,2.0X15

550AA2015

$0.90

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

14091

COVER,RESERVOIR TANK

14091-1595

$68.43

43010

ROD-ASSY-BRAKE

43010-1062

$45.28

43015

CYLINDER-ASSY-MASTER,RR

43015-0081

$265.66

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43078

RESERVOIR,RR MASTER CYLINDER

43078-1178

$24.59

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0306

$15.29

43095A

HOSE-BRAKE,RR

43095-0453

$146.28

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92022

WASHER,8.5X16X1.2

92022-1582

$0.81

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92043

PIN,8X16

92043-1013

$7.54

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92150

BOLT,6X20

92150-1339

$3.35

92153

BOLT,OIL,L=23

92153-0627

$4.15

92171

CLAMP

92171-0782

$3.51

92171A

CLAMP,DIA=15

92171-1424

$3.19

92173

CLAMP,BRAKE HOSE

92173-0033

$24.37

92173A

CLAMP,BRAKE HOSE

92173-0135

$23.73
