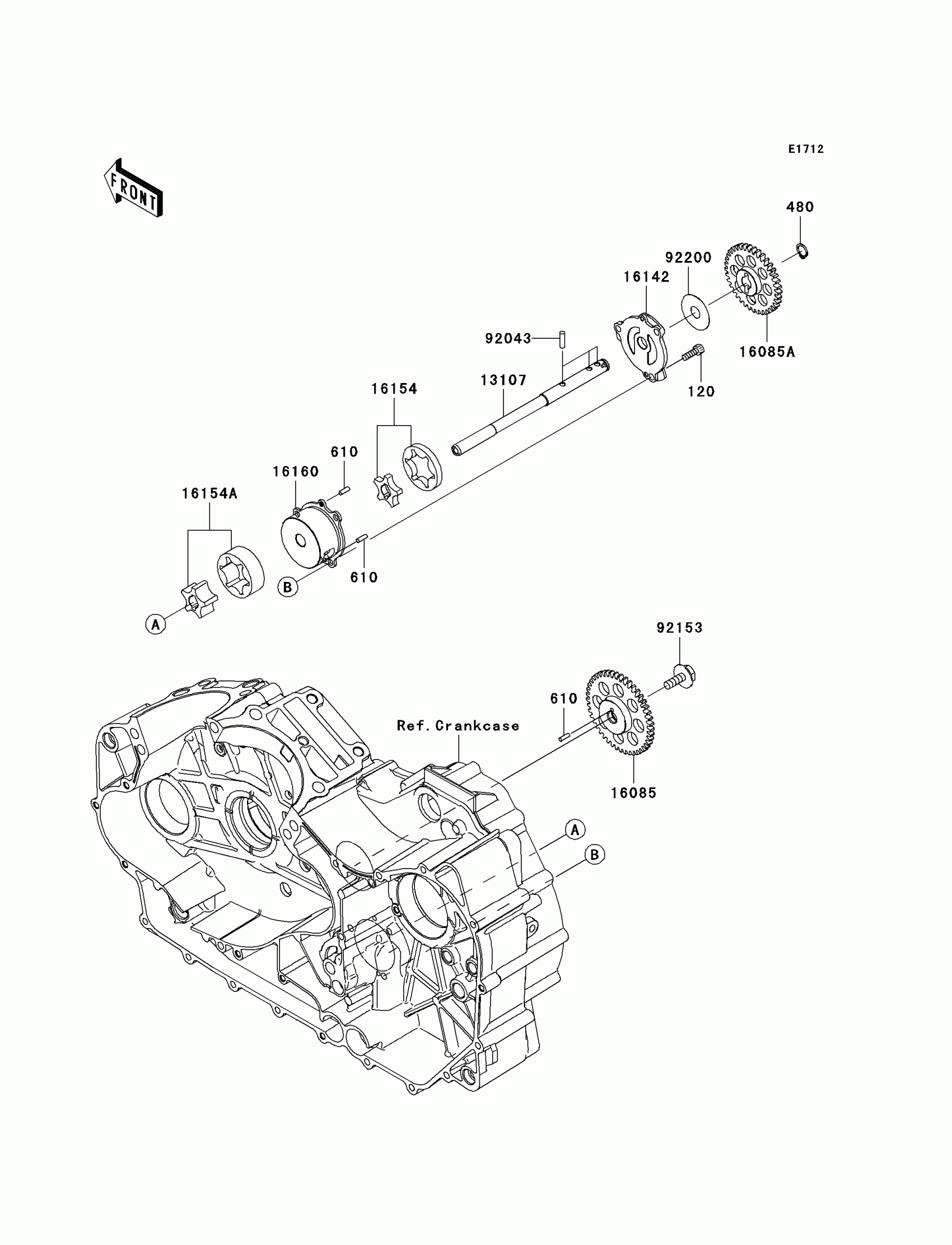

Kawasaki Vulcan® 1700 Classic LT Oil Pump Diagram

Description

Price

120

BOLT-SOCKET,6X18

120CA0618

$3.07

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

610

ROLLER,4X12

610A0412

$5.52

13107

SHAFT,OIL PUMP

13107-0212

$57.20

16085

GEAR,DRIVE,45T

16085-0119

$96.20

16085A

GEAR,DRIVEN,37T

16085-0120

$69.89

16142

COVER-PUMP

16142-0055

$48.91

16154

ROTOR-PUMP,FEED

16154-0079

$77.26

16154A

ROTOR-PUMP,SCAVENGE

16154-0085

$77.26

16160

BODY,OIL PUMP

16160-0157

$91.46

92043

PIN,17.9X5.0

92043-1444

$4.31

92153

BOLT,FLANGED,8X23

92153-0549

$8.26

92200

WASHER,13.2X40X0.5

92200-0499

$3.71
