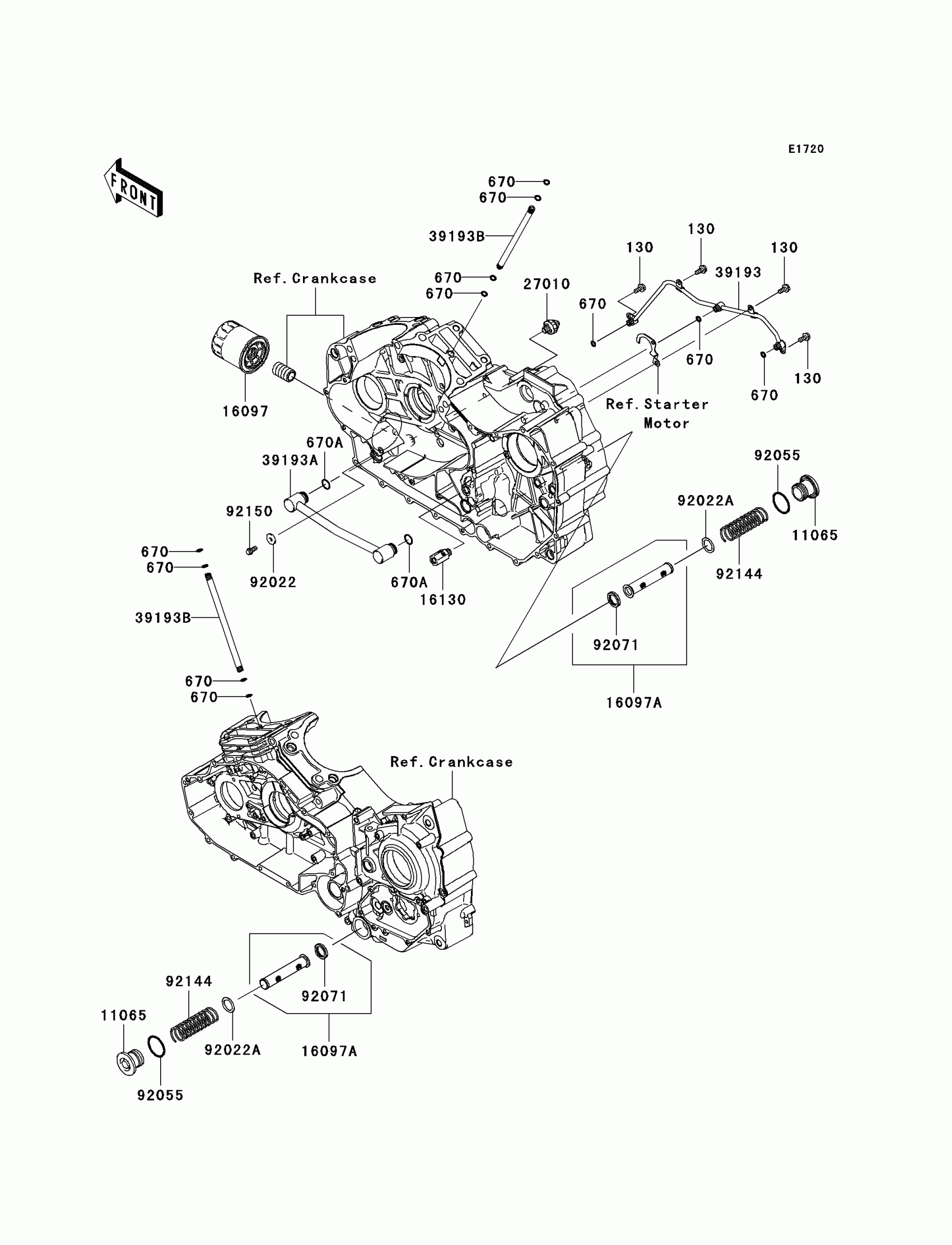

Kawasaki Vulcan® 1700 Classic LT Oil Filter Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BA0614

$1.20

670

O RING,7MM

670D1507

$1.70

670A

O RING,16MM

670D2016

$1.70

11065

CAP,OIL FILTER

11065-0244

$49.04

16097

FILTER-ASSY-OIL

16097-0004

Unavailable

16097A

FILTER-ASSY-OIL

16097-1058

$14.37

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

39193

PIPE-OIL,RH CASE,OUTSIDE

39193-0047

$69.26

39193A

PIPE-OIL,RH CASE,INSIDE

39193-0048

$56.67

39193B

PIPE-OIL,CASE-HEAD

39193-1045

$15.87

92022

WASHER,6X19.5X2

92022-1517

$2.33

92022A

WASHER,20.1X28X1

92022-1547

$4.31

92055

RING-O,35.2X2.4

92055-1358

$7.34

92071

GROMMET,OIL STRAINER

92071-100

$5.46

92144

SPRING

92144-1106

$6.51

92150

BOLT,6X14

92150-1916

$3.32
