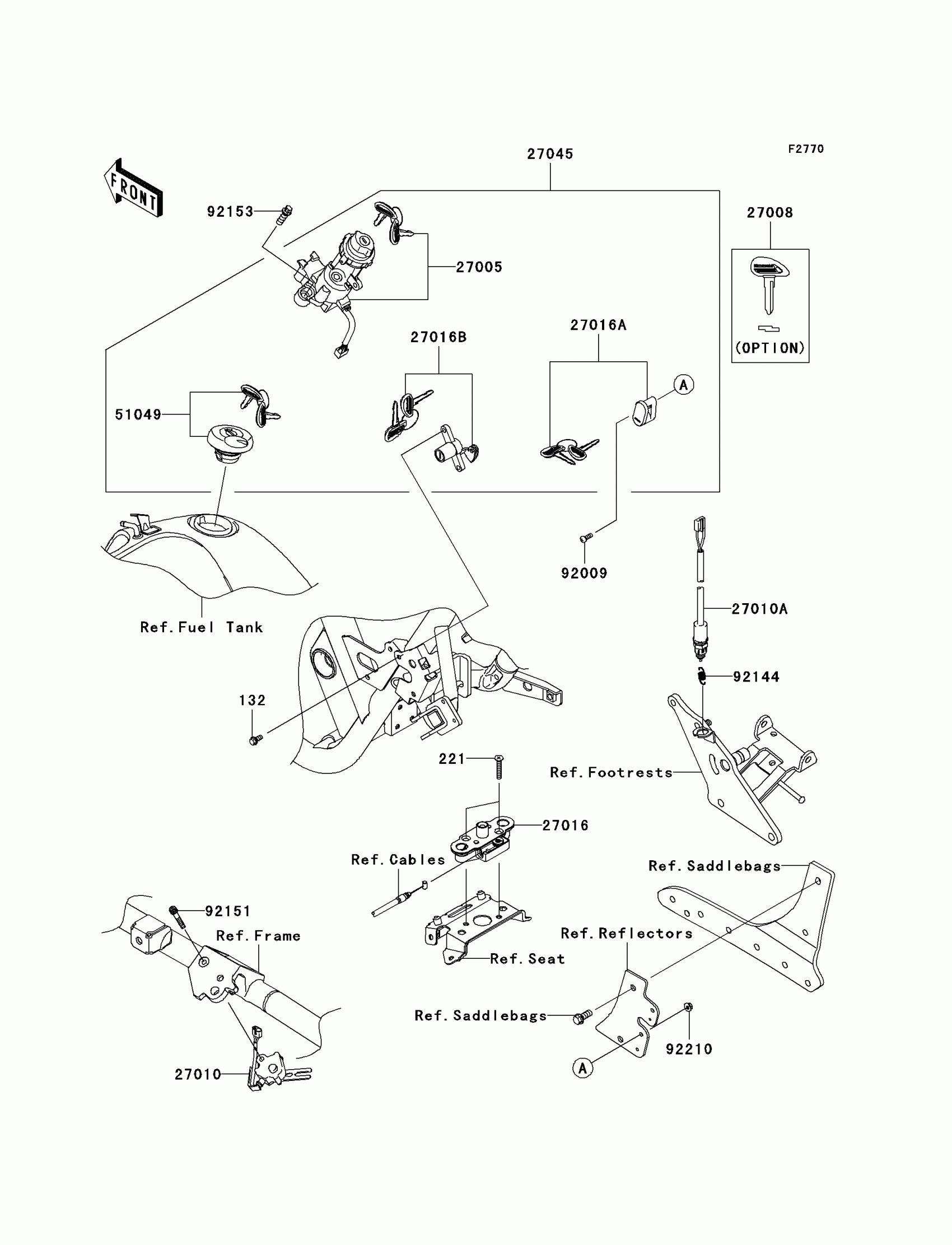

Kawasaki Vulcan® 1700 Classic LT Ignition Switch/Locks/Reflectors Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

221

SCREW-CSK-CROS,6X30

221AA0630

$2.03

27005

SWITCH-ASSY-IGNITION

27005-0052

Unavailable

27008

KEY-LOCK,BLANK

27008-1211

$31.78

27010

SWITCH,SIDE STAND

27010-0088

$70.88

27010A

SWITCH,REAR BRAKE

27010-0089

$36.14

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

$84.75

27016A

LOCK-ASSY,HELMET

27016-5311

$67.81

27016B

LOCK-ASSY,SEAT

27016-5360

$68.06

27045

SWITCH-ASSY

27045-5408

$502.17

51049

CAP-TANK,FUEL

51049-5004

$117.25

92009

SCREW,5X14

92009-1341

$4.18

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$5.46

92151

BOLT,SOCKET,6X35

92151-1390

$2.46

92153

BOLT,TORX,8X22

92153-1273

$5.79

92210

NUT,FLANGED,5MM

92210-0007

$2.70
