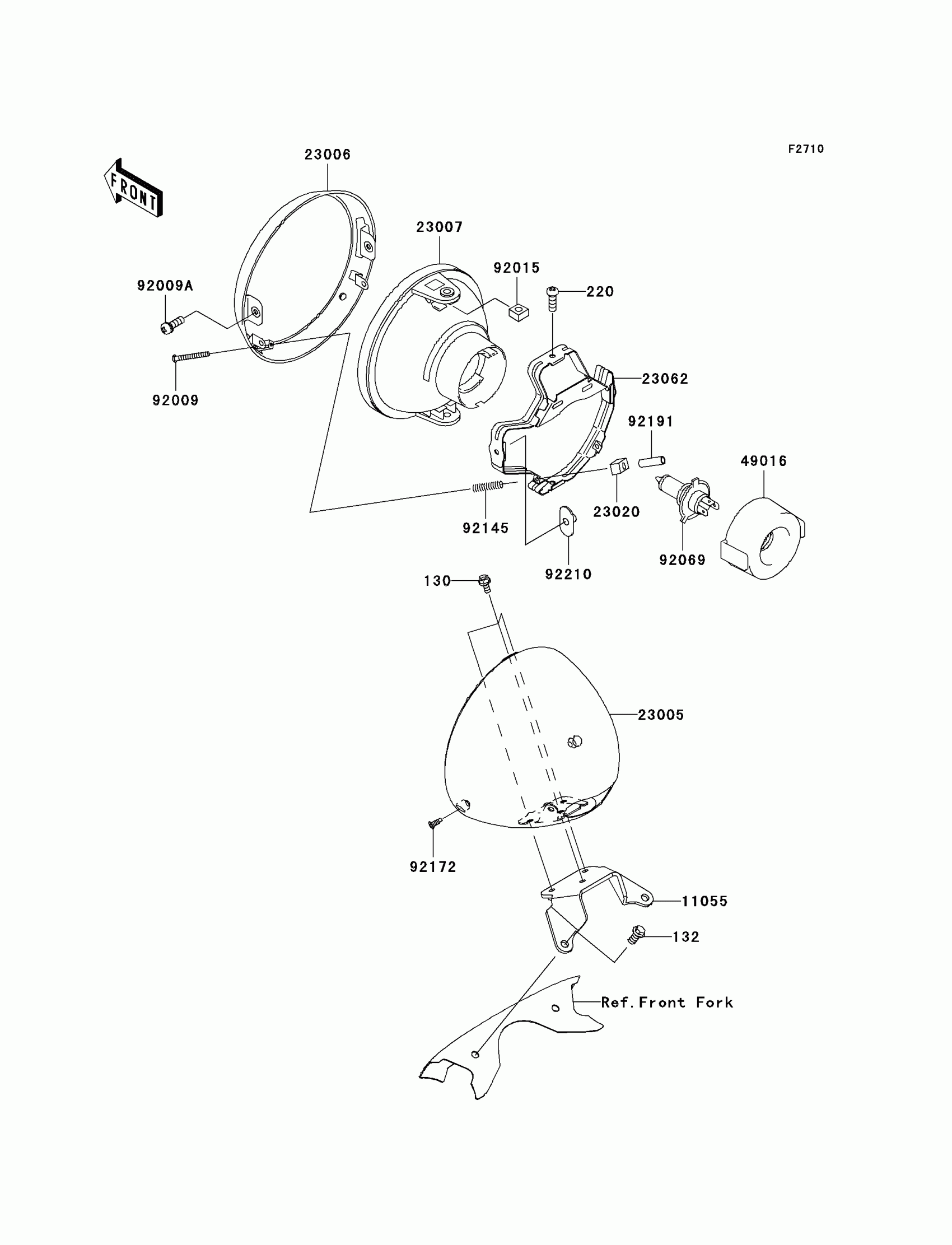

Kawasaki Vulcan® 1700 Classic LT Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BA0614

$1.20

132

BOLT-FLANGED-SMALL,8X16

132BA0816

$4.32

220

SCREW-PAN-CROS,5X16

220AA0516

$2.06

11055

BRACKET,HEAD LAMP

11055-0436

$84.43

23005

BODY-COMP-HEAD LAMP

23005-1205

Unavailable

23006

RIM-LAMP

23006-1081

$84.95

23007

LENS-COMP,HEAD LAMP

23007-1396

$147.32

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

23062

BRACKET-COMP,HEAD LAMP

23062-1132

$50.47

49016

COVER-SEAL,SOCKET

49016-1203

$12.14

92009

SCREW,FOCUS ADJUST,4X60

92009-1816

$5.91

92009A

SCREW,5X16

92009-1879

$1.06

92015

NUT,5MM

92015-1157

$4.87

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92145

SPRING,HEAD LAMP LENS

92145-1268

$4.96

92172

SCREW,5X14

92172-0145

$2.12

92191

TUBE,3.5X5.5X19

92191-1217

$2.44

92210

NUT,SPECIAL,5MM

92210-1060

$2.46
