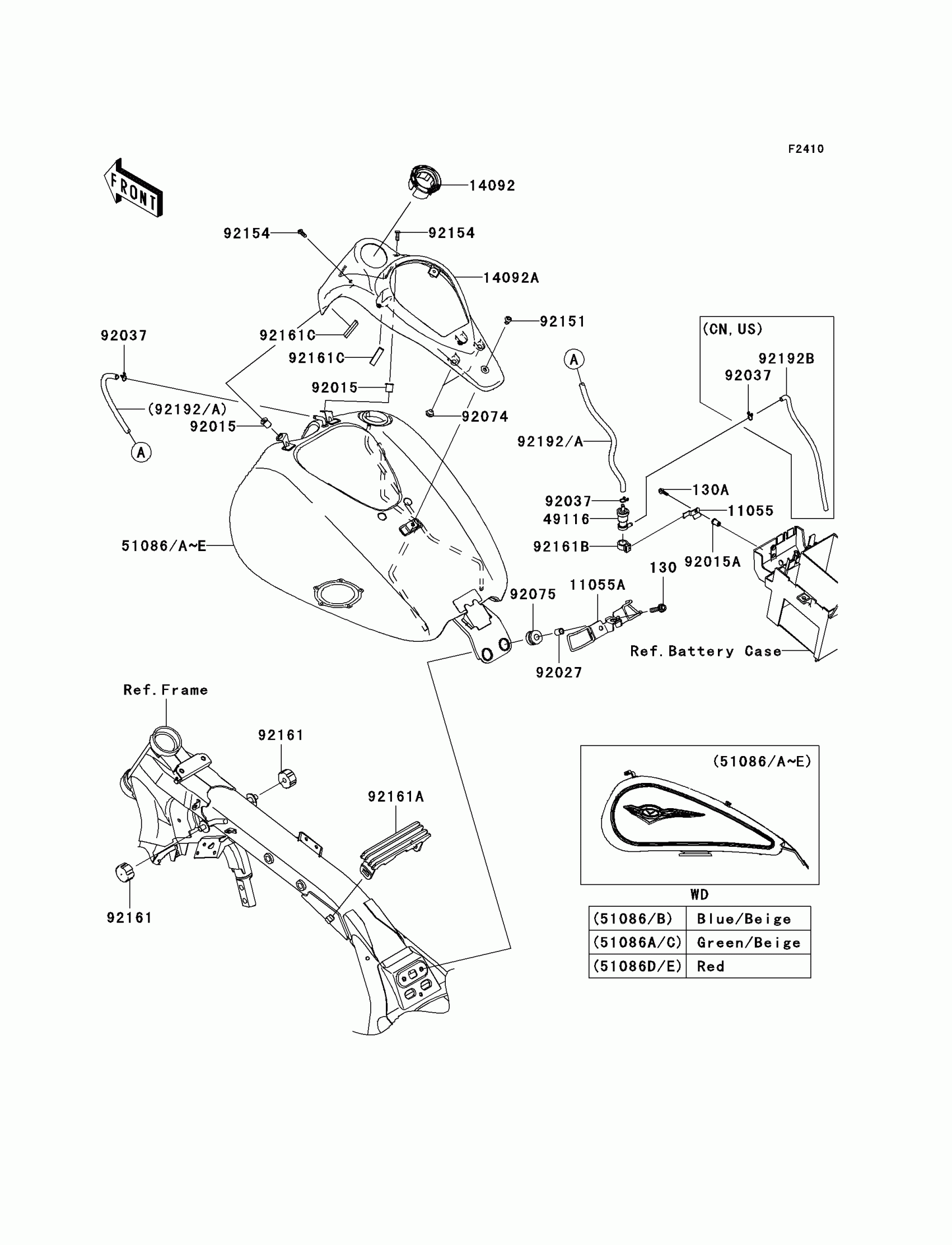

Kawasaki Vulcan® 1700 Classic LT Fuel Tank Diagram

Description

Price

11055

BRACKET,CHECK VALVE

11055-1512

$7.87

11055A

BRACKET,SEAT

11055-1552

$36.79

14092

COVER,IGNITION SWITCH

14092-0046

$55.32

14092A

COVER,METER

14092-0117

$228.99

49116

VALVE-ASSY,CHECK

49116-0014

$46.35

130

BOLT-FLANGED,8X30

130BA0830

$1.98

130A

BOLT-FLANGED,5X16

130BB0516

$2.06

92015

NUT

92015-1700

$8.58

92015A

NUT,WELL,5MM

92015-1757

$7.29

92027

COLLAR,8.8X12X17

92027-034

$7.24

92074

PLUG,7X2

92074-028

$4.26

92075

DAMPER

92075-1736

$6.57

92151

BOLT,SOCKET,6X10

92151-1449

$2.46

92154

BOLT,SOCKET,6X16

92154-0242

$3.55

92161

DAMPER,FUEL TANK

92161-0293

$7.83

92161A

DAMPER,FUEL TANK

92161-0577

$28.34

92161B

DAMPER,CHECK VALVE

92161-0744

$4.49

92161C

DAMPER,TANK COVER

92161-0804

$2.03

51086D

TANK-COMP-FUEL,M.I.RED

51086-5355-19J

$1,623.09

51086E

TANK-COMP-FUEL,M.I.RED

51086-5387-19J

$1,623.09

92037

CLAMP,TUBE

92037-147

$7.34

92037

CLAMP,TUBE

92037-147

$7.34

92192

TUBE,5X10X980

92192-0829

$16.07

92192A

TUBE,5X10X980

92192-0830

$82.47

92192B

TUBE

92192-0837

$9.37
