2010 Kawasaki Vulcan® 1700 Classic LT Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2010 Kawasaki Vulcan® 1700 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

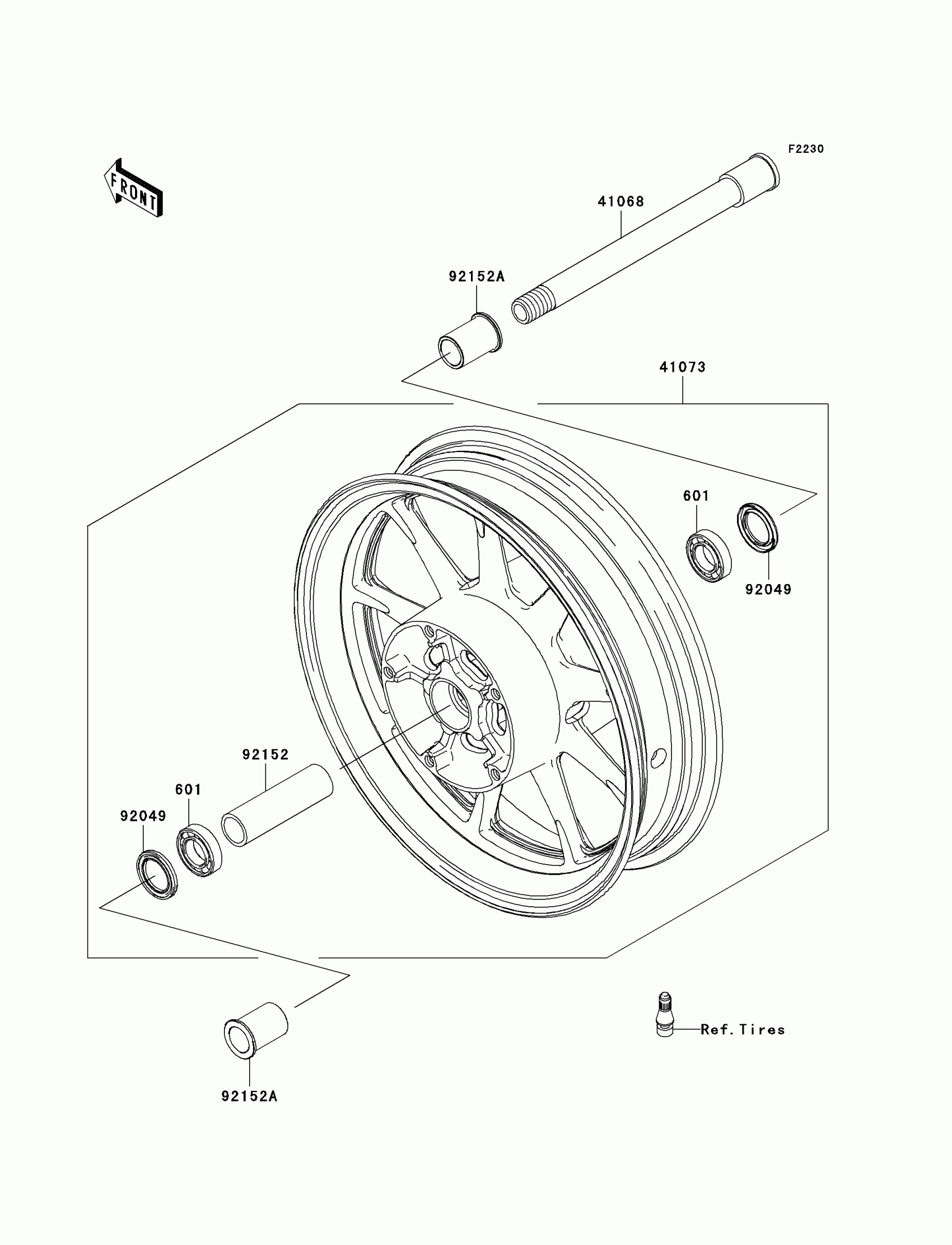

2010 Kawasaki Vulcan® 1700 Classic LT Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

BEARING-BALL,#6005UU

601B6005UU

1
Out of stock

41068

AXLE,FR

41068-1465

1
Out of stock

41073

WHEEL-ASSY,FR,P.SILVER

41073-0147-496

1
Out of stock

92049

SEAL-OIL,BJN-C2 32X47X5

92049-0050

1
Out of stock

92152

COLLAR,FR HUB,L=109

92152-1308

1
Out of stock

92152A

COLLAR,FR HUB,L=46.5

92152-1492

1
Out of stock
