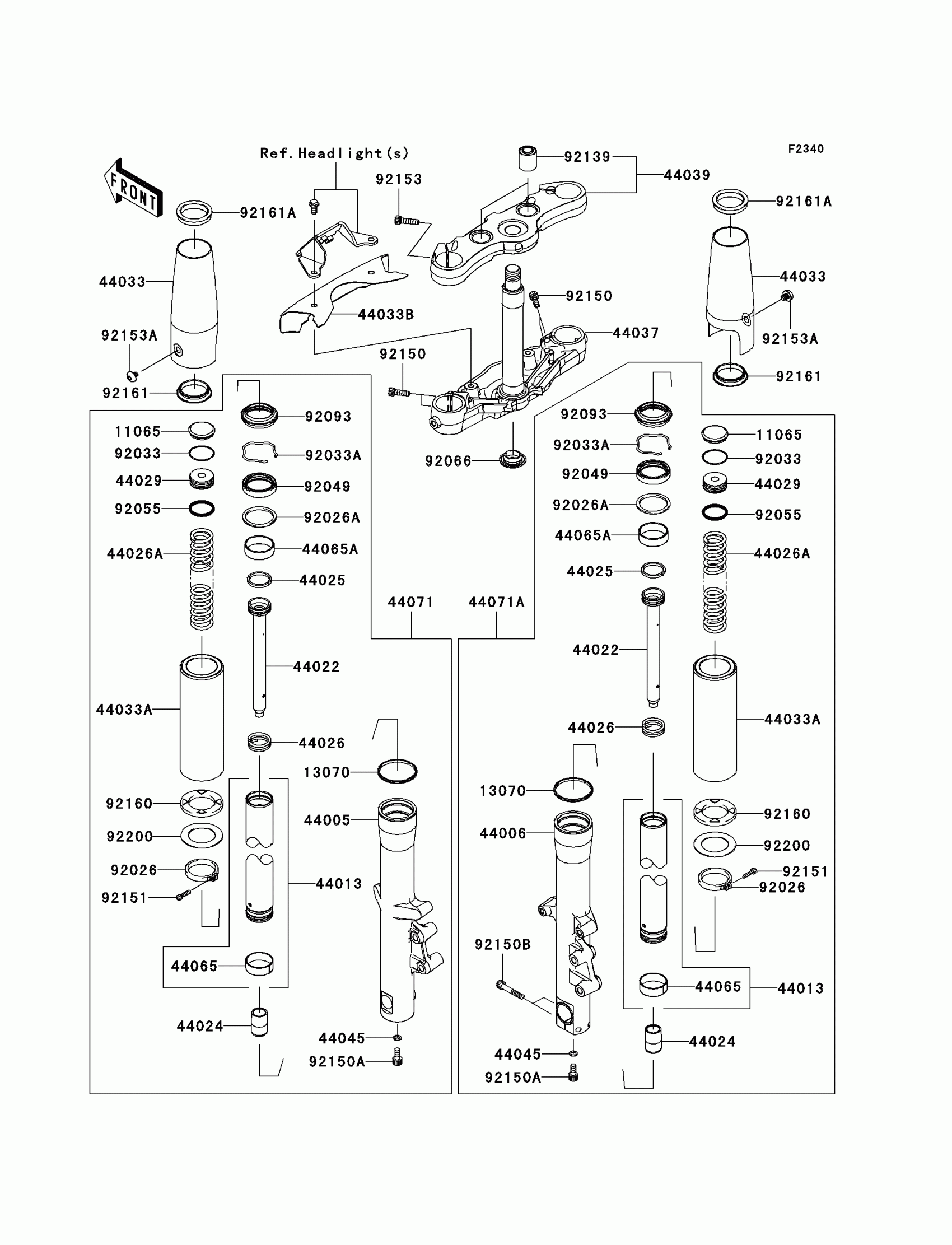

Kawasaki Vulcan® 1700 Classic LT Front Fork Diagram

#

Description
Price

11065

CAP,FORK TOP

11065-0297

$13.30

13070

GUIDE,CASE

13070-0104

$11.54

44005

PIPE-LEFT FORK OUTER

44005-0074

$483.52

44006

PIPE-RIGHT FORK OUTER

44006-0068

$483.52

44013

PIPE-FORK INNER

44013-0125

$438.34

44022

CYLINDER-FORK

44022-0025

$116.00

44024

CAP-OIL-LOCK

44024-0006

$12.94

44025

RING-FORK PISTON

44025-0006

$9.96

44026

SPRING-FRONT FORK

44026-0131

$26.15

44026A

SPRING-FRONT FORK

44026-0132

$96.06

44029

SEAT-FORK SPRING

44029-0013

$57.12

44033

COVER-FORK

44033-0053

$175.00

44033A

COVER-FORK

44033-0055

$148.60

44033B

COVER-FORK

44033-0057

$122.63

44037

HOLDER-FORK UNDER

44037-0087

$485.97

44039

HOLDER-FORK UPPER

44039-0100

$350.59

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0025

$25.51

44065A

BUSHING-FRONT FORK

44065-0026

$25.51

44071

DAMPER-ASSY,FORK,LH

44071-0529

$1,085.68

44071A

DAMPER-ASSY,FORK,RH

44071-0530

$1,085.68

92026

SPACER

92026-0134

$20.86

92026A

SPACER

92026-1598

$11.57

92033

RING-SNAP

92033-0061

$7.43

92033A

RING-SNAP

92033-1222

$6.51

92049

SEAL-OIL

92049-0119

$26.40

92055

RING-O,FORK TOP

92055-1420

$5.52

92066

PLUG

92066-0032

$11.66

92093

SEAL,DUST

92093-0042

$24.99

92139

BUSHING

92139-0285

$36.14

92150

BOLT,SOCKET,8X30

92150-1407

$2.80

92150A

BOLT,SOCKET,8X18

92150-1432

$9.91

92150B

BOLT,SOCKET

92150-1512

Unavailable

92151

BOLT,SOCKET,4X16

92151-1356

$2.46

92153

BOLT,SOCKET,8X30

92153-0500

$10.86

92153A

BOLT,SOCKET,8X10

92153-1278

$6.48

92160

DAMPER

92160-1927

$7.91

92161

DAMPER

92161-0604

$5.59

92161A

DAMPER

92161-0799

$11.82

92200

WASHER

92200-0469

$7.56
