Description

Price

120

BOLT-SOCKET,6X20

120CA0620

$1.77

130

BOLT-FLANGED,10X35

130BA1035

$3.26

130A

BOLT-FLANGED,8X22

130BB0822

$2.34

130B

BOLT-FLANGED,8X25

130BB0825

$4.45

130C

BOLT-FLANGED,10X50

130BB1050

$3.69

411

WASHER-PLAIN,8.5X18X1.6

411AB0800

$1.78

670

O RING,10MM

670B2010

$1.50

670A

O RING,12MM

670B2012

$3.23

11055

BRACKET,MUFFLER

11055-1054

$30.16

14092

COVER,RR FENDER,LH

14092-0061

$154.37

14092A

COVER,RR FENDER,RH

14092-0062

$154.37

14092B

COVER

14092-0137

$54.26

32190

BRACKET-ENGINE,RR,LWR

32190-0396

$18.76

32190A

BRACKET-ENGINE,FR,F.S.BLACK

32190-0410-18R

$133.21

32190B

BRACKET-ENGINE,RR,UPP,BLACK

32190-0446-18R

$54.18

32190C

BRACKET-ENGINE,CYLINDER HEAD

32190-0452

$104.12

39156

PAD,BRAKE HOSE,RR

39156-0629

$41.05

92001

BOLT,FLANGED,10X110

92001-1602

$11.07

92002

BOLT,FLANGED,10X260

92002-1454

$23.47

92015

NUT,ENGINE MOUNT,22MM

92015-1846

$21.77

92075

DAMPER,ENGINE MOUNT

92075-1738

$23.47

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1739

$31.88

92150

BOLT,FLANGED,12X228

92150-1952

$32.48

92152

COLLAR

92152-0381

$5.65

92152A

COLLAR,8.8X12X22.2

92152-0744

$6.56

92153

BOLT,FLANGED,6X19

92153-1400

$3.90

92154

BOLT,FLANGED,12X200

92154-0244

$28.78

92154A

BOLT,ENGINE MOUNT,22X33.5

92154-0245

$30.06

92210

NUT,LOCK,FLANGED,12MM

92210-0110

$10.56

92210A

NUT,LOCK,FLANGED,10MM

92210-1081

$12.35

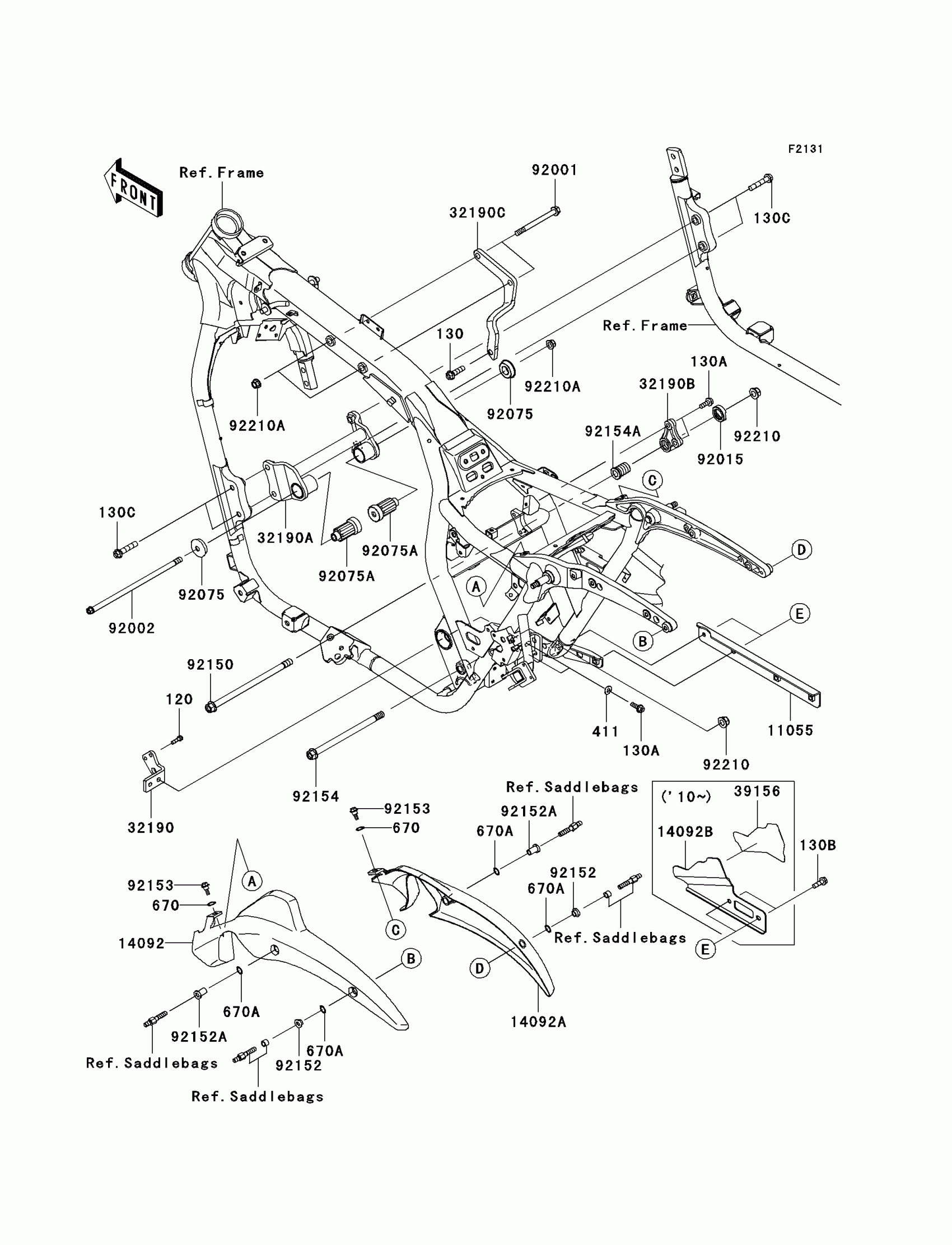

Kawasaki Vulcan® 1700 Classic LT Frame Fittings Diagram
