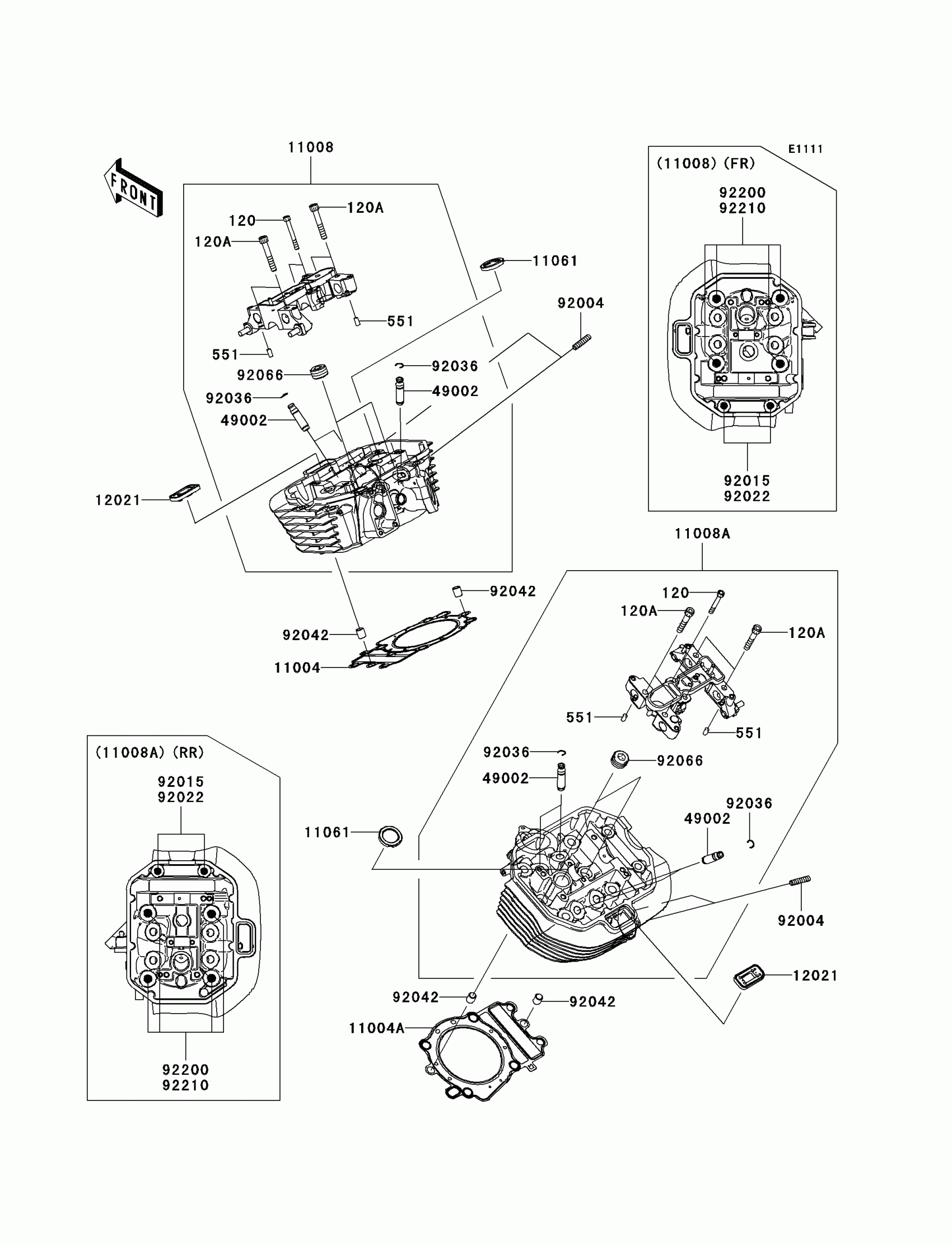

Kawasaki Vulcan® 1700 Classic LT Cylinder Head Diagram

Description

Price

120

BOLT-SOCKET,6X50

120Q0650

$3.29

120A

BOLT-SOCKET,8X50

120Q0850

$3.29

551

PIN-DOWEL,6X12

551A0612

$0.94

11004

GASKET-HEAD,FR

11004-0076

$57.15

11004A

GASKET-HEAD,RR

11004-0077

$57.15

11008

HEAD-COMP-CYLINDER,FR

11008-0178

$1,417.16

11008A

HEAD-COMP-CYLINDER,RR

11008-0179

$1,389.87

11061

GASKET,PLUG HOLE

11061-0333

$7.78

12021

VALVE-ASSY-REED

12021-0017

$74.86

49002

GUIDE-VALVE

49002-0008

Unavailable

92004

STUD,8X20

92004-0046

$2.73

92015

NUT,FLANGED,10MM

92015-077

$4.69

92022

WASHER,10.2X20X1.5

92022-3742

$4.18

92036

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92042

PIN,DOWEL,12X14

92042-031

$6.57

92066

PLUG,PT1/2X12.5

92066-0002

$8.98

92200

WASHER,12.3X25X3.2

92200-0422

$4.45

92210

NUT,12MM

92210-0546

$5.54
