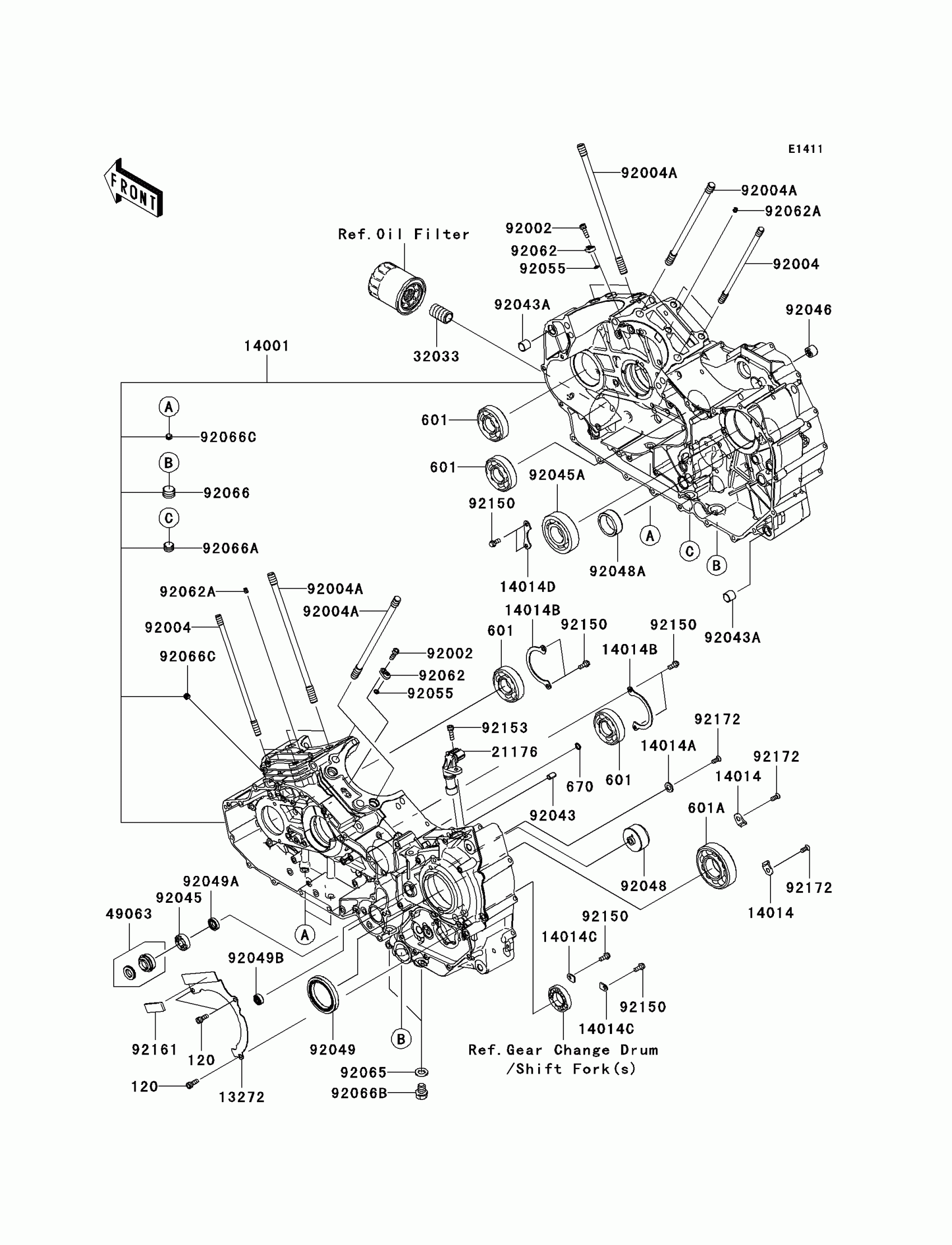

Kawasaki Vulcan® 1700 Classic LT Crankcase Diagram

#

Description
Price

120

BOLT-SOCKET,6X16

120CA0616

$2.49

601

BEARING-BALL,#6305

601A6305

$18.63

601A

BEARING-BALL

601A6307

$37.57

670

O RING,8MM

670D1508

$4.31

13272

PLATE,EG OUTPUT

13272-0319

$8.10

14001

SET-CRANKCASE

14001-0134

$1,975.76

14014

PLATE-POSITION

14014-0003

$4.69

14014A

PLATE-POSITION,9.5X17X2.3

14014-0019

$3.90

14014B

PLATE-POSITION,BALANCER

14014-0033

$5.59

14014C

PLATE-POSITION,CHANGE DRUM

14014-0034

$5.59

14014D

PLATE-POSITION

14014-1084

$6.47

21176

SENSOR,SPEED

21176-0042

$131.52

32033

PIPE,OIL FILTER

32033-1535

$12.96

49063

SEAL-MECHANICAL

49063-1055

$20.06

92002

BOLT,SOCKET,5X18

92002-1805

$4.69

92004

STUD,10X201

92004-0038

$20.08

92004A

STUD,12X217

92004-0039

$28.58

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN,13X16X14

92043-1608

$5.00

92045

BEARING-BALL,6001JRXLLU/5K

92045-1151

$27.31

92045A

BEARING-BALL,6306SH2

92045-1190

$40.80

92046

BEARING-NEEDLE,HK1212

92046-1163

$15.17

92048

RACE

92048-0017

$35.44

92048A

RACE

92048-1103

$24.36

92049

SEAL-OIL,50X68X9

92049-0107

$26.40

92049A

SEAL-OIL,SC 12X22X5

92049-1228

$9.28

92049B

SEAL-OIL

92049-1566

$7.65

92055

RING-O,5.5X1.5

92055-1339

$4.32

92062

NOZZLE,OIL JET

92062-0016

$9.61

92062A

NOZZLE,6X8,YELLOW

92062-1080

$8.58

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,PT1/2X12.5

92066-0002

$8.98

92066A

PLUG,PT3/8X10

92066-0003

$3.31

92066B

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92066C

PLUG,PT1/8X7

92066-1227

$5.90

92150

BOLT,6X14

92150-1916

$3.32

92153

BOLT,SOCKET,6X20

92153-1031

$2.15

92161

DAMPER

92161-0124

$3.44

92172

SCREW,6X14

92172-0187

$1.78
