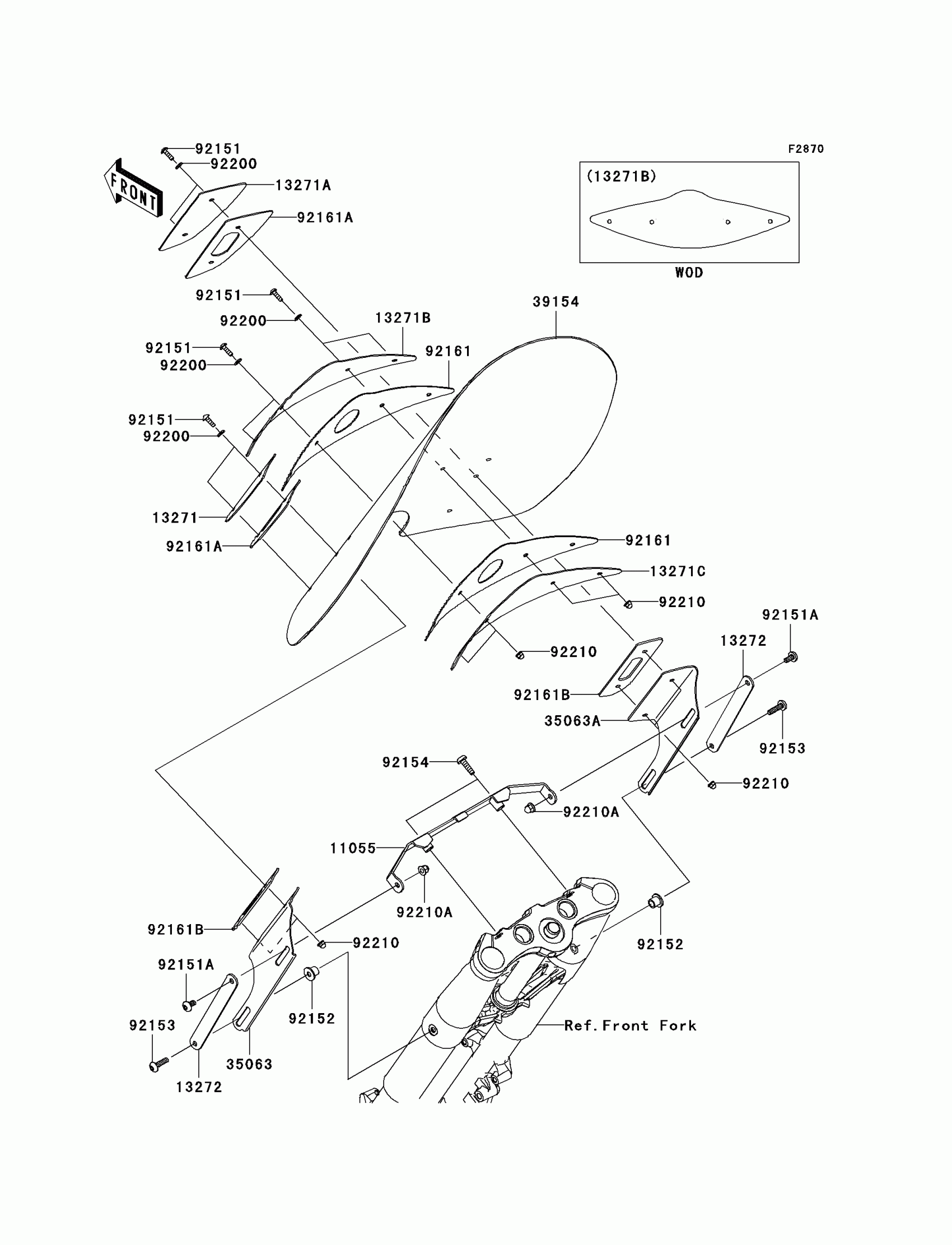

Kawasaki Vulcan® 1700 Classic LT Cowling Diagram

Description

Price

11055

BRACKET

11055-1897

$72.71

13271

PLATE,WINDSHIELD,LH,OUTER

13271-0704

$52.17

13271A

PLATE,WINDSHIELD,RH,OUTER

13271-0705

$52.17

13271B

PLATE,WINDSHIELD,CNT,OUTER

13271-0706

$73.80

13271C

PLATE,WINDSHIELD,CNT,INNER

13271-0707

$73.80

13272

PLATE,WINDSHIELD

13272-0750

$36.78

35063

STAY,WINDSHIELD,LH

35063-0595

$60.50

35063A

STAY,WINDSHIELD,RH

35063-0596

$60.50

39154

WINDSHIELD,MAIN

39154-0044

Unavailable

92151

BOLT,SOCKET,6X20

92151-1750

$2.46

92151A

BOLT,SOCKET,8X16

92151-1752

$2.67

92152

COLLAR

92152-0742

$7.66

92153

BOLT,SOCKET,8X30

92153-1467

$5.65

92154

BOLT,SOCKET,8X40

92154-0186

$7.66

92161

DAMPER,WINDSHIELD,CNT

92161-0330

$13.60

92161A

DAMPER,WINDSHIELD,LH&RH,OUTER

92161-0332

$11.00

92161B

DAMPER,WINDSHIELD,INNER,LH&RH

92161-0677

$10.06

92200

WASHER,6.5X14.5X1.5

92200-3775

$1.74

92210

NUT,CAP,6MM

92210-0220

$3.93

92210A

NUT,CAP,8MM

92210-1132

$4.18
