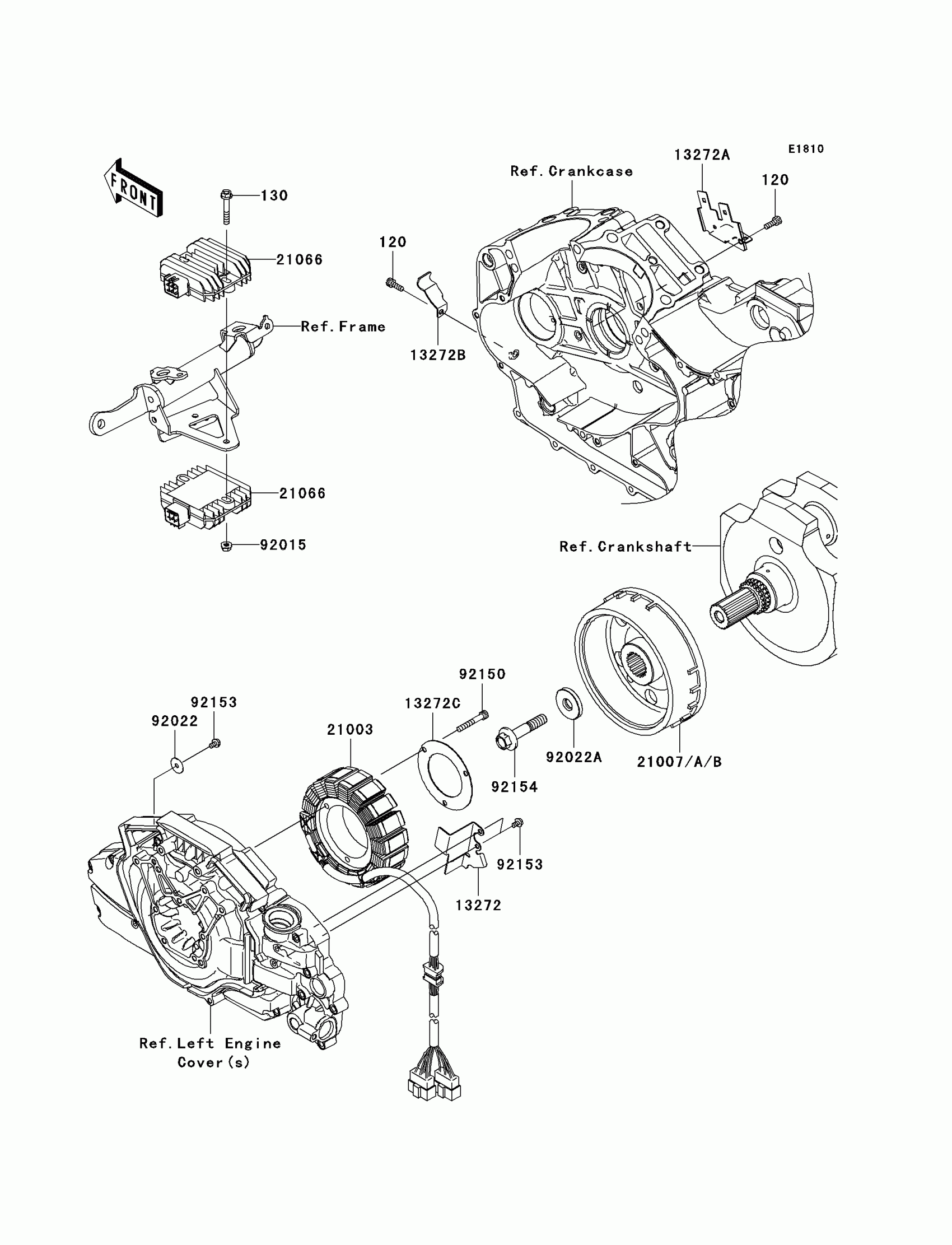

Kawasaki VULCAN® 1700 CLASSIC Generator Diagram

Description

Price

120

BOLT-SOCKET,6X16

120CA0616

$2.49

130

BOLT-FLANGED,6X40

130BB0640

$3.13

13272

PLATE,INNER GENE. COVER

13272-0320

$9.61

13272A

PLATE,COUPLER

13272-0426

$8.32

13272B

PLATE,FR RH CASE

13272-0427

$5.29

13272C

PLATE,STATOR

13272-0683

$5.29

21003

STATOR

21003-0076

$586.85

21007A

ROTOR

21007-0116

$990.60

21007B

ROTOR

21007-0162

$1,041.83

21066

REGULATOR-VOLTAGE

21066-0032

$243.14

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92022

WASHER,5.5X20X1.2

92022-104

$4.31

92022A

WASHER,12X40X6

92022-1904

$14.23

92150

BOLT,SOCKET,6X40

92150-1958

$5.52

92153

BOLT,5X10

92153-0687

$2.61

92154

BOLT,ROTOR,12X60

92154-0032

$30.15
