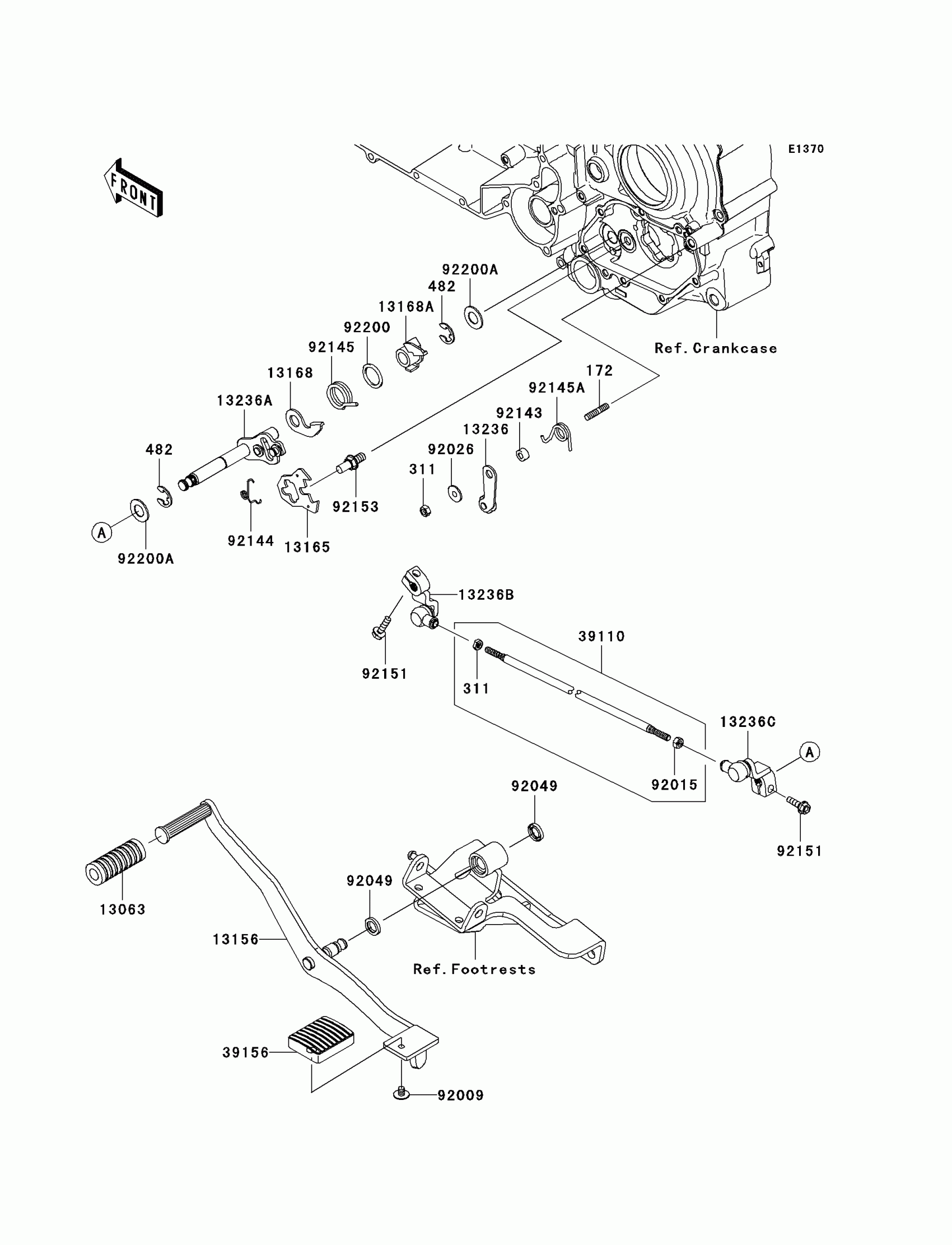

Kawasaki VULCAN® 1700 CLASSIC Gear Change Mechanism Diagram

Description

Price

172

BOLT-STUD,6X18

172BA0618

$1.26

311

NUT-HEX,6MM

311BA0600

$2.23

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92

13063

DAMPER,PEDAL

13063-002

$5.00

13156

LEVER-CHANGE

13156-0138

$136.33

13165

PAWL

13165-0001

$17.22

13168

LEVER

13168-0009

$3.93

13168A

LEVER

13168-0010

$11.66

13236

LEVER-COMP,POSITION

13236-0059

$15.14

13236A

LEVER-COMP,CHANGE

13236-0153

$47.10

13236B

LEVER-COMP,FR LINKAGE

13236-0154

$61.21

13236C

LEVER-COMP,RR LINKAGE

13236-0155

$58.40

39110

ROD-ASSY-TIE

39110-0031

$40.77

39156

PAD

39156-1641

$11.68

92009

SCREW,6X8

92009-1677

$4.31

92015

NUT,LEFT HANDED,6MM

92015-1125

$4.31

92026

SPACER

92026-1217

$5.52

92049

SEAL-OIL,VB13193

92049-1398

$6.22

92143

COLLAR

92143-1595

$9.51

92144

SPRING

92144-1029

$7.77

92145

SPRING,24X3.2

92145-0661

$5.25

92145A

SPRING,16X3

92145-0718

$5.25

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92153

BOLT,RETURN SPRING

92153-0421

$9.07

92200

WASHER,20.5X27X1.6

92200-0018

$3.44

92200A

WASHER,13.4X25X1.6

92200-0477

$3.71
