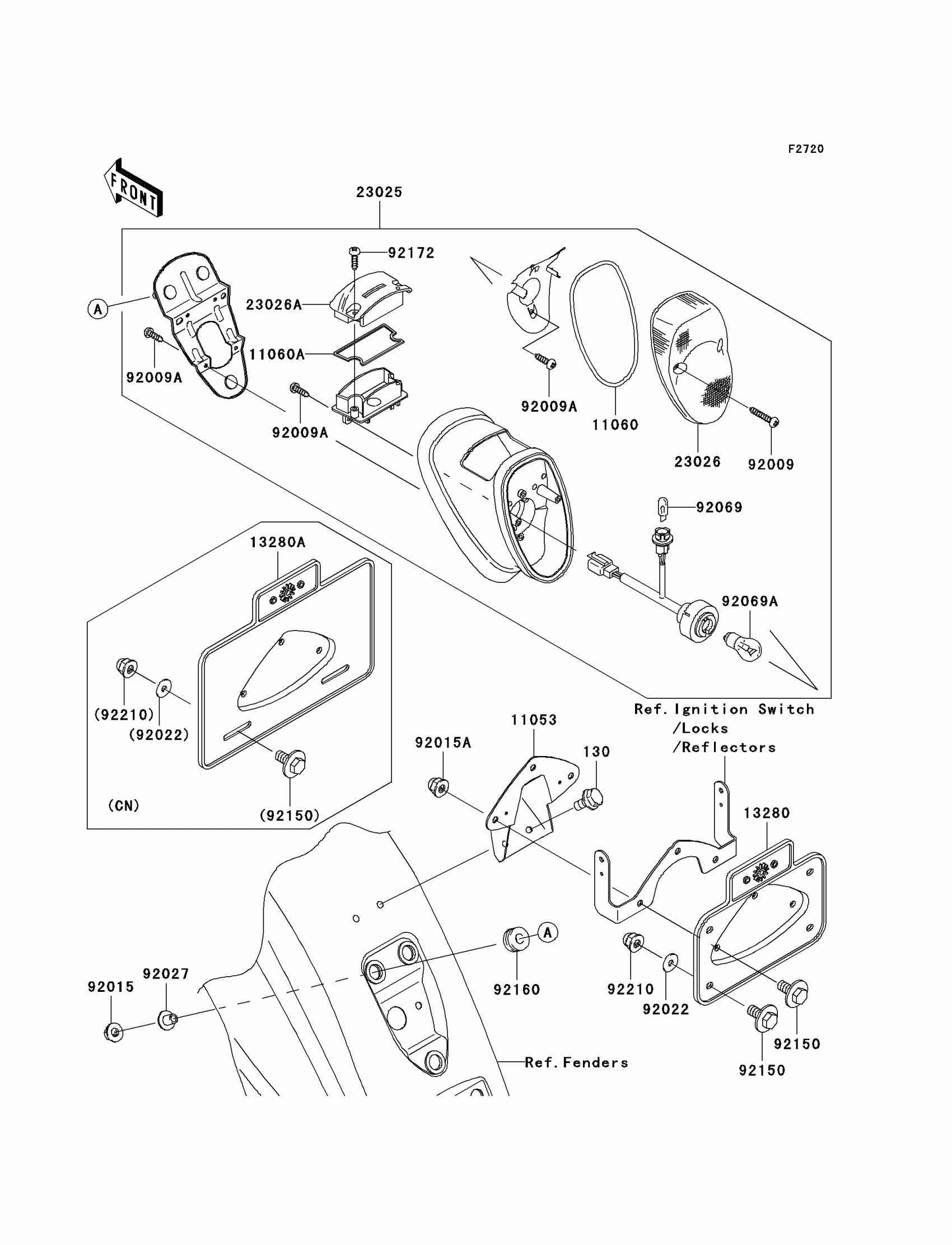

Kawasaki Vulcan® 1600 Nomad™ Taillight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

$2.19

11053

BRACKET,LICENSE PLATE HOLDER

11053-1220

$85.00

11060

GASKET,TAIL LAMP

11060-1884

$10.19

11060A

GASKET,LICENSE LENS

11060-1939

$3.26

23025

LAMP-TAIL

23025-1333

$493.76

23026

LENS,TAIL

23026-1220

$55.23

23026A

LENS,LICENSE

23026-1224

$15.94

92009

SCREW,TAPPING,4X20

92009-1378

$4.10

92009A

SCREW,TAPPING,4X12

92009-1381

$2.97

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,CAP,6MM

92015-1385

$4.31

92027

COLLAR,L=13.1,BLACK

92027-1450

$6.22

92069

BULB,12V 5W

92069-1016

$6.52

92069A

BULB,12V 21/5W

92069-1084

$7.33

92160

DAMPER

92160-1162

$5.00

92172

SCREW,TAPPING,4X12

92172-0084

$3.16

13280

HOLDER,LICENSE PLATE

13280-1103

$20.71

13280A

HOLDER,LICENSE PLATE

13280-1130

$21.48

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92150

BOLT,6X14

92150-1133

$4.31

92150

BOLT,6X14

92150-1133

$4.31

92210

NUT,CAP,6MM

92210-0003

$0.64

92210

NUT,CAP,6MM

92210-0003

$0.64
