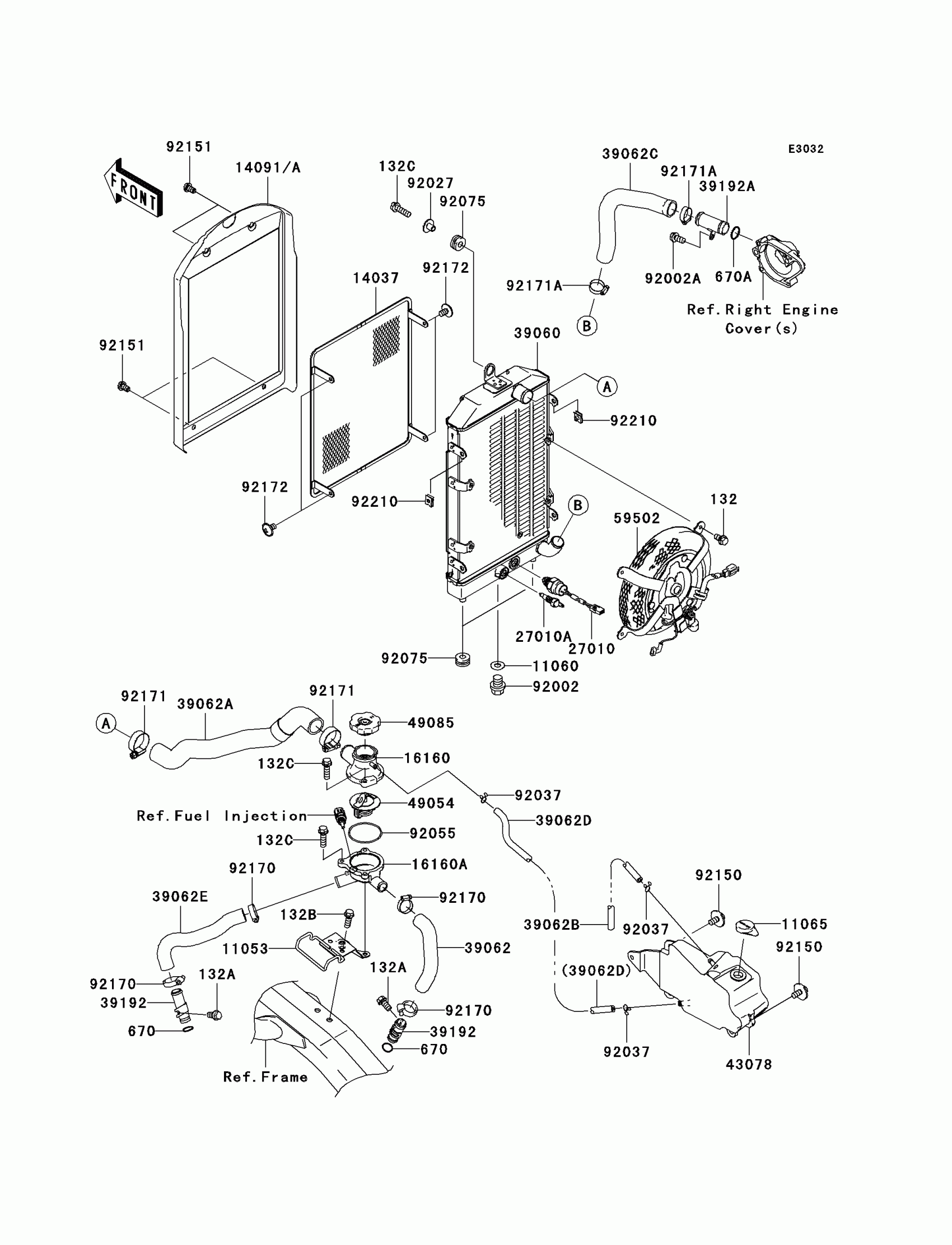

Kawasaki Vulcan® 1600 Nomad™ Radiator Diagram
#
132
BOLT-FLANGED-SMALL,6X10
132J0610
$2.33
132A
BOLT-FLANGED-SMALL,6X12
132J0612
$1.92
132B
BOLT-FLANGED-SMALL,6X16
132J0616
$2.33
132C
BOLT-FLANGED-SMALL,6X20
132J0620
$3.64
11053
BRACKET,THERMOSTAT CASE
11053-0009
$12.48
11060
GASKET,DRAIN PLUG
11060-1767
$2.94
11065
CAP,COOLANT
11065-1093
$3.97
14037
SCREEN,INNER
14037-0014
$72.10
14091A
COVER
14091-0838
$112.89
16160
BODY,UPP
16160-1152
$67.73
16160A
BODY,LWR
16160-1361
$68.72
27010
SWITCH,FAN
27010-0024
$143.50
27010A
SWITCH,WARNING
27010-1305
$83.95
39060
RADIATOR
39060-0019
$685.93
39062
HOSE-COOLING,RR HEAD-THERMO
39062-0018
$35.13
39062A
HOSE-COOLING,RADIATOR-THERMO
39062-0019
$36.80
39062B
HOSE-COOLING
39062-1258
$37.82
39062C
HOSE-COOLING,RADIATOR-PUMP
39062-1850
$29.24
39062D
HOSE-COOLING,THERMO-RESERVOIR
39062-1934
$32.85
39062E
HOSE-COOLING,FR HEAD-THERMO
39062-1935
$35.13
39192
PIPE-WATER
39192-1094
$23.27
39192A
PIPE-WATER
39192-1096
$27.10
43078
RESERVOIR
43078-1180
$59.15
49054
THERMOSTAT
49054-1067
Unavailable
49085
CAP-ASSY-PRESSURE
49085-1067
$53.94
59502
FAN-ASSY
59502-0013
$820.80
92002
BOLT,FLANGED,10X10
92002-1311
$6.15
92002A
BOLT,6X12
92002-1569
Unavailable
92027
COLLAR,L=13.1,BLACK
92027-1450
$6.22
92037
CLAMP,TUBE
92037-147
$7.34
92055
RING-O,53.5X2.6
92055-112
$6.63
92075
DAMPER,10X24X12
92075-1690
$5.00
92150
BOLT,FLANGED,6X14,WASHER
92150-1392
$4.80
92151
BOLT,6X10
92151-1809
$2.86
92170
CLAMP,COOLING HOSE
92170-1032
$25.59
92171
CLAMP
92171-0179
$8.20
92171A
CLAMP
92171-0261
$16.83
92172
SCREW,6X10
92172-0005
$2.41
92210
NUT
92210-1125
$4.76
670
O RING,14MM
670B2014
$1.19
670A
O RING,18MM
670B2018
$1.42
