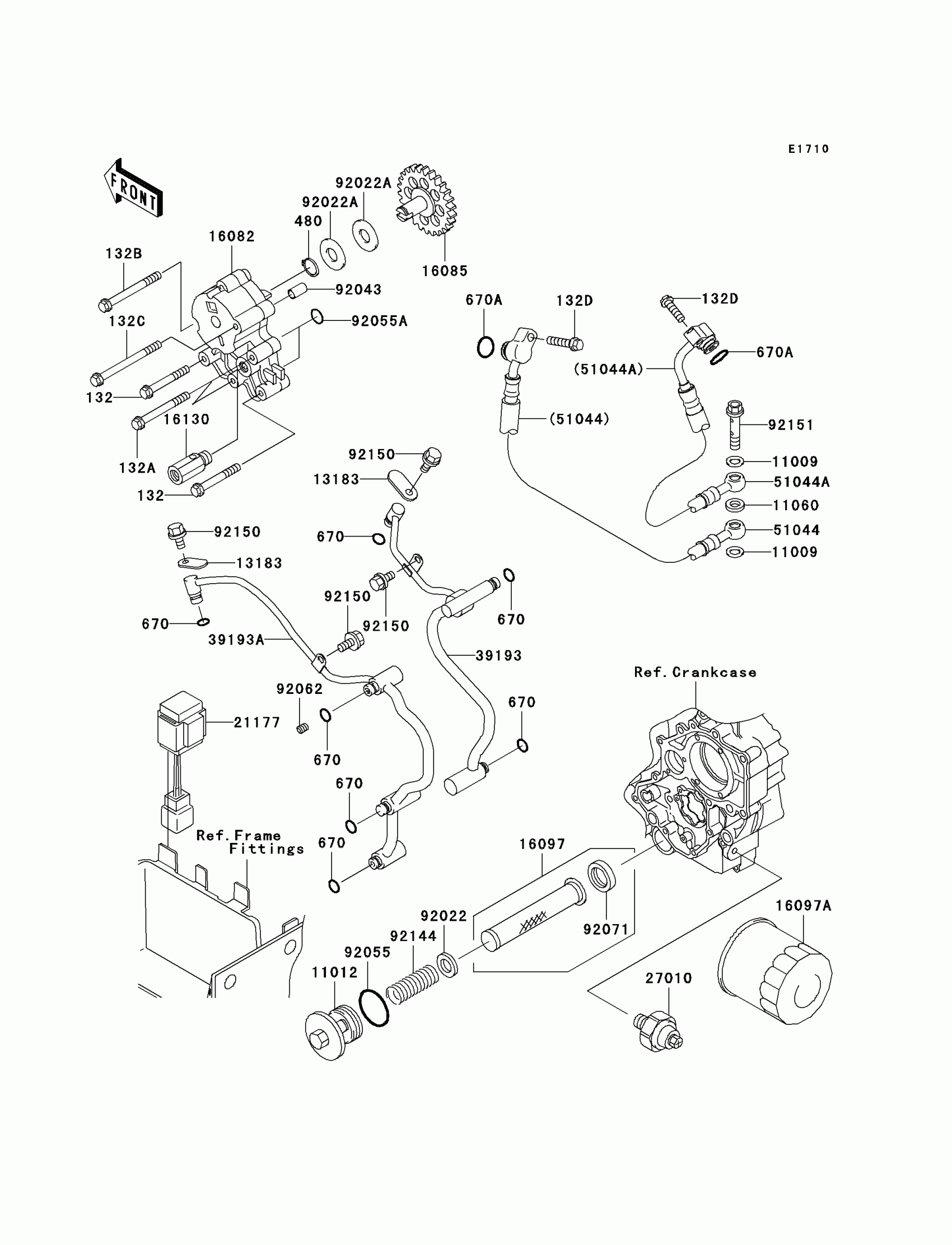

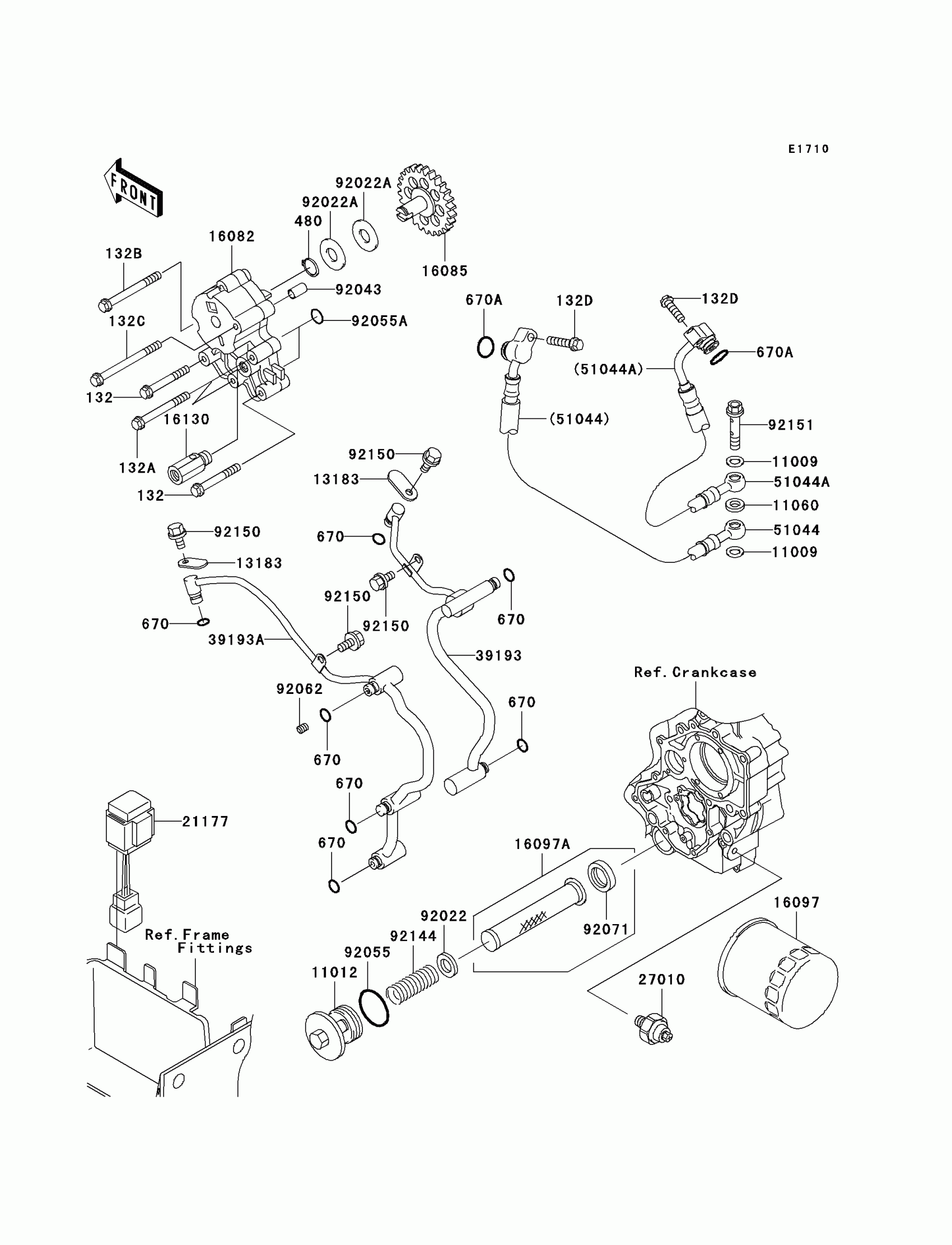

Kawasaki Vulcan 1600 Nomad Oil Pump/Oil Filter Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X45

132G0645

$4.15

132A

BOLT-FLANGED-SMALL,6X55

132G0655

$2.62

132B

BOLT-FLANGED-SMALL,6X60

132G0660

$3.84

132C

BOLT-FLANGED-SMALL,6X70

132G0670

$3.57

132D

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

670

O RING,8MM

670D1508

$4.31

670A

O RING,10MM

670D2010

$1.94

11009

GASKET,8.2X14X1.0

11009-1344

$3.17

11012

CAP,OIL FILTER

11012-1461

$45.18

11060

GASKET,PIPE JOINT

11060-1739

$3.10

13183

PLATE

13183-1071

$5.59

16082

PUMP-ASSY-OIL

16082-1155

$327.88

16085

GEAR,OIL PUMP,39T

16085-1345

$93.28

16097

FILTER-ASSY-OIL

16097-1058

$14.37

16097A

FILTER-ASSY-OIL

16097-1072

$14.50

16130

VALVE-ASSY-RELIEF

16130-1059

$41.98

21177

CONTROLLER,OIL LAMP

21177-1058

$134.78

27010

SWITCH,OIL PRESSURE

27010-1360

$42.79

39193

PIPE-OIL

39193-1071

$118.89

39193A

PIPE-OIL

39193-1072

$118.89

51044

TUBE-ASSY,FR

51044-0011

$182.20

51044A

TUBE-ASSY,RR

51044-0012

$201.64

92022

WASHER,20.1X28X1

92022-1547

$4.31

92022A

WASHER,12X27.5X1.0

92022-1852

$5.11

92043

PIN,6.2X8X14

92043-1263

$0.43

92055

RING-O,35.2X2.4

92055-1358

$7.34

92055A

RING-O,13.2X2.4

92055-1373

$5.24

92062

NOZZLE,6X8,GREEN

92062-1078

$4.69

92071

GROMMET,OIL STRAINER

92071-100

$5.46

92144

SPRING

92144-1106

$6.51

92150

BOLT,6X12

92150-1868

$3.32

92151

BOLT,8X35

92151-1355

$13.77
