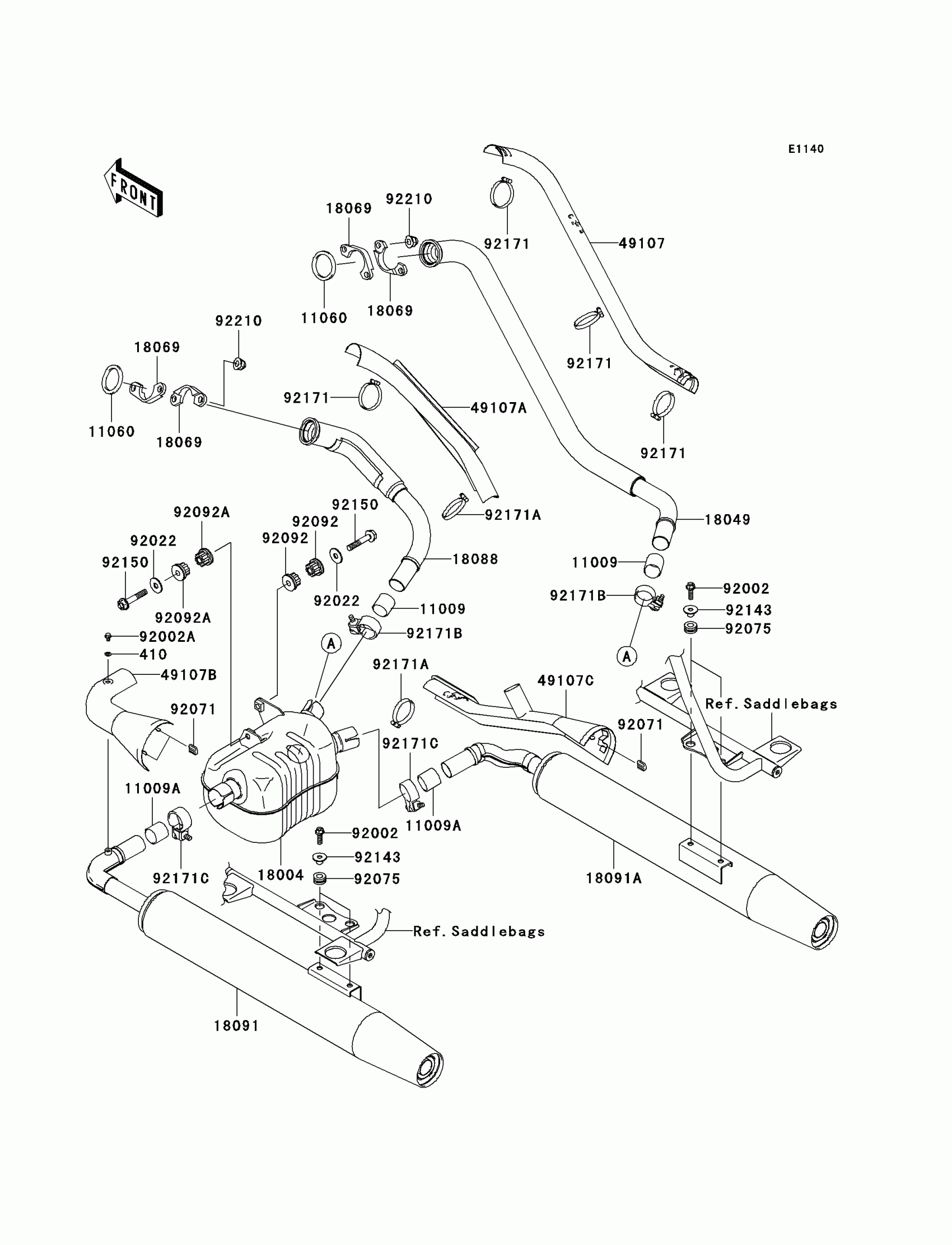

Kawasaki Vulcan® 1600 Nomad™ Muffler(s) Diagram

#

Description
Price

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$22.90

11009A

GASKET,MUFFLER CONNECTING

11009-1865

Unavailable

11060

GASKET,EXHAUST PIPE

11060-1119

$9.58

18004

CHAMBER-PREMUFFLER

18004-0004

$1,109.75

18049

PIPE-EXHAUST,FR

18049-1906

$457.39

18069

HOLDER-EXHAUST PIPE

18069-1161

$35.53

18088

PIPE-EXHAUST,RR

18088-1100

$439.53

18091

BODY-COMP-MUFFLER

18091-0199

$775.29

18091A

BODY-COMP-MUFFLER

18091-0200

$775.29

49107

COVER-EXHAUST PIPE,FRONT

49107-0015

$210.00

49107A

COVER-EXHAUST PIPE,RR

49107-0055

Unavailable

49107B

COVER-EXHAUST PIPE,LH

49107-1158

$183.72

49107C

COVER-EXHAUST PIPE,RH

49107-1180

$318.61

92002

BOLT,8X25

92002-1591

$5.00

92002A

BOLT,6X8

92002-1604

$5.24

92022

WASHER,10.5X30X2.3,BLACK

92022-1302

$7.24

92071

GROMMET

92071-1270

$7.22

92075

DAMPER

92075-1898

$4.69

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$17.44

92092A

BUSHING-RUBBER

92092-1081

$24.82

92143

COLLAR

92143-1753

$7.84

92150

BOLT,10X55

92150-1749

$7.69

92171

CLAMP

92171-0058

$9.73

92171A

CLAMP

92171-0059

$7.98

92171B

CLAMP,CHAMBER-EX PIPE

92171-0061

$24.35

92171C

CLAMP,CHAMBER-MUFFLER

92171-0062

$24.05

92210

NUT,CAP,8MM

92210-1132

$4.18
