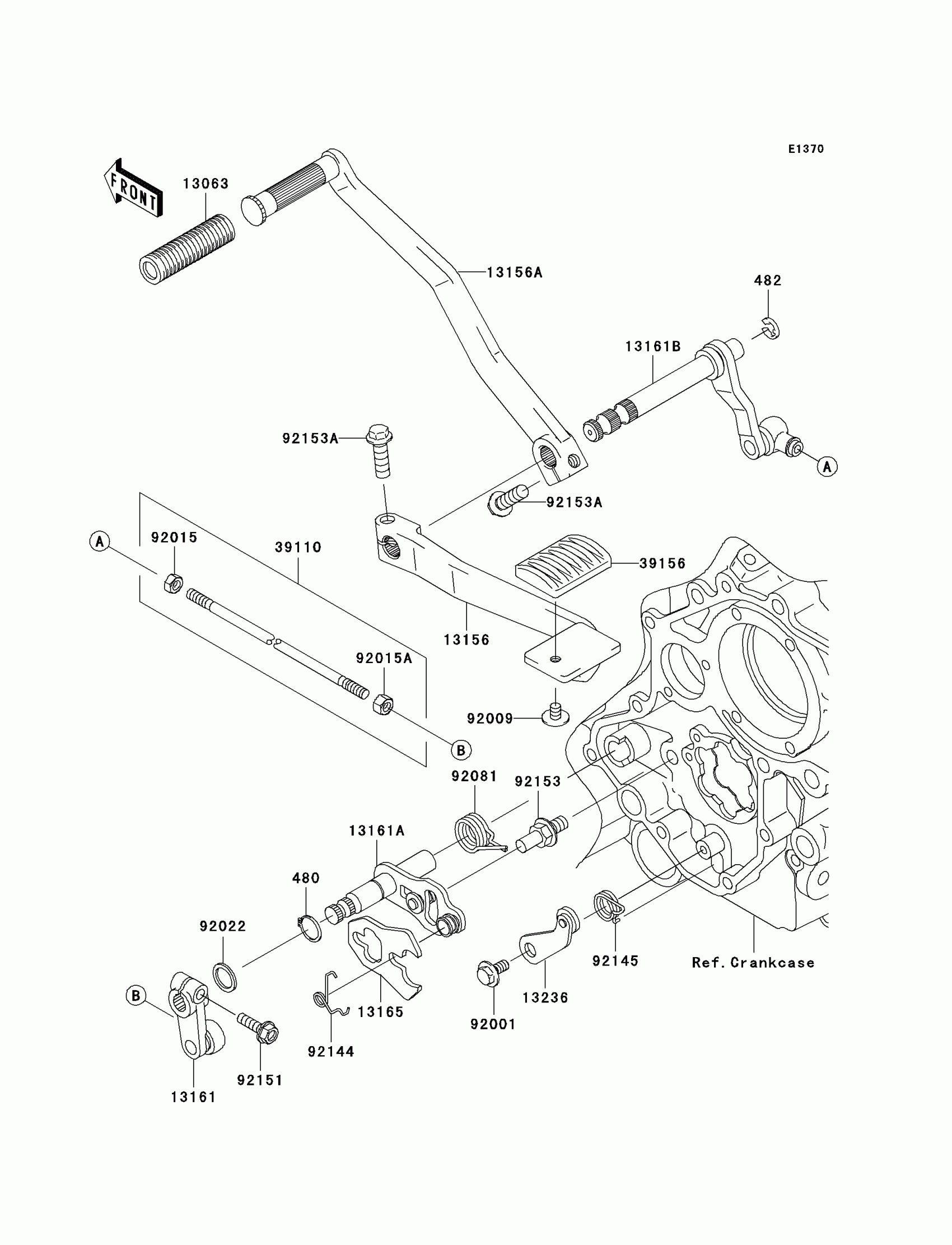

Kawasaki Vulcan 1600 Nomad Gear Change Mechanism Diagram

Description

Price

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.66

13063

DAMPER,PEDAL

13063-002

$3.44

13156

LEVER-CHANGE,PEDAL,RR

13156-0019

$94.23

13156A

LEVER-CHANGE,PEDAL,FR

13156-0026

$107.74

13161

LEVER-COMP-CHANGE SHAFT

13161-1253

Unavailable

13161A

LEVER-COMP-CHANGE SHAFT

13161-1254

Unavailable

13161B

LEVER-COMP-CHANGE SHAFT

13161-1294

$84.59

13165

PAWL

13165-1120

$13.39

13236

LEVER-COMP,POSITION

13236-1126

$12.95

39110

ROD-ASSY-TIE

39110-1119

$14.56

39156

PAD

39156-1641

$8.88

92001

BOLT,FLANGED,6X14

92001-1715

$10.25

92009

SCREW,6X8

92009-1677

$3.29

92015

NUT,6MM

92015-1443

$2.99

92015A

NUT,LEFT HANDED,6MM

92015-1444

$3.57

92022

WASHER,13.2X20X0.5

92022-1224

$3.29

92081

SPRING,CHANGE PEDAL RETURN

92081-1869

$9.85

92144

SPRING

92144-1029

$5.93

92145

SPRING,RETURN

92145-0008

$8.85

92151

BOLT,FLANGED,6X20

92151-1226

$1.76

92153

BOLT,RETURN SPRING

92153-1076

$8.81

92153A

BOLT,8X25

92153-1268

$2.58
