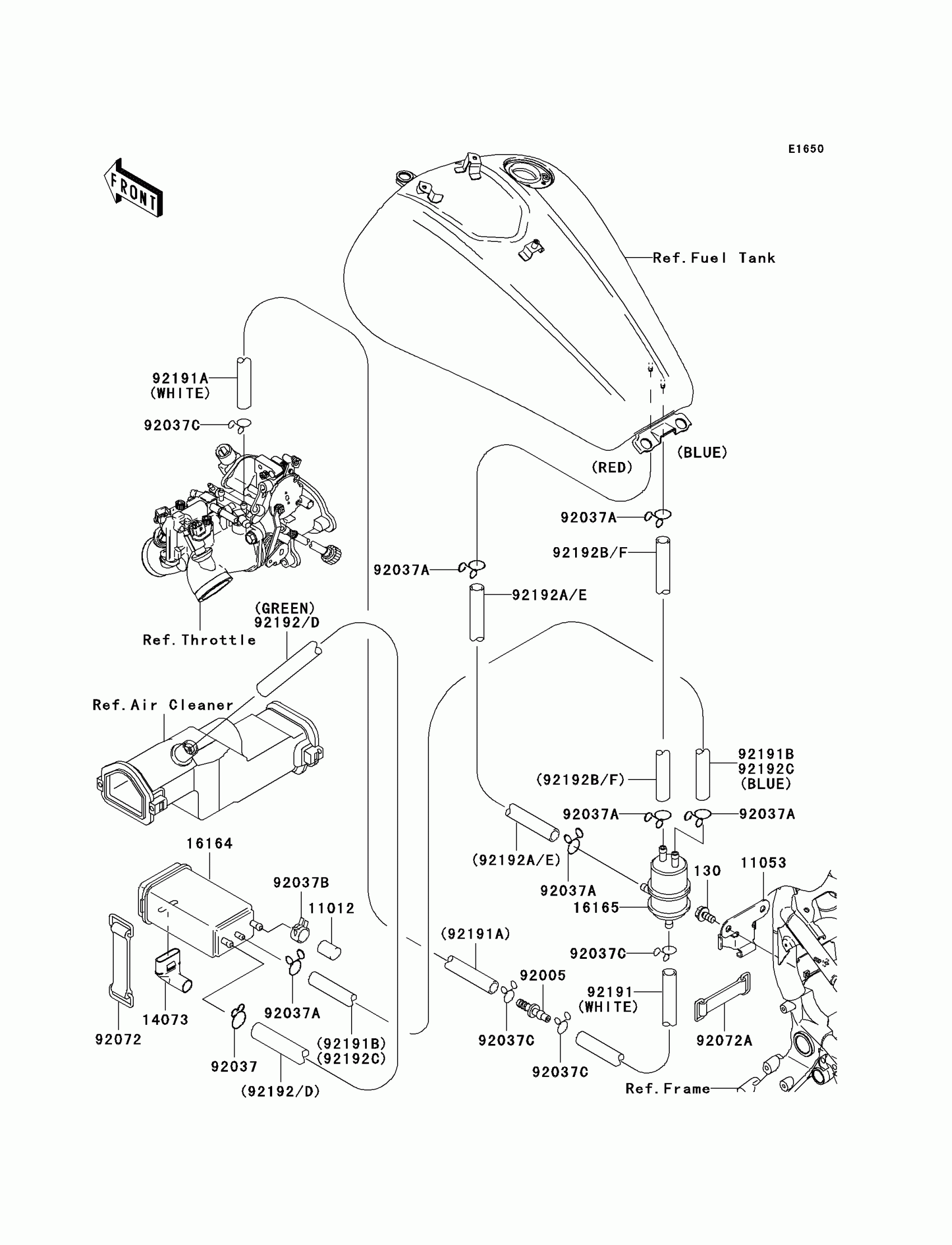

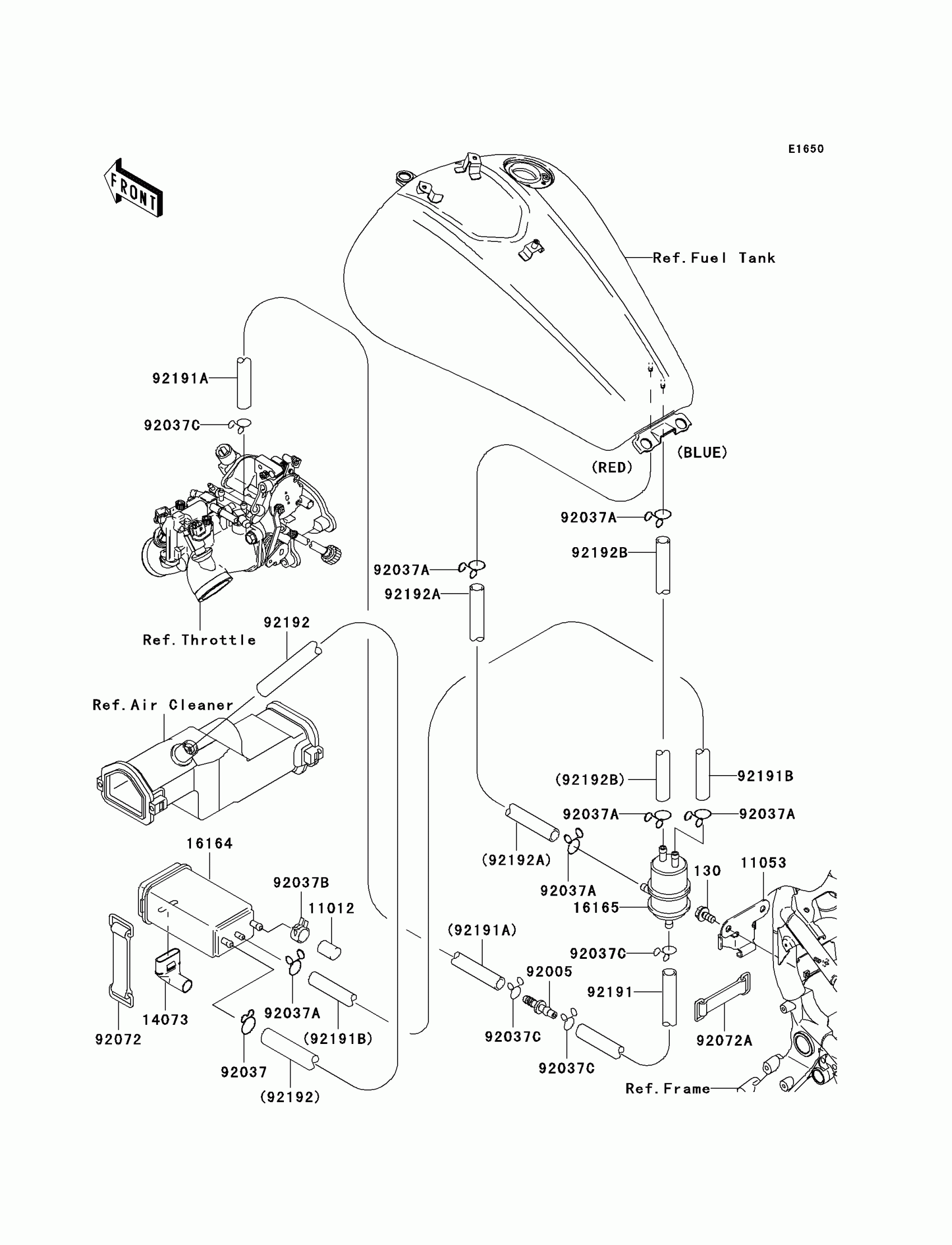

Kawasaki Vulcan® 1600 Nomad™ Fuel Evaporative System(CA) Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.51

11053

BRACKET,EVAPO

11053-0006

$7.62

14073

DUCT,CANISTER

14073-1219

$20.80

16164

CANISTER

16164-1070

$145.42

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING

92005-1206

$8.68

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,CANISTER

92037-1512

$6.57

92037C

CLAMP

92037-1712

$5.00

92072

BAND,L=90

92072-045

$14.90

92072A

BAND,L=50

92072-1419

$16.08

92191

TUBE,THROTTLE-SEPARATOR,WHITE

92191-1375

$24.55

92191A

TUBE,4X9X180,WHITE

92191-1414

$5.54

92192C

TUBE,SEPARATOR-CANISTER,BLUE

92192-0546

$43.53

92192D

TUBE,CANISTER-FILTER,GREEN

92192-0547

$69.45

92192E

TUBE,TANK-SEPARATOR,RED

92192-0548

$48.19

92192F

TUBE,TANK-SEPARATOR,BLUE

92192-0549

$36.20

130

BOLT-FLANGED,6X12

130J0612

$2.19
