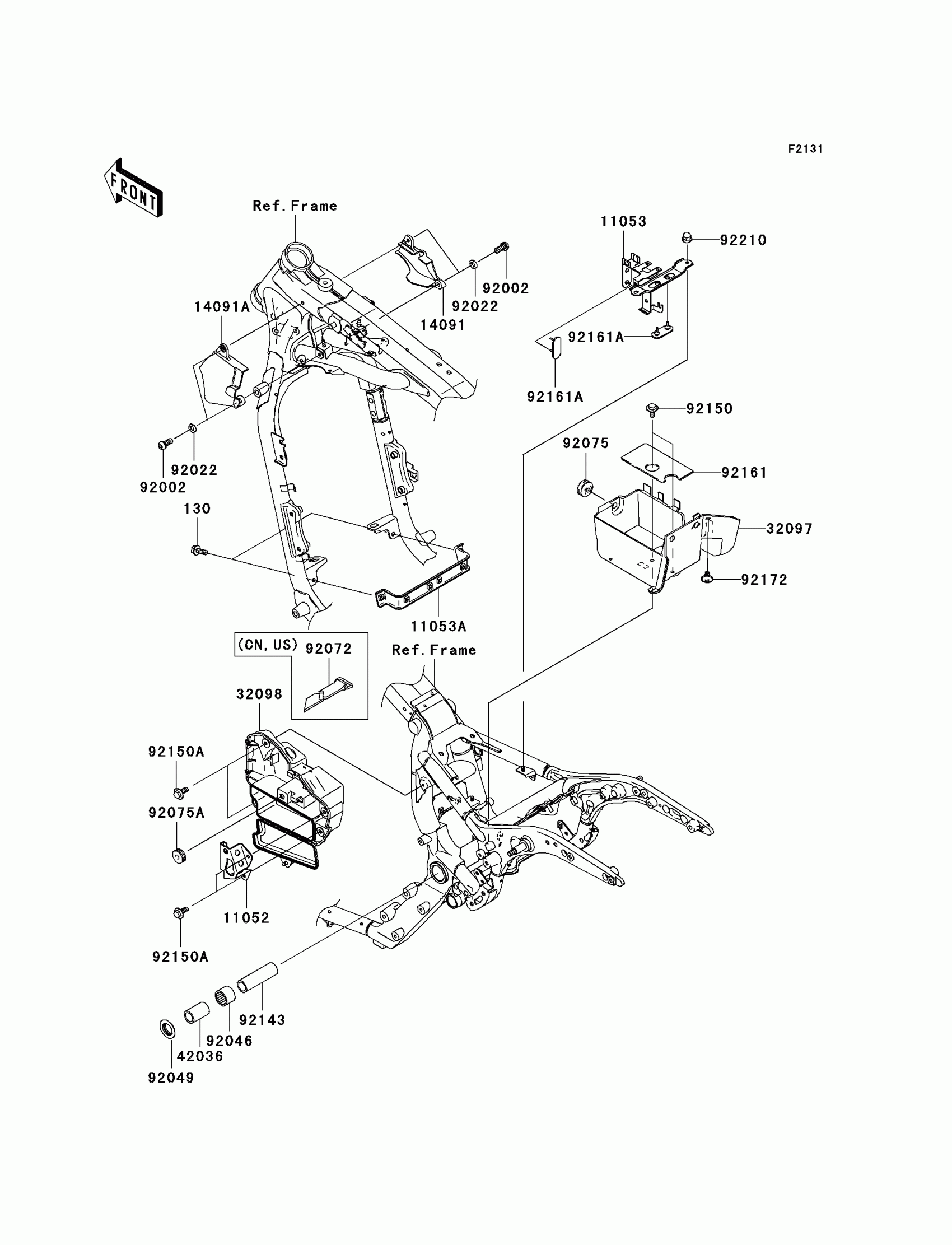

Kawasaki Vulcan® 1600 Nomad™ Frame Fittings Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

11052

BRACKET,SIDE COVER LOCK

11052-1234

$22.68

11053

BRACKET,BATTERY BAND

11053-0289

$14.99

11053A

BRACKET,REGULATOR

11053-0434

$34.73

14091B

COVER,HEAD PIPE,RH

14091-0852

$20.79

14091C

COVER,HEAD PIPE,LH

14091-0853

$20.79

32097

CASE-BATTERY

32097-1192

$41.22

32098

CASE-TOOL

32098-1137

$145.59

42036

SLEEVE,L=45

42036-1330

$29.70

92002

BOLT,6X14

92002-1700

$6.27

92022

WASHER-PLAIN

92022-183

$3.92

92046

BEARING-NEEDLE,BM2824

92046-1202

$25.10

92049

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92075

DAMPER

92075-1067

$4.69

92075A

DAMPER

92075-1629

$5.00

92143

COLLAR,20.2X27X90

92143-1878

$34.47

92150

BOLT,6X14

92150-1133

$4.31

92150A

BOLT,6X16

92150-1198

$4.13

92161

DAMPER,BATTERY

92161-1097

$6.57

92161A

DAMPER,BATTERY BAND

92161-1214

$4.38

92172

SCREW,6X10

92172-0005

$2.41

92210

NUT,CAP,6MM

92210-0003

$0.64

92072

BAND,L=470

92072-1331

$24.84
