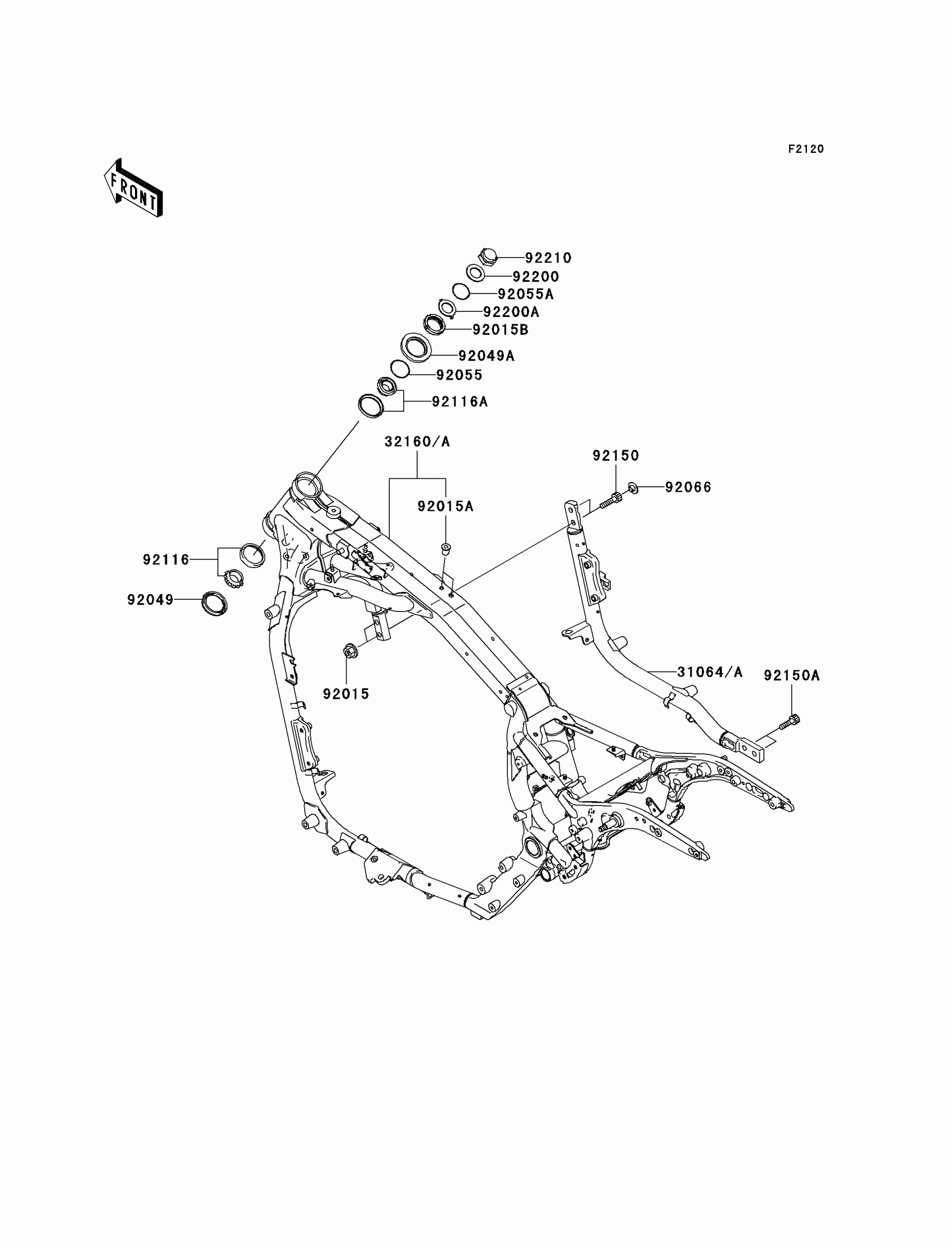

Kawasaki Vulcan® 1600 Nomad™ Frame Diagram

Description

Price

31064

PIPE-COMP,DOWN TUBE,RH,BLACK

31064-0042-18R

$561.94

32160A

FRAME-COMP

32160-0267

$2,835.26

92015

NUT,FLANGED,10MM

92015-1727

$4.31

92015A

NUT,POP,6MM,L=16.5

92015-1792

$4.69

92015B

NUT,STEERING STEM,35MM

92015-1848

$44.08

92049

SEAL-OIL,XMHE 43 55 4J

92049-1383

$19.64

92049A

SEAL-OIL,MX043N2

92049-1483

$20.39

92055

RING-O,34.5X2.0

92055-1452

$5.24

92055A

RING-O,ID=24.5

92055-1459

$4.73

92066

PLUG

92066-1562

$9.24

92116

BEARING-ROLLER,32907JR-2

92116-1072

$71.91

92116A

BEARING-ROLLER,32907JR-3

92116-1074

$71.91

92150

BOLT,SOCKET,10X30

92150-1690

$6.22

92150A

BOLT,SOCKET,10X23

92150-1942

$7.34

92200

WASHER,25.5X42X2.3

92200-0105

$4.56

92200A

WASHER,CLAW,25.5X40X2.3

92200-1083

$6.57

92210

NUT,CAP,25MM

92210-1166

$23.99
