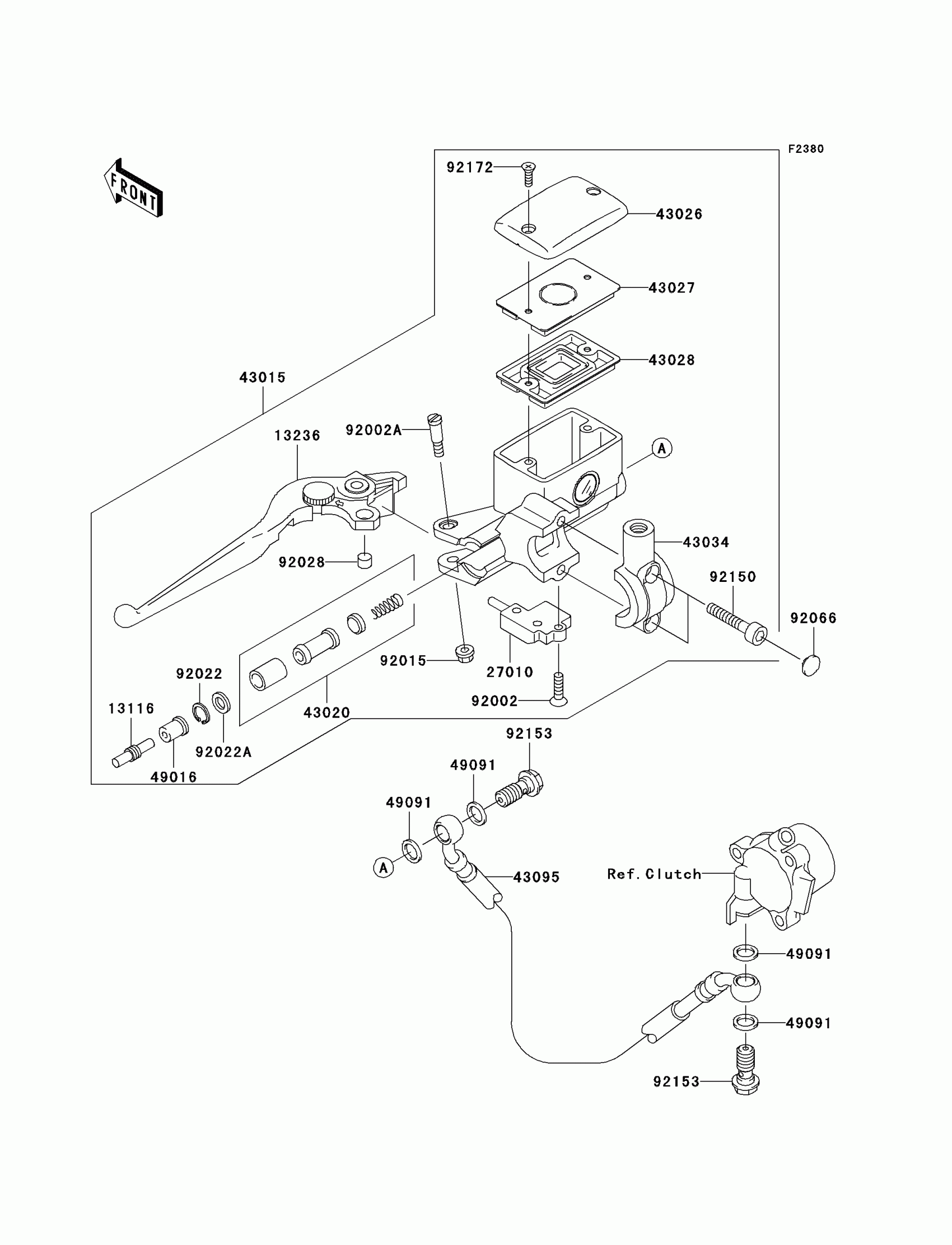

Kawasaki Vulcan 1600 Nomad Clutch Master Cylinder Diagram

Description

Price

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

$33.39

13236

LEVER-COMP,CLUTCH

13236-1316

$54.48

27010

SWITCH,CLUTCH

27010-1406

$32.18

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-0035

$476.30

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

$58.51

43026

CAP-BRAKE

43026-0003

$74.50

43027

PLATE-DIAPHRAGM

43027-1059

$5.78

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE

43034-1172

$38.17

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43095

HOSE-BRAKE,CLUTCH

43095-0033

$144.63

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92002

SCREW,4X16

92002-1325

$7.83

92002A

BOLT,LEVER SET

92002-1561

$11.22

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92022

CIRCLIP

92022-1605

$3.81

92022A

WASHER,PISTON

92022-1606

$3.57

92028

BUSHING,MASTER CYLINDER

92028-1310

$11.20

92066

PLUG

92066-1301

$4.59

92150

BOLT,SOCKET,6MM

92150-1025

$7.56

92153

BOLT,OIL,L=23

92153-0627

$4.15

92172

SCREW

92172-0083

$3.34
