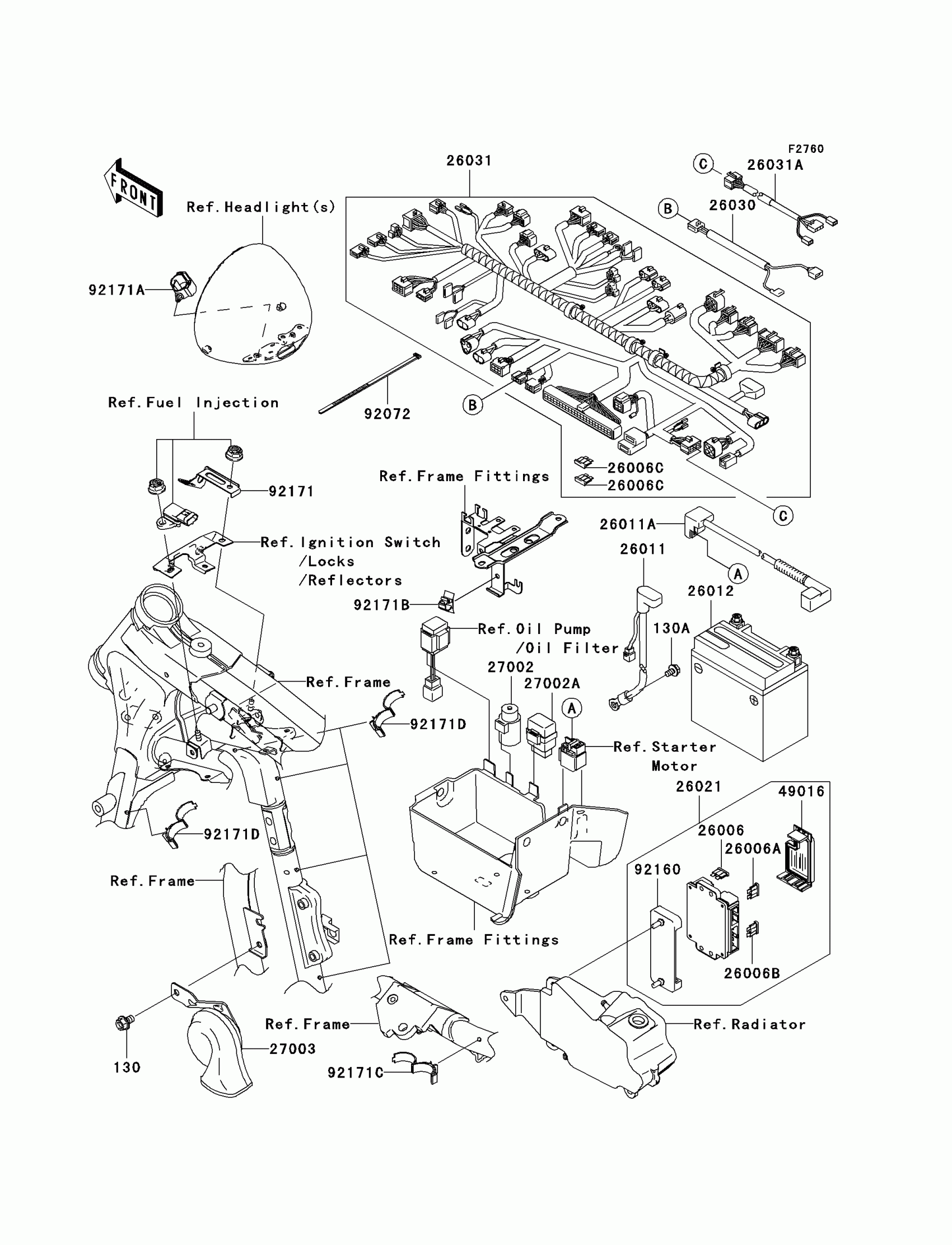

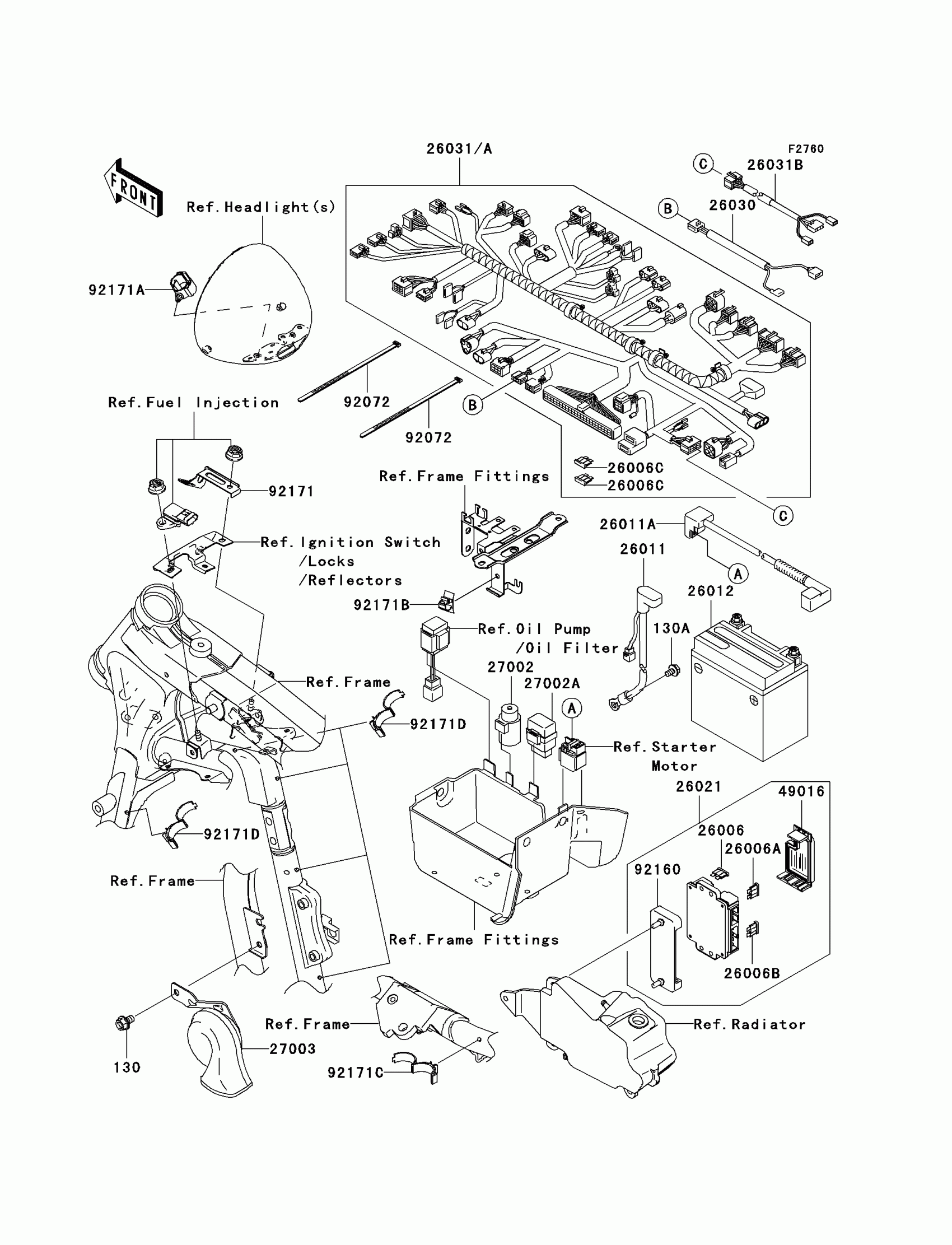

Kawasaki Vulcan 1600 Nomad Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,8X12

130J0812

$0.67

130A

BOLT-FLANGED,6X10

130V0610

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26006A

FUSE,BLADE,10A,RED

26006-1007

$4.96

26006B

FUSE,BLADE,15A,BLUE

26006-1061

$5.46

26006C

FUSE,15A

26006-1075

$5.56

26011

WIRE-LEAD,BATTERY(-)

26011-0007

$64.02

26011A

WIRE-LEAD,BATTERY(+)

26011-0018

$54.12

26012

BATTERY,MF,FTZ16-BS,12V 18AH

26012-1371

Unavailable

26021

JUNCTION BOX

26021-0002

Unavailable

26030

HARNESS,SUB

26030-1450

$20.98

26031

HARNESS,MAIN

26031-0317

$616.45

26031A

HARNESS,TAIL

26031-1077

$124.44

27002

RELAY-ASSY

27002-1051

$52.57

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1113

$115.95

27003

HORN

27003-0027

$88.20

49016

COVER-SEAL,FUSE

49016-0005

$9.82

92072

BAND,L=365

92072-1197

$7.84

92160

DAMPER,JUNCTION BOX

92160-1650

$13.44

92171

CLAMP,HARNESS COUPLER

92171-0065

$9.33

92171A

CLAMP,20MM DIA.

92171-0069

$2.80

92171B

CLAMP,HARNESS

92171-1269

$4.62

92171C

CLAMP,10MM DIA.

92171-1423

$4.18

92171D

CLAMP,DIA=15

92171-1424

$4.18
