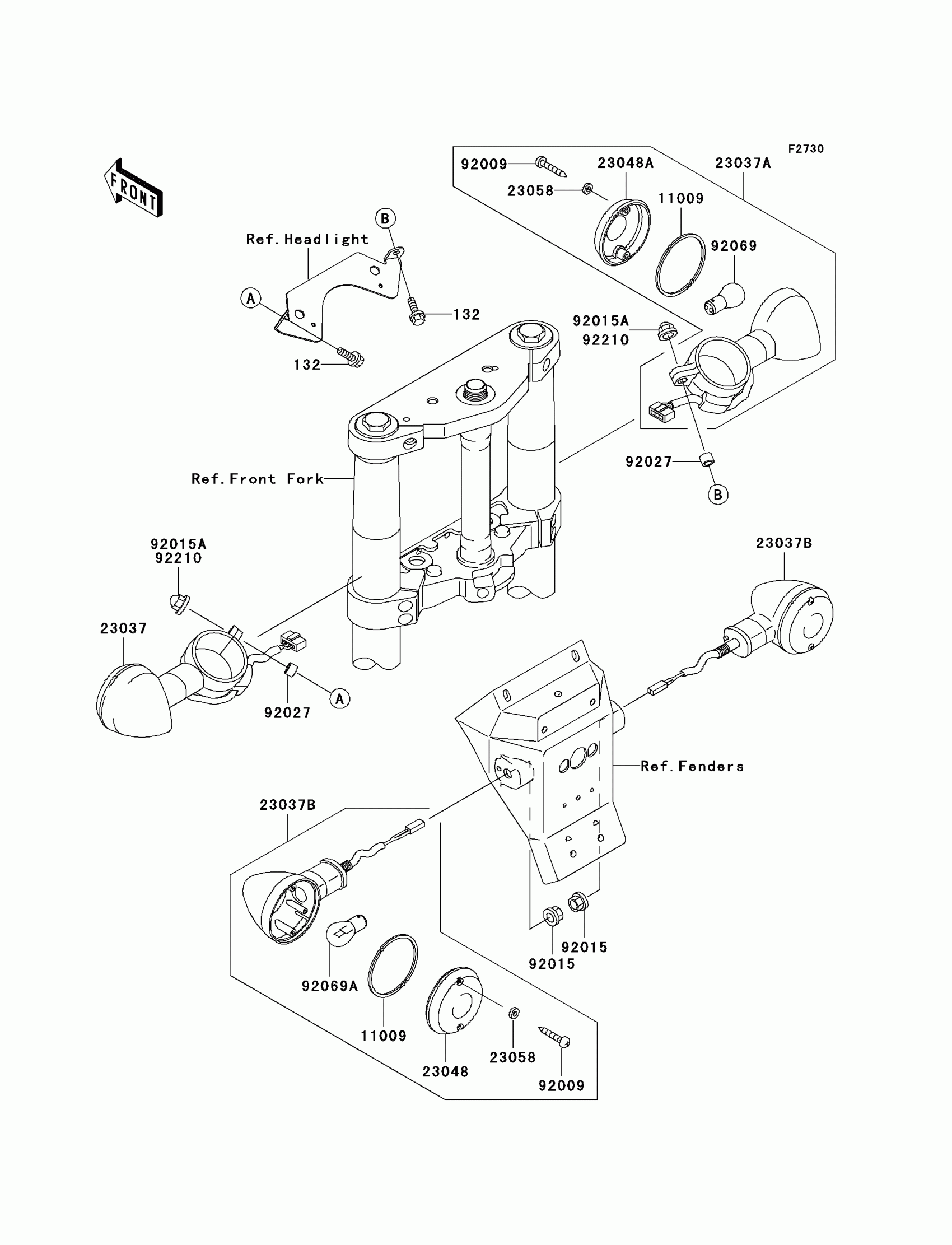

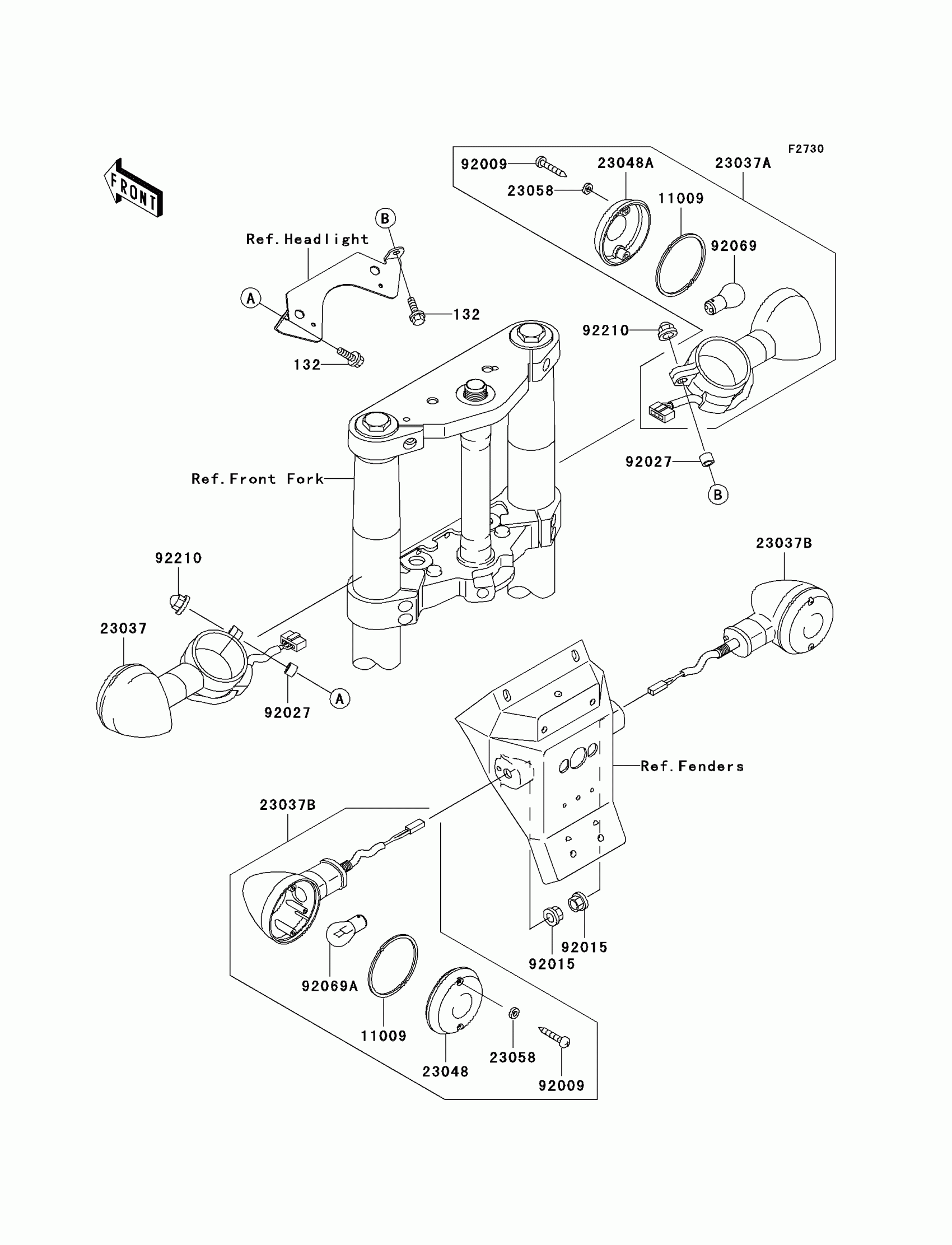

Kawasaki Vulcan 1600 Mean Streak Turn Signals Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132E0620

$4.44

11009

GASKET,SIGNAL LAMP

11009-1413

$4.96

23037

LAMP-ASSY-SIGNAL,FR,LH

23037-1405

$87.94

23037A

LAMP-ASSY-SIGNAL,FR,RH

23037-1406

$87.94

23037B

LAMP-ASSY-SIGNAL,RR

23037-1412

$82.92

23048

LENS-SIGNAL LAMP,RR

23048-1065

$9.53

23048A

LENS-SIGNAL LAMP,FR

23048-1066

$9.53

23058

WASHER,PLAIN,4MM

23058-002

$2.49

92009

SCREW,TAPPING,4X25

92009-1637

$3.92

92015

NUT,10MM

92015-1356

$3.74

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 21/5W

92069-063

$9.31

92069A

Not Available As Spare Part - Friction Washer

Unavailable

92210

NUT,CAP,6MM

92210-0141

$3.24
