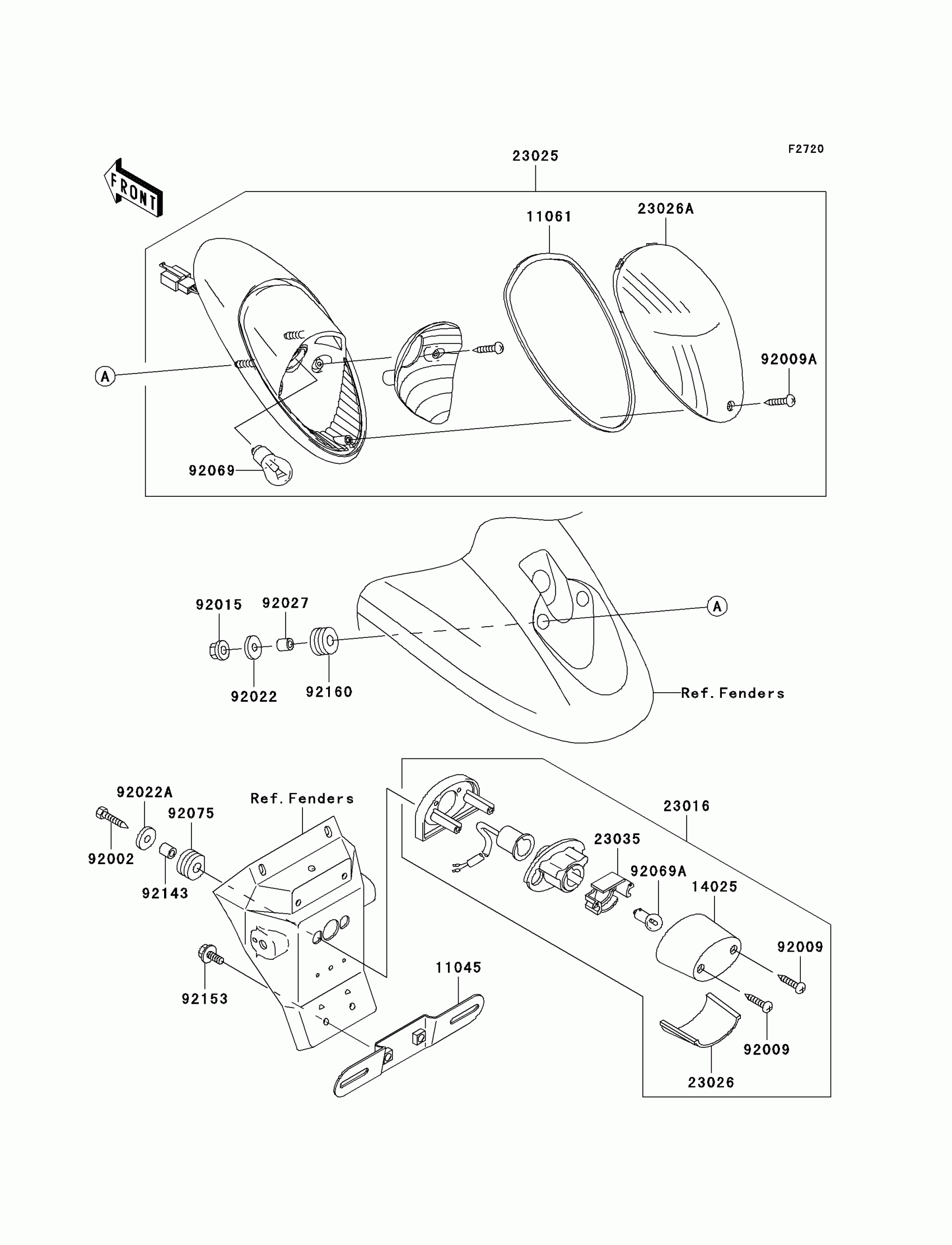

Kawasaki Vulcan® 1600 Mean Streak® Taillight(s) Diagram

Description

Price

11045

BRACKET,LICENSE

11045-1387

$16.69

11061

GASKET,TAIL LAMP LENS

11061-1089

$7.90

14025

COVER,LICENSE LAMP

14025-1725

$18.40

23016

LAMP-ASSY,LICENSE

23016-1194

$79.19

23025

LAMP-TAIL

23025-1317

$493.76

23026

LENS,LICENSE LAMP

23026-1064

$26.12

23026A

LENS,TAIL LAMP

23026-1246

$71.34

23035

REFLECTOR-LAMP,LICENSE

23035-1066

$19.16

92009

SCREW,TAPPING,4X20

92009-1378

$4.10

92009A

SCREW,TAPPING,4X16

92009-1966

$2.41

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,6.5X20X1.6

92022-1557

$1.40

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 21/5W

92069-063

$9.31

92069A

BULB,12V 5W

92069-1055

$5.18

92075

DAMPER

92075-1870

$5.00

92152

COLLAR,6X9X11.5

92152-0372

$2.61

92153

BOLT,6X16

92153-0684

$4.49

92153A

BOLT,TAPPING,5X25

92153-1424

$1.00

92160

DAMPER

92160-1162

$5.00

92200

WASHER,5.5X20X1.2

92200-0284

$2.15
