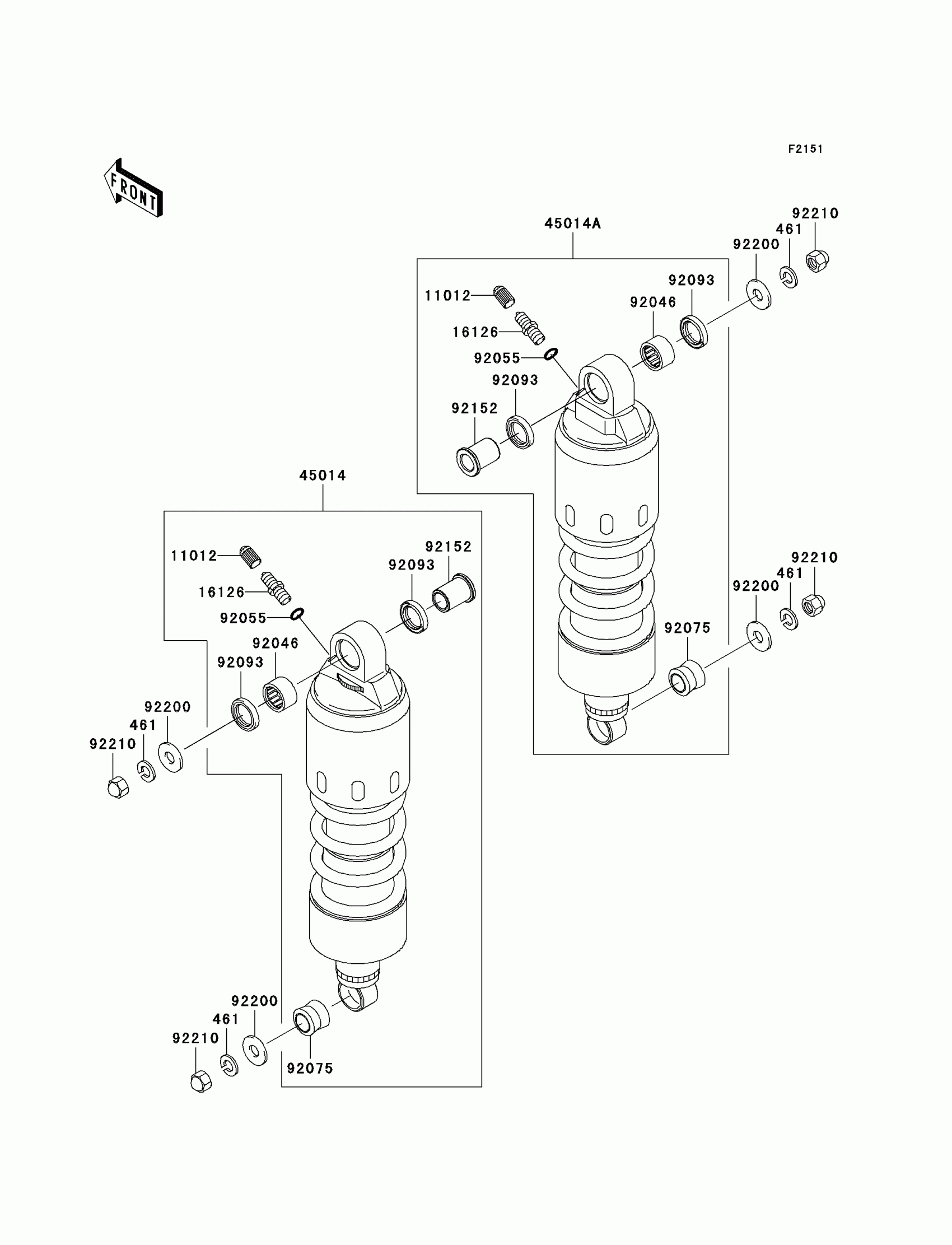

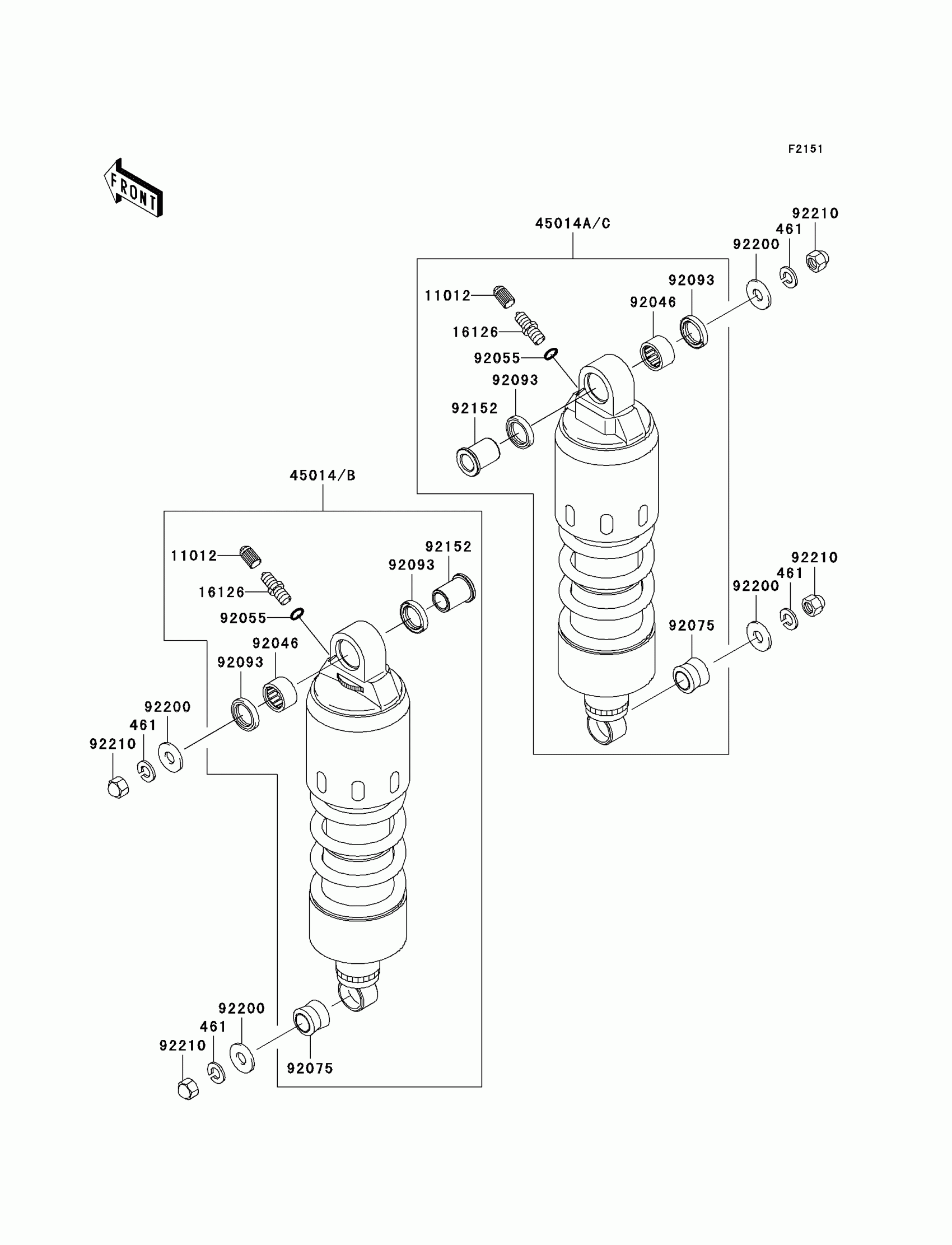

Kawasaki Vulcan® 1600 Mean Streak® Suspension/Shock Absorber Diagram

Description

Price

461

WASHER-SPRING,10MM

461S1000

$1.03

11012

CAP

11012-1283

$8.51

16126

VALVE,AIR

16126-1105

$39.05

92046

BEARING-NEEDLE

92046-1296

$9.96

92055

RING-O

92055-1130

$2.46

92075

DAMPER,SHOCKABSORBER

92075-1387

$14.90

92093

SEAL

92093-1552

$9.34

92152

COLLAR

92152-1336

$7.65

92200

WASHER,10.5X26X2.5

92200-1565

$2.80

92210

NUT,CAP,10MM

92210-1288

$5.59

45014

SHOCKABSORBER,LH

45014-0029

$779.61

45014A

SHOCKABSORBER,RH

45014-0030

$779.61

45014B

SHOCKABSORBER,LH,BLACK

45014-0159-10

$801.28

45014C

SHOCKABSORBER,RH,BLACK

45014-0160-10

$801.28
