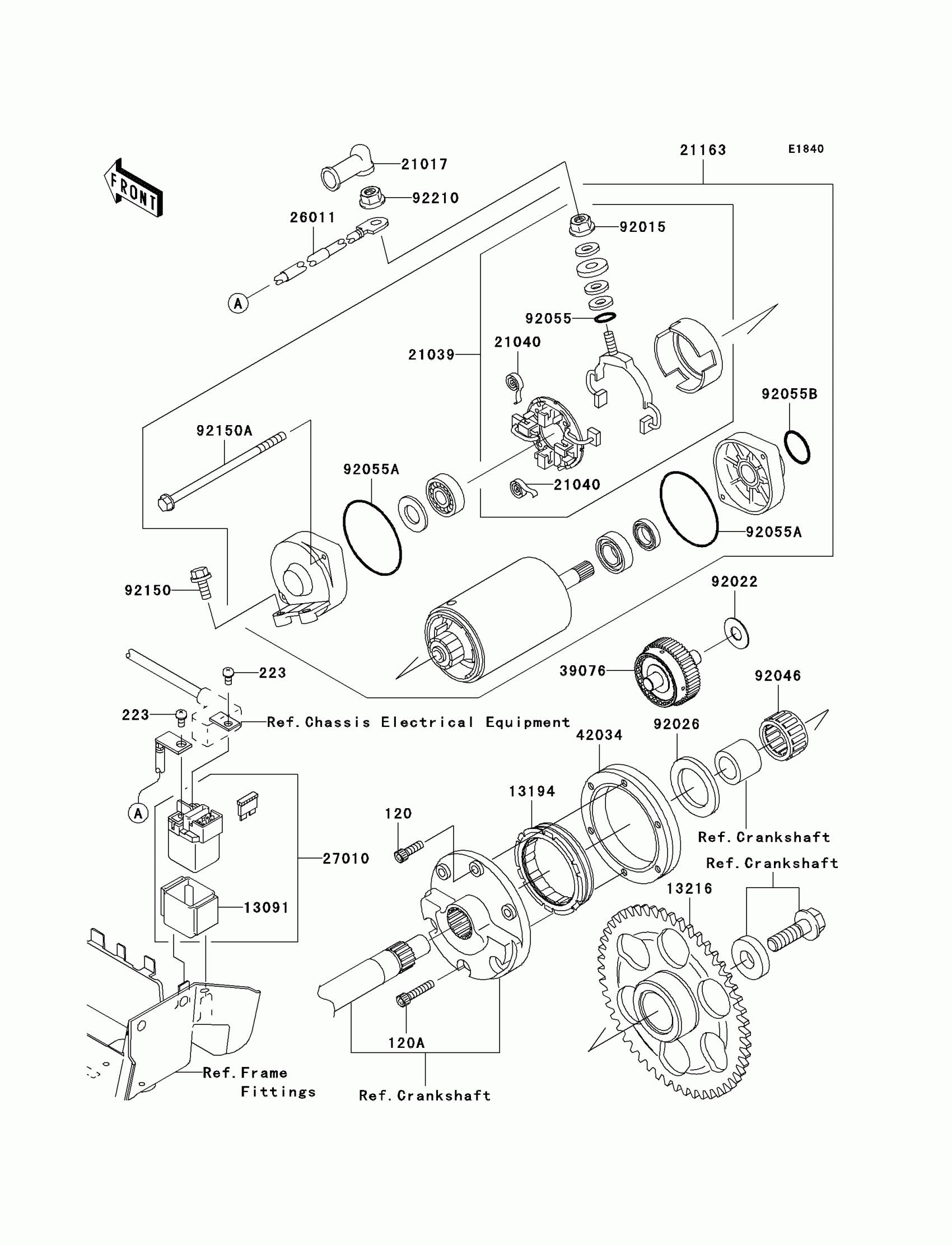

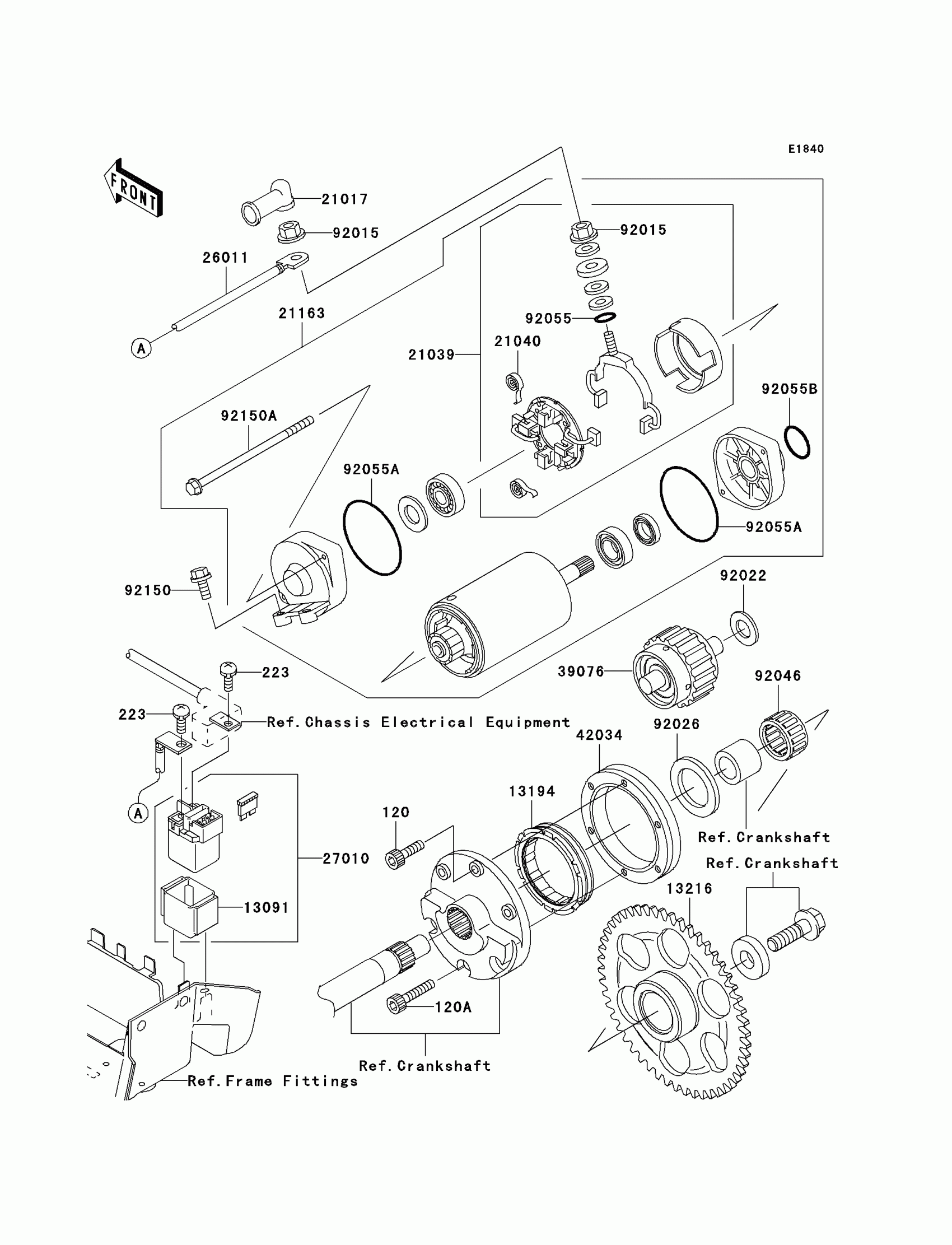

Kawasaki Vulcan® 1600 Mean Streak® Starter Motor Diagram

Description

Price

120

BOLT-SOCKET,6X20

120S0620

Unavailable

120A

BOLT-SOCKET,6X30

120S0630

$2.95

223

SCREW-PAN-WS-CROS,5X10

223D0510

Unavailable

13091

HOLDER,MAGNETIC SWITCH

13091-1884

$12.45

13194

CLUTCH-ONEWAY

13194-1088

$166.48

13216

GEAR-COMP,FREE WHEEL

13216-0019

$167.23

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21039

BRUSH,CARBON

21039-1060

$84.32

21040

SPRING-BRUSH

21040-1055

$8.42

21163

STARTER-ELECTRIC

21163-1271

$630.06

26011

WIRE-LEAD

26011-0081

$108.78

27010

SWITCH,MAGNETIC

27010-1327

Unavailable

39076

LIMITER,STARTER TORQUE

39076-0003

$269.04

42034

COUPLING

42034-1093

$97.19

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,12X27.5X1.0

92022-1852

$5.11

92026

SPACER,31X49.5X1.2

92026-1490

$10.65

92046

BEARING-NEEDLE,K30X35X20

92046-1171

$22.53

92055

RING-O,4.5X2.0

92055-1370

$4.69

92055A

RING-O,STARTER MOTOR

92055-1381

$9.91

92055B

RING-O,37MM

92055-1393

$11.91

92150

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

92150A

BOLT,STARTER MOTOR

92150-1913

$9.51

92210

NUT,6MM

92210-0188

$2.15
