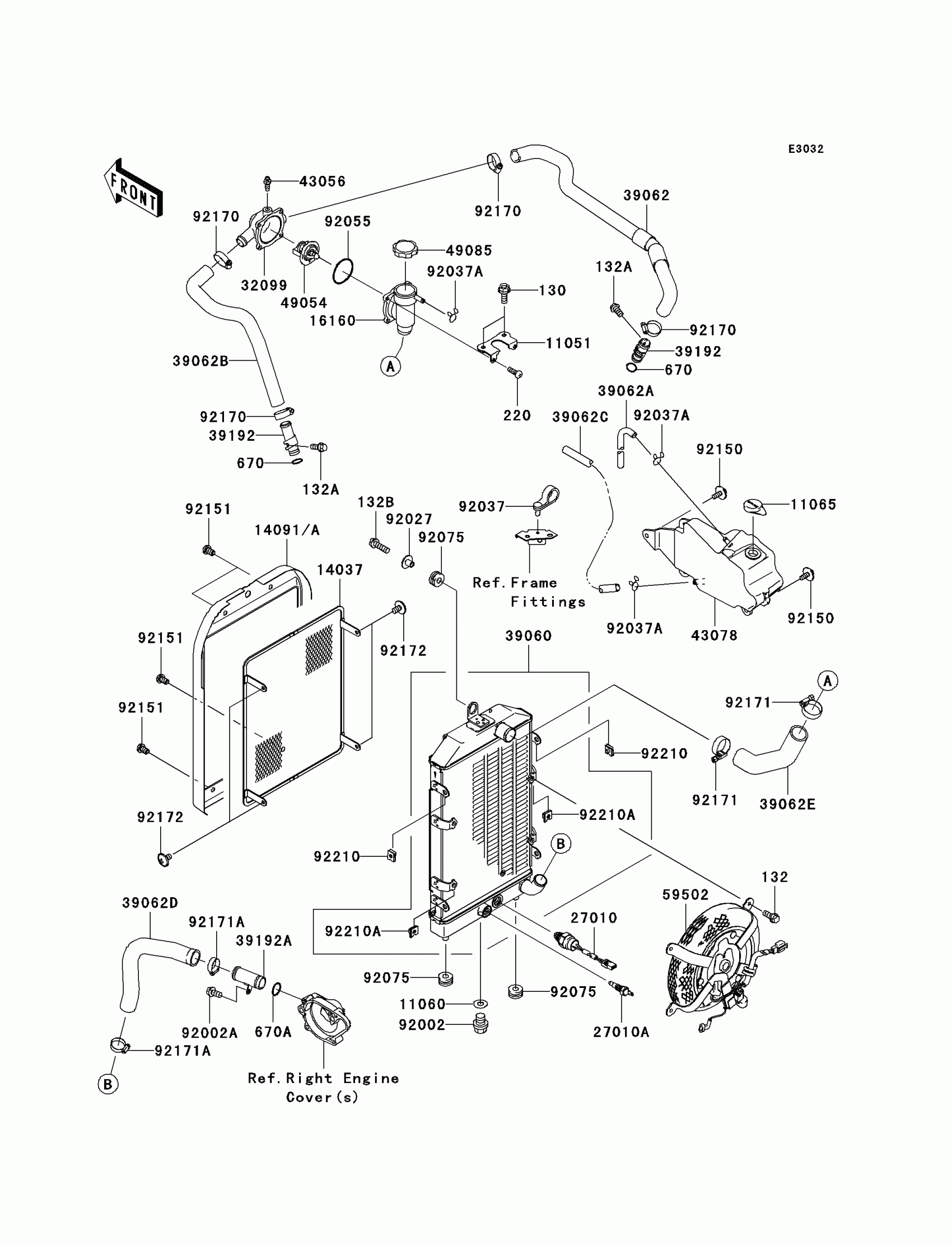

Find the part on the Radiator diagram for your 2005 Kawasaki Vulcan 1600 Mean Streak, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Vulcan 1600 Mean Streak Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11051

BRACKET,THERMOSTAT CASE

11051-1535

1
Out of stock

11060

GASKET,DRAIN PLUG

11060-1767

1
Out of stock

11065

CAP,COOLANT

11065-1093

1
Out of stock

14037

SCREEN,INNER

14037-0014

1
Out of stock

14037A

SCREEN

14037-1301

1
Out of stock

16160

BODY

16160-0038

1
Out of stock

27010

SWITCH,FAN

27010-0024

1
Out of stock

27010A

SWITCH,WARNING

27010-1305

1
Out of stock

32099

CASE,THERMOSTAT

32099-1201

1
Out of stock

39060

RADIATOR

39060-0002

1
Out of stock

39062

HOSE-COOLING,THERMO-RR CASE

39062-0030

1
Out of stock

39062A

HOSE-COOLING

39062-1258

1
Out of stock

39062B

HOSE-COOLING,FR HEAD-THERMO

39062-1785

1
Out of stock

39062C

HOSE-COOLING,THERMO-RESER

39062-1796

1
Out of stock

39062D

HOSE-COOLING,RADIATOR-PUMP

39062-1850

1
Out of stock

39062E

HOSE-COOLING,THERMO-RADIATOR

39062-1892

1
Out of stock

39192

PIPE-WATER

39192-1094

1
Out of stock

39192A

PIPE-WATER

39192-1096

1
Out of stock

43056

BREATHER

43056-003

1
Out of stock

43078

RESERVOIR

43078-1180

1
Out of stock

49054

THERMOSTAT

49054-1067

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-0002

1
Out of stock

59502A

FAN-ASSY

59502-0013

1
Out of stock

92002

BOLT,FLANGED,10X10

92002-1311

1
Out of stock

92002A

BOLT,6X12

92002-1569

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92055

RING-O,53.5X2.6

92055-112

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92150

BOLT,FLANGED,6X14,WASHER

92150-1392

1
Out of stock

92151

BOLT,6X10

92151-1809

1
Out of stock

92170

CLAMP,COOLING HOSE

92170-1032

1
Out of stock

92171

CLAMP

92171-0179

1
Out of stock

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132J0610

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

220

SCREW-PAN-CROS,5X14

220D0514

1
Out of stock

670

O RING,14MM

670B2014

1
Out of stock

670A

O RING,18MM

670B2018

1
Out of stock

92171A

CLAMP

92171-0261

1
Out of stock

92172

SCREW,6X10

92172-0005

1
Out of stock

92210

NUT

92210-1125

1
Out of stock
