2005 Kawasaki Vulcan 1600 Mean Streak Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2005 Kawasaki Vulcan 1600 Mean Streak, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

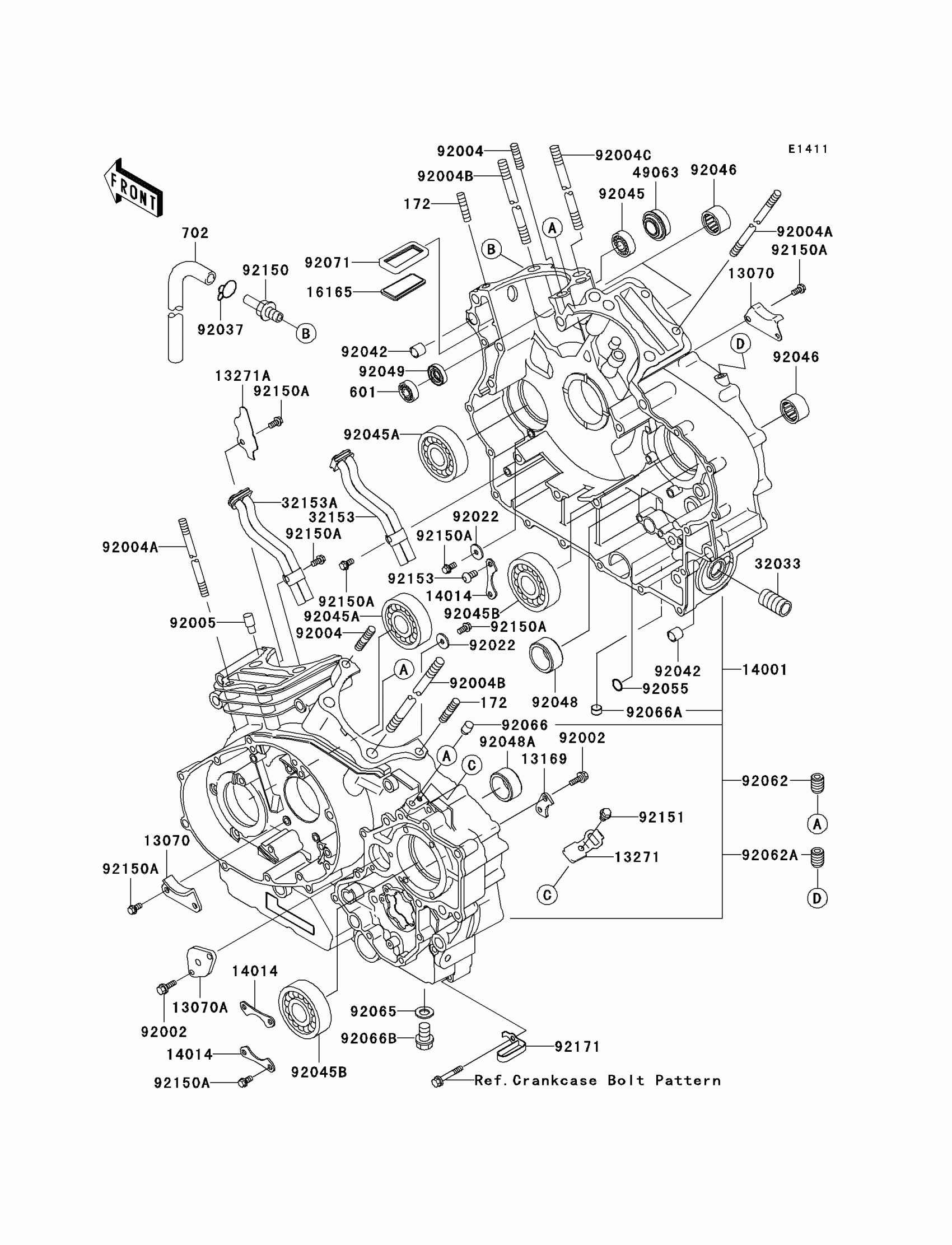

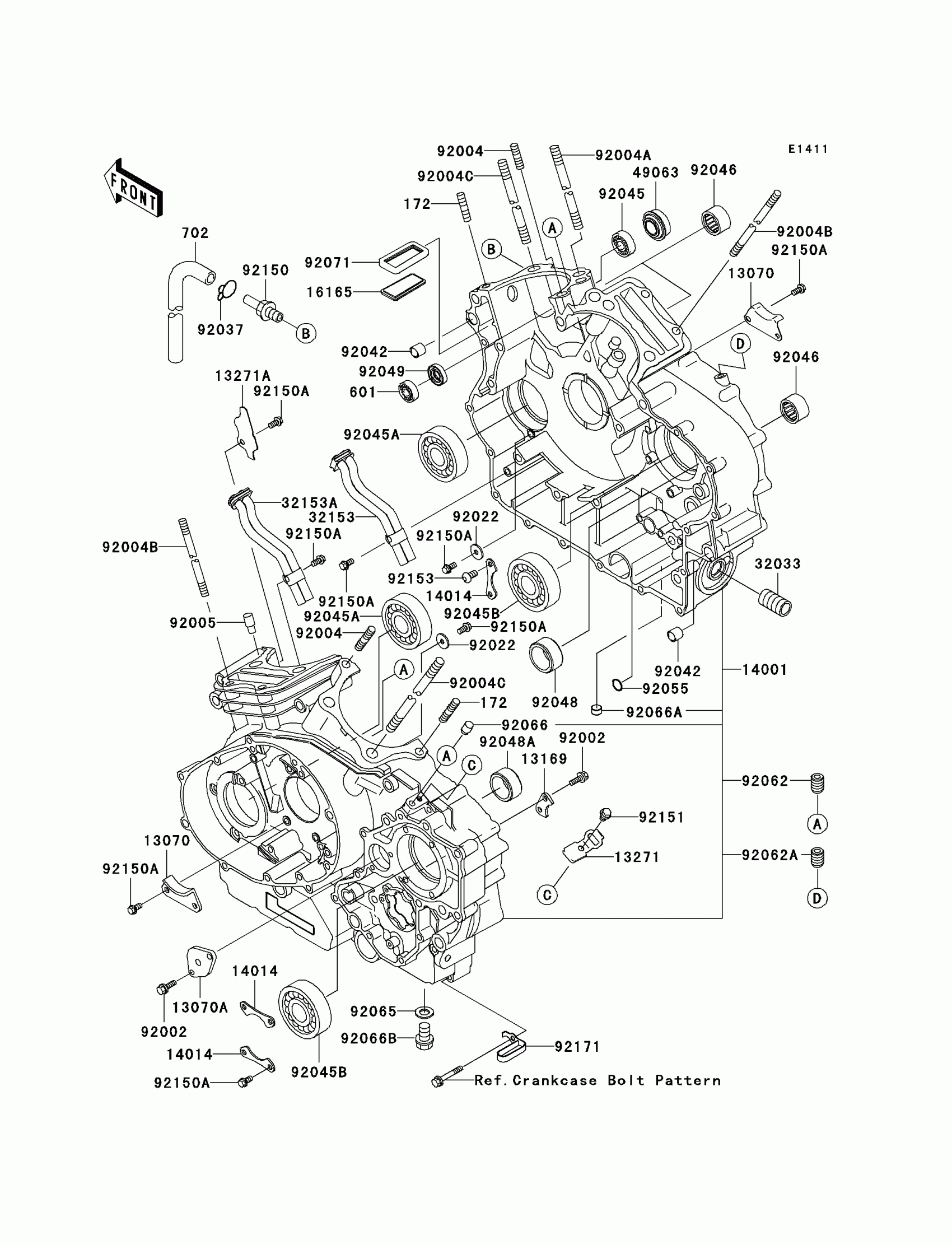

2005 Kawasaki Vulcan 1600 Mean Streak Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,CAM CHAIN

13070-1168

1
Out of stock

13070A

GUIDE

13070-1372

1
Out of stock

13169

PLATE,GEAR CHANGE DRUM

13169-014

1
Out of stock

13271

PLATE

13271-0210

1
Out of stock

13271A

PLATE

13271-1727

1
Out of stock

14001

SET-CRANKCASE

14001-5394

1
Out of stock

14014

PLATE-POSITION

14014-1084

1
Out of stock

16165

SEPARATOR

16165-1058

1
Out of stock

32033

PIPE,OIL FILTER

32033-1535

1
Out of stock

32153

PIPE,RH CRANKCASE

32153-1262

1
Out of stock

32153A

PIPE,LH CRANKCASE

32153-1263

1
Out of stock

49063

SEAL-MECHANICAL

49063-1057

1
Out of stock

92002

BOLT,6X16

92002-1439

1
Out of stock

92004

STUD,8X25

92004-0011

1
Out of stock

92004A

STUD,8X231

92004-1174

1
Out of stock

92004B

STUD,12X250

92004-1225

1
Out of stock

92004C

STUD,12X250

92004-1240

1
Out of stock

92005

FITTING

92005-1155

1
Out of stock

92022

WASHER,6X19.5X2

92022-1517

1
Out of stock

92037

CLAMP

92037-1835

1
Out of stock

92042

PIN,DOWEL,11X14X12.5

92042-028

1
Out of stock

92045

BEARING-BALL,6001JRXLLU/5K

92045-1151

1
Out of stock

92045A

BEARING-BALL,63/28

92045-1189

1
Out of stock

92045B

BEARING-BALL,6306SH2

92045-1190

1
Out of stock

92046

BEARING-NEEDLE,HK1212V11

92046-1292

1
Out of stock

92048

RACE

92048-1103

1
Out of stock

92048A

RACE

92048-1113

1
Out of stock

92049

SEAL-OIL,SC 12X22X5

92049-1228

1
Out of stock

92055

RING-O,13.2X2.4

92055-1373

1
Out of stock

92062

NOZZLE,6X8,GREEN

92062-1078

1
Out of stock

92062A

NOZZLE

92062-1089

1
Out of stock

92065

GASKET,12X22X2

92065-097

1
Out of stock

92066

PLUG,OIL LINE,7.2X8

92066-1012

1
Out of stock

92066A

PLUG

92066-1110

1
Out of stock

92066B

PLUG,OIL DRAIN,12X15

92066-1174

1
Out of stock

92071

GROMMET,SEPARATOR

92071-1269

1
Out of stock

92150

BOLT

92150-1161

1
Out of stock

92150A

BOLT,6X12

92150-1868

1
Out of stock

92151

BOLT,6X8

92151-1416

1
Out of stock

92153

BOLT,6X12

92153-0344

1
Out of stock

172

BOLT-STUD,8X25

172G0825

1
Out of stock

601

BEARING-BALL

601A6001

1
Out of stock

702

TUBE-RUBBER,4X330

702A04330

1
Out of stock

92171

CLAMP

92171-1273

1
Out of stock
