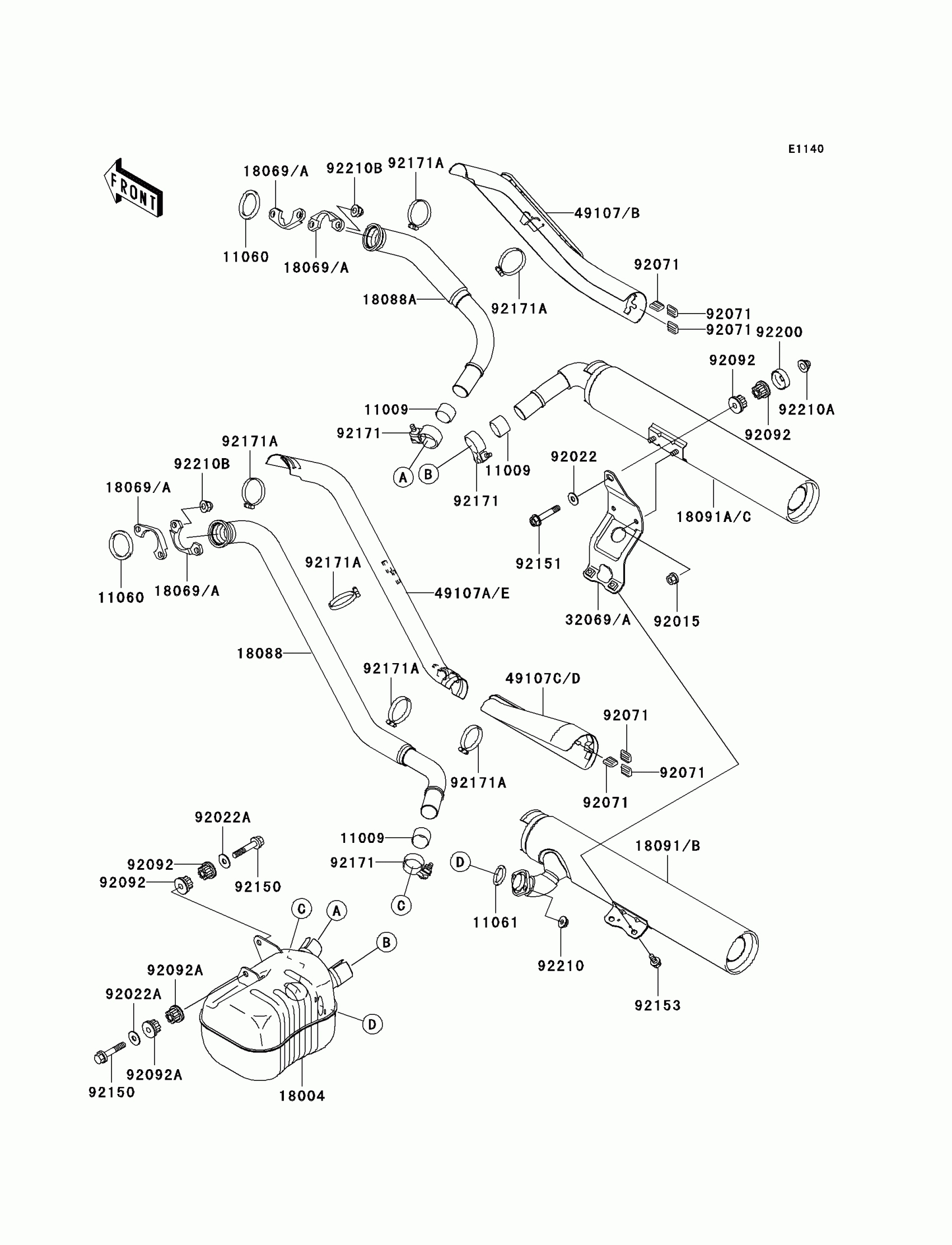

Kawasaki Vulcan® 1600 Mean Streak® Muffler(s) Diagram

#

Description
Price

11009

GASKET,EXHAUST MANIFOLD

11009-1668

$31.85

11060

GASKET,EXHAUST PIPE

11060-1119

$9.58

11061

GASKET,EXHAUST PIPE

11061-1069

$14.32

18004

CHAMBER-PREMUFFLER

18004-0003

$1,135.97

18088

PIPE-EXHAUST,FR

18088-1130

$470.62

18088A

PIPE-EXHAUST,RR

18088-1131

$470.62

32069A

BRACKET-MUFFLER

32069-0308

$42.53

92015

NUT,8MM

92015-1936

$5.24

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92022A

WASHER,10.5X30X2.3,BLACK

92022-1302

$7.24

92071

GROMMET

92071-1270

$7.22

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$17.44

92092A

BUSHING-RUBBER

92092-1081

$24.82

92150

BOLT,10X55

92150-1749

$7.69

92151

BOLT,FLANGED,10X57

92151-1332

$7.29

92153

BOLT,FLANGED,8X14

92153-0387

$2.97

92171

CLAMP

92171-0084

$27.31

92171A

CLAMP

92171-0137

$11.75

92200

WASHER,10.5X36X2

92200-1664

$14.45

92210

NUT,8MM

92210-0076

$5.48

92210A

NUT,CAP,10MM

92210-1121

$4.22

92210B

NUT,CAP,8MM

92210-1132

$4.18

18069

HOLDER-EXHAUST PIPE

18069-0025

$38.54

18069A

HOLDER-EXHAUST PIPE

18069-1161

$35.53

18091

BODY-COMP-MUFFLER,LWR

18091-0070

$556.80

18091A

BODY-COMP-MUFFLER

18091-0145

$579.28

18091B

BODY-COMP-MUFFLER,LWR

18091-0391

$505.76

18091C

BODY-COMP-MUFFLER

18091-0392

$505.76

49107

COVER-EXHAUST PIPE,RR

49107-0023

$294.94

49107A

COVER-EXHAUST PIPE,FR

49107-0094

$206.25

49107B

COVER-EXHAUST PIPE,RR

49107-0096

$299.57

49107C

COVER-EXHAUST PIPE

49107-0103

$171.59

49107D

COVER-EXHAUST PIPE

49107-1202

$188.90

49107E

COVER-EXHAUST PIPE,FR

49107-1216

$228.06
