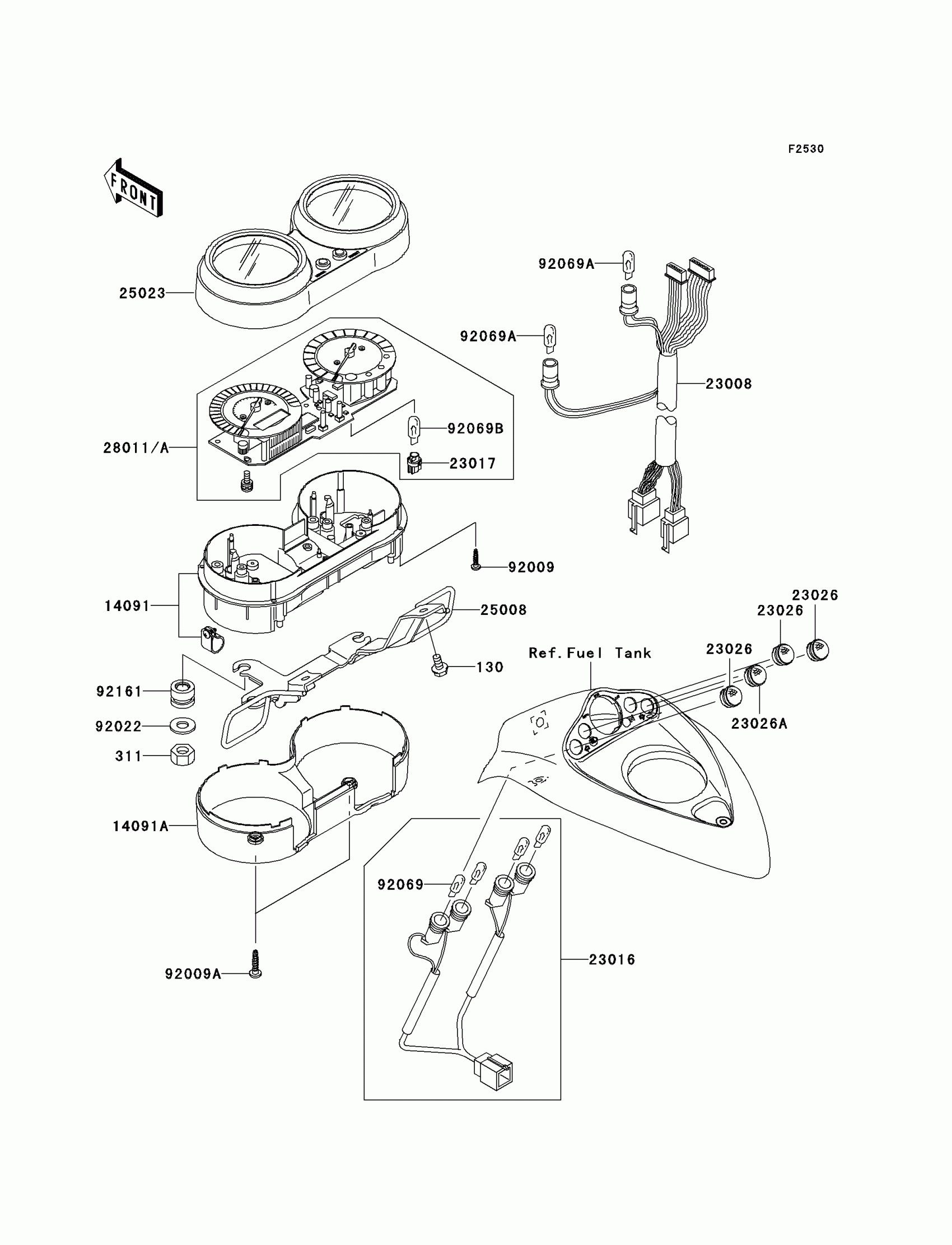

Kawasaki Vulcan® 1600 Mean Streak® Meter(s) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

$2.19

311

NUT-HEX

311B0500

$0.47

14091A

COVER,METER HOUSING

14091-1370

$145.59

23008

SOCKET-ASSY,METER

23008-1655

$186.22

23016

LAMP-ASSY

23016-1192

$71.35

23017

SOCKET

23017-1064

$5.95

23026

LENS,GREEN

23026-1171

$6.46

23026A

LENS,BLUE

23026-1172

$6.36

25008

BRACKET-METER

25008-1230

$76.06

25023

COVER-METER CASE,UPP

25023-1261

$185.63

92009

SCREW,TAPPING,3X14

92009-1592

$3.69

92009A

SCREW,TAPPING,4X16

92009-1601

$3.24

92022

WASHER,5.2X16X1.2

92022-263

$1.66

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92069A

BULB,12V 1.7W,T10

92069-1059

$4.96

92069B

BULB,14V 3W,T6.5

92069-1068

$5.00

92161

DAMPER,METER BRACKET

92161-1247

$6.15

14091

COVER,METER,LWR

14091-0676

$163.97

14091B

COVER,METER,LWR

14091-1371

$165.46

28011

METER,SPEED&TACHO,MPH

28011-1224

$932.63

28011A

METER,SPEED&TACHO,KPH

28011-1225

Unavailable
