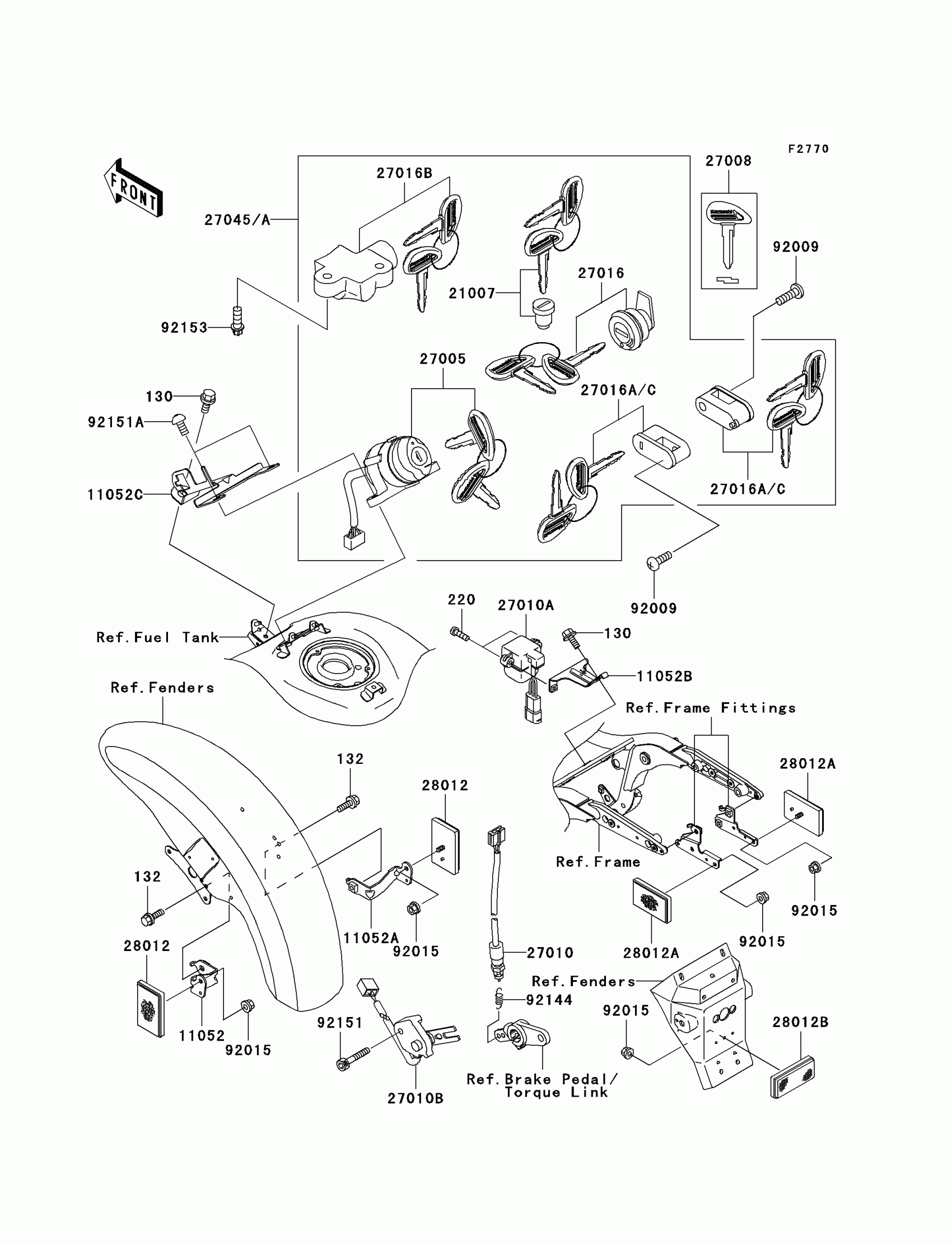

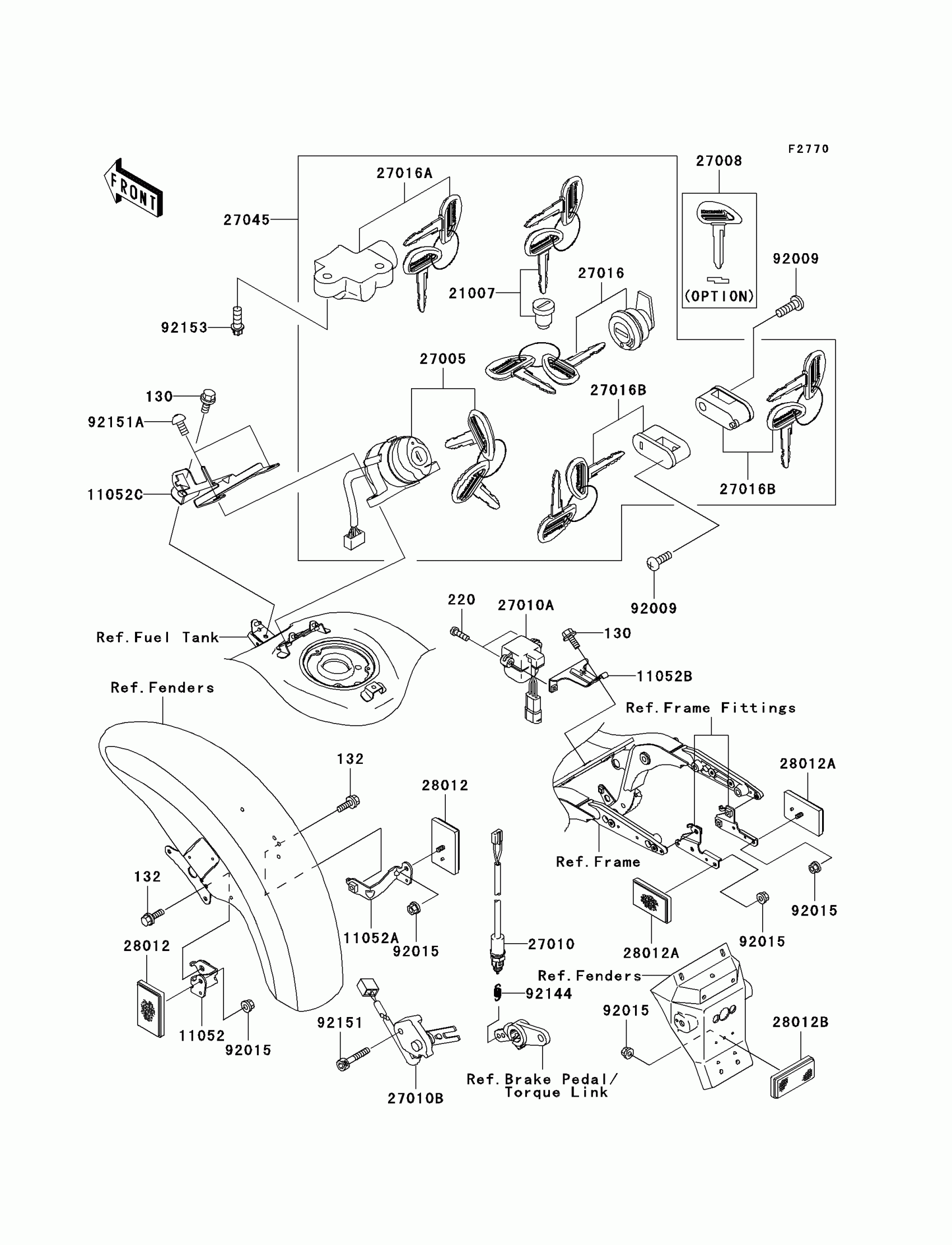

Kawasaki Vulcan® 1600 Mean Streak® Ignition Switch/Locks/Reflectors Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BB0610

$2.49

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

220

SCREW-PAN-CROS,4X20

220AB0420

$1.01

11052

BRACKET,REFLECTOR,FR,LH

11052-1284

$14.45

11052A

BRACKET,REFLECTOR,FR,RH

11052-1285

$14.45

11052B

BRACKET,DOWN SENSOR

11052-1302

$17.37

11052C

BRACKET,IGNITION SWITCH

11052-1494

$18.49

21007

ROTOR,LOCK,TANK CAP

21007-5049

$59.11

27005

SWITCH-ASSY-IGNITION

27005-0001

$195.07

27008

KEY-LOCK,BLANK

27008-1211

$31.78

27010

SWITCH,REAR BRAKE

27010-1412

$36.58

27010A

SWITCH,DOWN SENSOR

27010-1416

Unavailable

27010B

SWITCH,SIDE STAND

27010-1470

$70.27

27016

LOCK-ASSY,LID

27016-5279

$73.22

27016A

LOCK-ASSY,STEERING

27016-5298

$111.26

27016B

LOCK-ASSY,HELMET

27016-5317

$67.81

27045

SWITCH-ASSY

27045-5248

$540.48

28012

REFLECTOR-REFLEX,FR

28012-1009

$26.23

28012A

REFLECTOR-REFLEX,RR

28012-1051

$26.23

28012B

REFLECTOR-REFLEX

28012-1077

$23.25

92009

SCREW,5X12

92009-1296

$3.92

92015

NUT,FLANGED,5MM

92015-1656

$3.21

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$5.46

92151

BOLT,SOCKET,6X35

92151-1390

$2.46

92151A

BOLT,SOCKET,6X16

92151-1751

$2.46

92153

BOLT,TORX,8X22

92153-1273

$5.79
