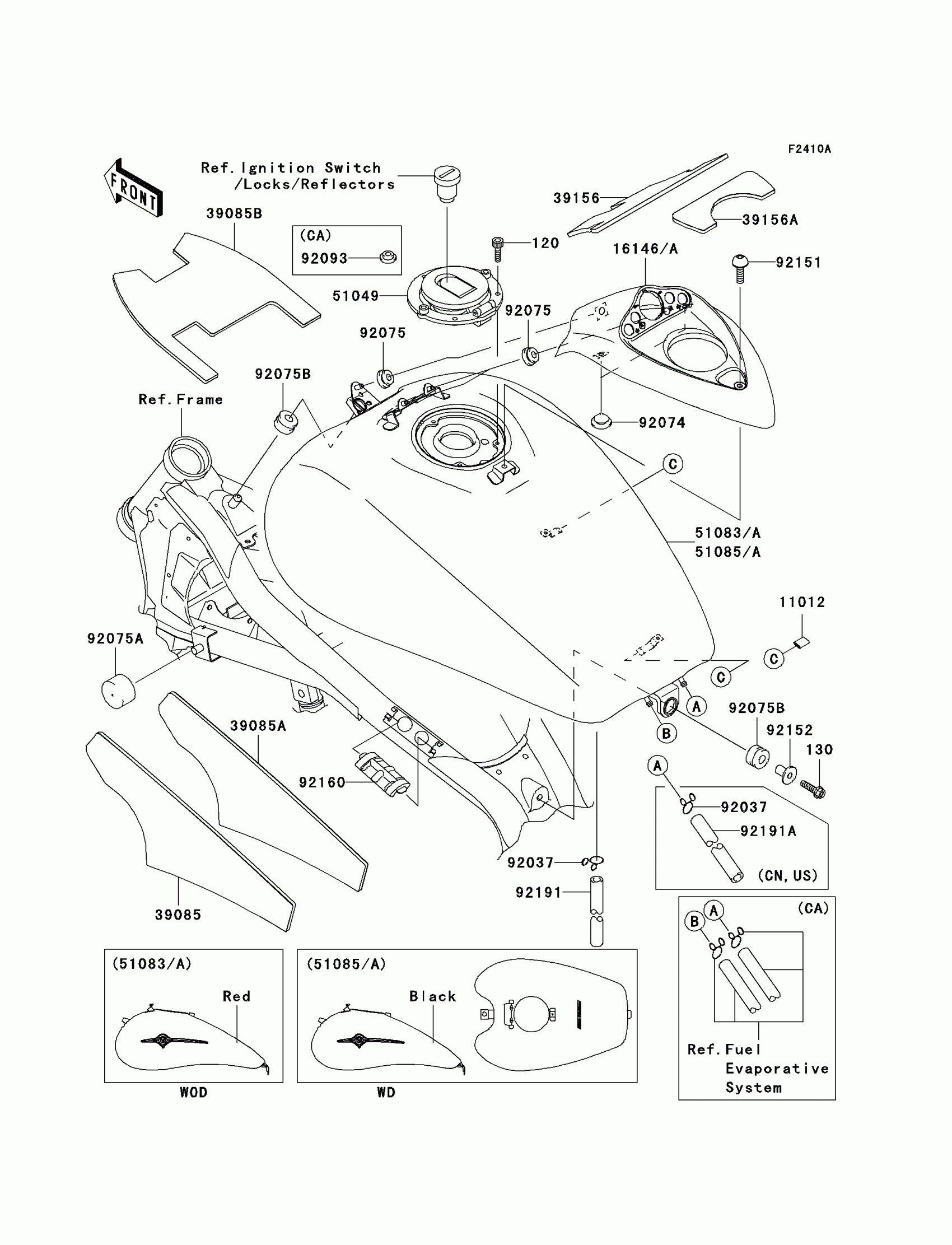

Kawasaki Vulcan® 1600 Mean Streak® Fuel Tank(5/5)(B8F/B8FA) Diagram

Description

Price

11012

CAP

11012-1725

$4.37

39085

PAD-TANK,FUEL TANK,LH

39085-1065

$68.11

39085A

PAD-TANK,FUEL TANK,RH

39085-1066

$68.11

39085B

PAD-TANK,FUEL TANK,CNT

39085-1067

$45.18

39156

PAD,FUEL TANK COVER,FR

39156-1700

$41.55

39156A

PAD,FUEL TANK COVER,RR

39156-1701

$33.68

51049

CAP-TANK,FUEL

51049-0019

$126.77

92074

PLUG,7X2

92074-028

$4.26

92075

DAMPER,6X16X7

92075-1011

$7.33

92075A

DAMPER,FUEL TANK

92075-125

$6.22

92075B

DAMPER

92075-1736

$6.57

92151

BOLT,SOCKET,6X12

92151-1940

$3.74

92152

COLLAR

92152-1393

$8.54

92160

DAMPER,FUEL TANK

92160-1751

$17.60

92191

TUBE,DRAIN

92191-1272

$24.06

120

BOLT-SOCKET,5X12

120S0512

$1.71

130

BOLT-FLANGED,8X30

130H0830

$1.92

16146

COVER-ASSY,FUEL TANK

16146-0006

$159.58

16146A

COVER-ASSY,FUEL TANK,M.D,BLACK

16146-0034-17K

$174.20

51083

TANK-COMP-FUEL,C.F.RED

51083-5351-816

$1,634.77

51083A

TANK-COMP-FUEL,C.F.RED

51083-5352-816

$1,634.77

51085

TANK-COMP-FUEL,M.D,BLACK

51085-5306-17K

$1,879.94

92037

CLAMP,TUBE

92037-147

$7.34

92037

CLAMP,TUBE

92037-147

$7.34

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92191A

TUBE,5X10X650

92191-1529

$14.39
